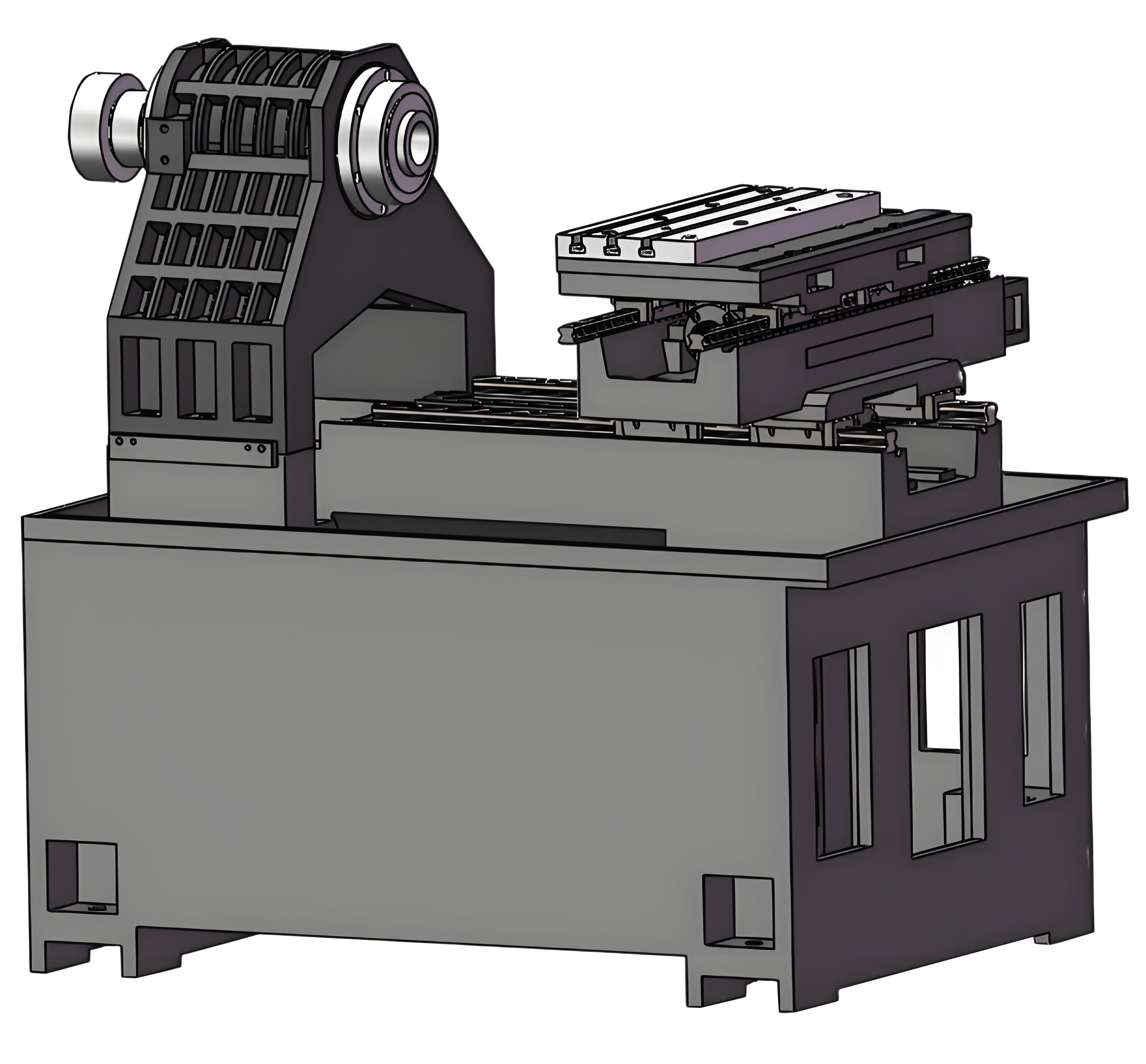

| ● Casting Material Machine bed is constructed with HT300 grade cast iron as a monolithic casting, processed through vibration aging and double tempering treatments to eliminate residual stresses. This ensures exceptional dimensional stability and long-term durability, guaranteeing consistent machining accuracy during extended operation.
The machine tool's structural design features a monoblock bed with a low center of gravity. Finite Element Analysis (FEM) is employed to optimize the geometry and layout of reinforcing ribs in the cast components, maximizing bed rigidity. This configuration ensures superior performance in heavy-duty cutting operations while extending tool service life. |
Targeted Solution for Precision Machining Professionals

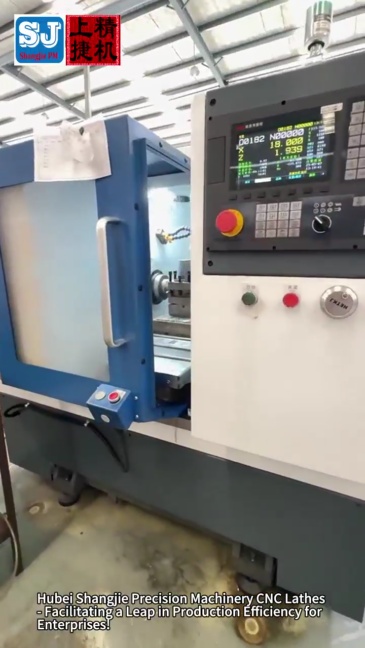

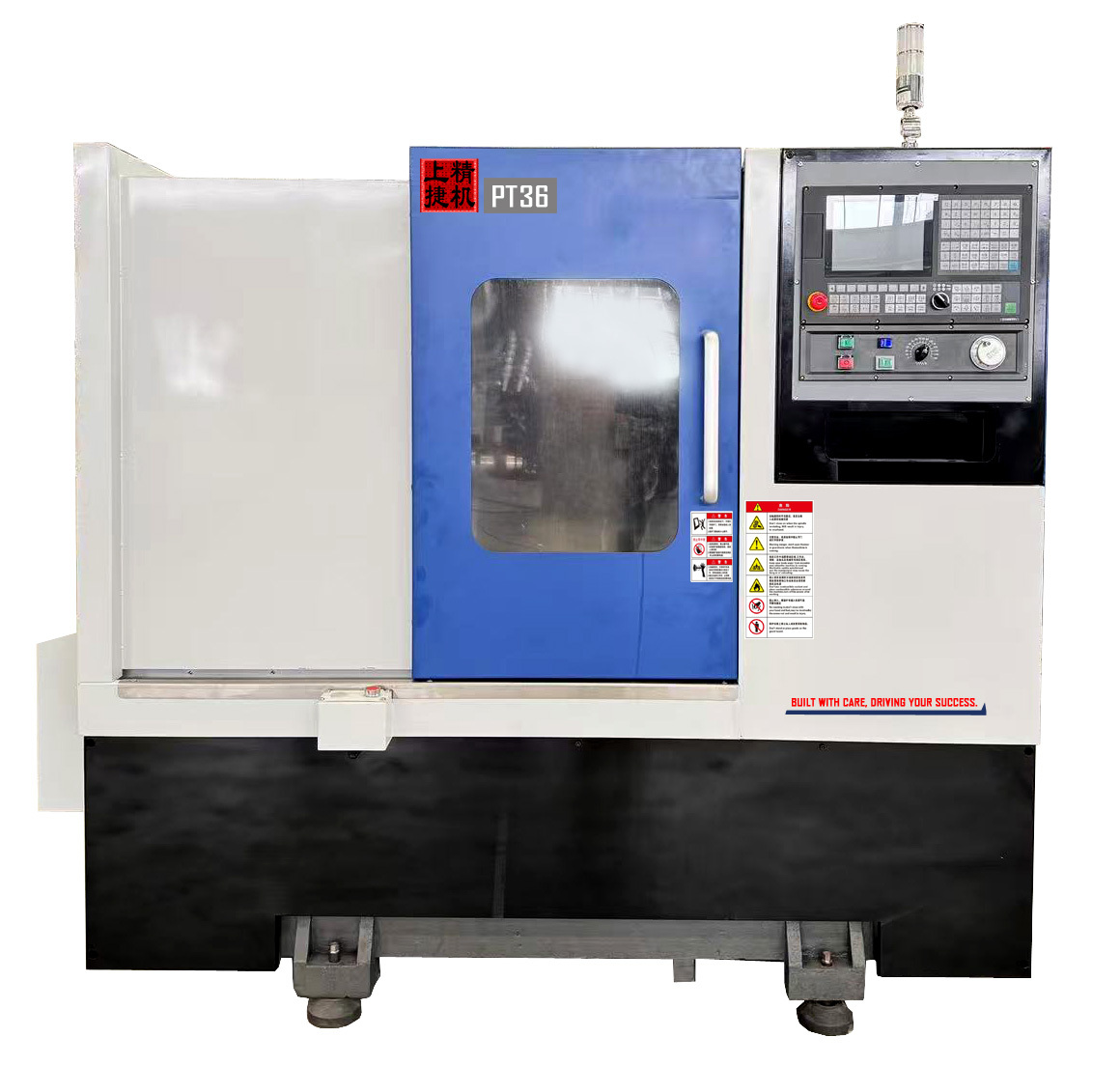

The PT32 model is engineered to serve manufacturing professionals requiring a compact yet powerful cnc turning center with a 410 mm swing diameter. It is designed specifically for users needing high rigidity and reliability in complex turning tasks, including small-to-mid-sized part production and prototype development. Its modular configuration supports custom tooling and automation setups, making it a viable choice for shops integrating advanced cnc turning and milling center workflows. This solution fits well within industrial environments requiring space-efficient equipment while maintaining machining excellence.
Engineering Excellence in Machine Structure and Motion Control
Built on a monoblock HT300 cast-iron bed with Finite Element Analysis-optimized ribs, the PT32 ensures maximum rigidity and stability for precision cuts. Its spindle features an A2-4 nose with a 4 kW motor and a 38 mm bore capable of 4000 rpm, complemented by X and Z axes travels of 300 mm and 270 mm respectively. Rapid feed speeds reach 25 m/min on both axes, supporting efficient cycle times. The machine also provides flexible workholding options including pneumatic, hydraulic, and spring collet clamping, alongside a 5” manual chuck. Expandable modular power heads enable integration of milling, drilling, and tapping functions, effectively converting it into a versatile cnc horizontal turning center.
Application Versatility Across High-Precision Manufacturing Sectors
The PT32 is well-suited for industries such as automotive components, aerospace prototyping, and precision medical device manufacturing, where strict tolerances and repetitive accuracy are mandatory. Its turn-mill capabilities with servo turrets or multiple power heads allow complex multi-operation parts to be processed in a single setup, significantly reducing overhead and turnaround time. This compact cnc turning center supports efficient integration with automated assembly lines and CAD/CAM programming systems, delivering operational reliability and enhanced throughput in production environments focused on lean manufacturing principles.
■ Specifications
| Machine Type | PT32 |
| Max. swing diameter | 410mm |
| Max. machining diameter on the saddle | 120mm |
| Max. bar through diameter | 28mm |
| Spindle nose | A2-4 |
| Spindle motor power | 4KW |
| Spindle bore | 38mm |
| Max. spindle speed | 4000r/min |
| X axis | 300mm |
| Z axis | 270mm |
| X axis rapid feed speed | 25m/min |
| Z axis rapid feed speed | 25m/min |
| X axis Max. torque of motor | 18N.m |
| Z axis Max. torque of motor | 18N.m |
| Pneumatic clamping | 后拉式弹簧筒夹Spring collet |
| Manual chuck | 5” |
| Hydraulic clamping Chuck Size | 5” |
4-station electric knife holder OD tool size |
16x16mm |
| Machine size (L x W x H) | 1530x1320x1580mm |
| Standard weight | 1430KG |
Product Advantages
Structural and Design Excellence in CNC Machine Architecture
The PT32 features a robust monoblock HT300 cast-iron bed with a Finite Element Analysis-optimized rib layout, delivering superior rigidity essential for high-precision machining and sustained heavy-duty operation. Its modular design allows seamless adaptation from basic turning to comprehensive turn-mill configurations with multiple power heads, broadening functional range without requiring large-scale machine investment. Compact footprint dimensions (1530x1320x1580 mm) facilitate installation flexibility and optimized shop floor utilization, characteristic advantages for modern industrial applications involving cnc turning and milling center solutions.
Enhanced Performance and Usability for Efficient Production
Performance-wise, the PT32's 4 kW spindle motor paired with a 38 mm bore and up to 4000 rpm speeds accelerates cycle times while maintaining tight machining tolerances. The rapid feed speed of 25 m/min along both axes ensures swift traverses, boosting productivity. Workholding options—pneumatic, hydraulic, and spring collets—enable precise and repeatable setups, minimizing downtime between runs. User-centric features including an intuitive interface and modular expandability make it a reliable choice for shops leveraging cnc horizontal turning center processes within automated and integrated manufacturing systems.
■ Expandable functions of machine tools
Customized power head configurations can be added according to the customer's part processing requirements, enabling drilling, milling, tapping, and other feature machining operations.
The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
