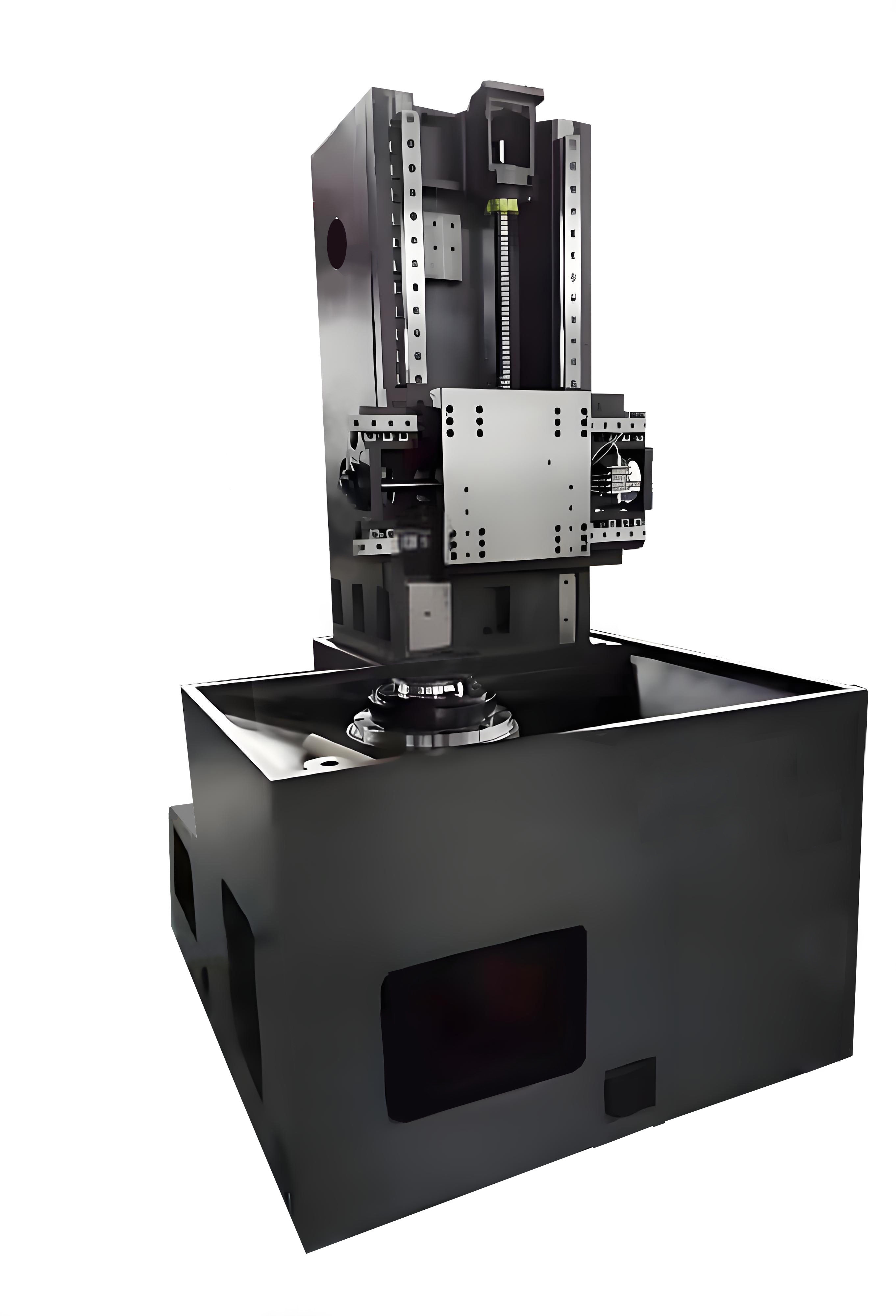

| VT series machine tools are professionally designed and manufactured with the main focus on low center of gravity, anti-twist, heavy cutting, and high material removal efficiency. They adopt a box-type base and widened and thickened Z-axis columns, ensuring excellent rigidity of the entire machine. |
Machine castings are made of HT300 high-grade material and undergo vibration stress relief and secondary tempering processes to eliminate internal stress. They feature high strength, strong resistance to deformation, and excellent shock absorption capacity, ensuring that the machine tool maintains stable precision over long-term use. |
 |
■ Specifications
| Machine Type | VT600 |
| 最大回转直径 Max. swing diameter | 650mm |
| 最大车削直径 Max. turning diameter | 600mm |
| 最大车削高度 Max. turning height | 520mm |
| 主轴端部形式 Spindle nose | A2-8 |
| 主轴电机功率 Spindle motor power | 15/18.5 KW |
| 主轴最高转速 Max. spindle speed | 2500r/min |
| 卡盘尺寸 Chuck Size | 12” / 15”(Optional) |
| X轴行程 X axis | -30,+320mm |
| Z轴行程 Z axis | 550mm |
| X轴快速进给速度 X axis rapid feed speed | 24m/min |
| Z轴快速进给速度 Z axis rapid feed speed | 24m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 69N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 85.2N.m |
| 伺服刀塔 Servo Tool Turret | 8 Tools |
| 刀方规格 OD tool size | 25x25mm |
| 镗孔刀直径 Boring tool diameter | ￠40 mm |
| 动力刀具规格 Power turret tool size | ER32 |
| 气源压力 Air source pressure | 0.5-0.8MPa |
| Machine size (L x W x H) | 1550x2200x2500mm |
| Standard weight | 5800KG |
■ Expandable functions of machine tools
|
Turn-Mill The machine can be equipped with a servo power tool turret as required, and various types of power heads can be configured to achieve turning and milling compound functions, solve the processing requirements of complex parts, and improve processing efficiency. |
 |
|
The installation surface adopts manual scraping process, which enables the machine tool to maintain its initial accuracy for a long time. It also enhances the rigidity of the machine tool, as well as its anti-vibration performance and stability during processing.
|
 |
|
