XT04W-250/450

Functional Specialization and Target Users

The XT04W-250/450 serves as a robust solution tailored for manufacturers requiring high-rigidity cnc turning manufacturers solutions, especially in the automotive and heavy machinery sectors. Its slant bed configuration and heavy cutting capacity position this cnc lathe for processing short shafts and disc parts with precision and stability. Ideal for engineering teams focused on production consistency, this model supports advanced machining setups and programmable tailstock configurations, enabling seamless integration into modern cnc manufacturing workflows that demand both accuracy and repeatability.

Technical Architecture and Measurable Specifications

This model integrates a reinforced integral bed with optimized ribbing based on finite element analysis to withstand heavy cutting loads while maintaining minimal vibration. It offers up to 6000 r/min spindle speed, a max swing diameter of 500 mm, and travel capacities up to 580 mm on the Z-axis. The 8-station servo turret enables multiple tool operations without interrupting cycle time. Standard features include a 6-inch hydraulic chuck and programmable tailstock, all housed within a compact footprint optimized for factory floor space. These precise technical specifications support demanding machining cycles typical of complex cnc machine factory environments.

Applications in Industry and Operational Value

The XT04W-250/450 proves critical in precision turning applications where tight dimensional tolerances and tool longevity are paramount. It excels in automotive parts production, aerospace components, and disc-shaped tooling fabrication where combined turning and milling operations are required. The optional Turn-Mill function enhances process flexibility, enabling manufacturers to consolidate machining steps and reduce setup times. Its stable base and low center of gravity ensure consistent performance under heavy loads, adding measurable value by lowering scrap rates and improving throughput in multi-shift cnc machining center for sale environments.

Product Advantages

Designed for Structural Durability and Modular Integration

The slant bed with a 45° inclined saddle is engineered to absorb both horizontal and vertical cutting forces efficiently, significantly reducing tool deflection. The widened and reinforced integral bed leverages FEM-optimized ribs that provide superior structural strength, surpassing conventional lathe constructions. This structure contributes to higher rigidity essential for heavy-duty machining tasks. Additionally, the modular design featuring an 8-station servo tool turret offers easy tooling changes and supports both turning and mill functions. These elements make the unit a reliable asset for cnc machine dealers seeking machines that balance precision and robustness.

Enhanced User Performance and Operational Efficiency

Operators benefit from rapid feed rates up to 25 m/min on both axes, combined with a responsive servo turret that minimizes downtime during tool changes. The hydraulic chuck and programmable tailstock enhance workpiece stability and facilitate quick setup adjustments. Together with the compact machine footprint, these features optimize floor space utilization and workflow integration. The machine’s capability to maintain high spindle speeds while performing multi-axis operations provides consistent machining accuracy, ensuring cost-effectiveness and reduced cycle times for production teams specializing in cnc milling machine and lathe applications.

• Machine Characteristics

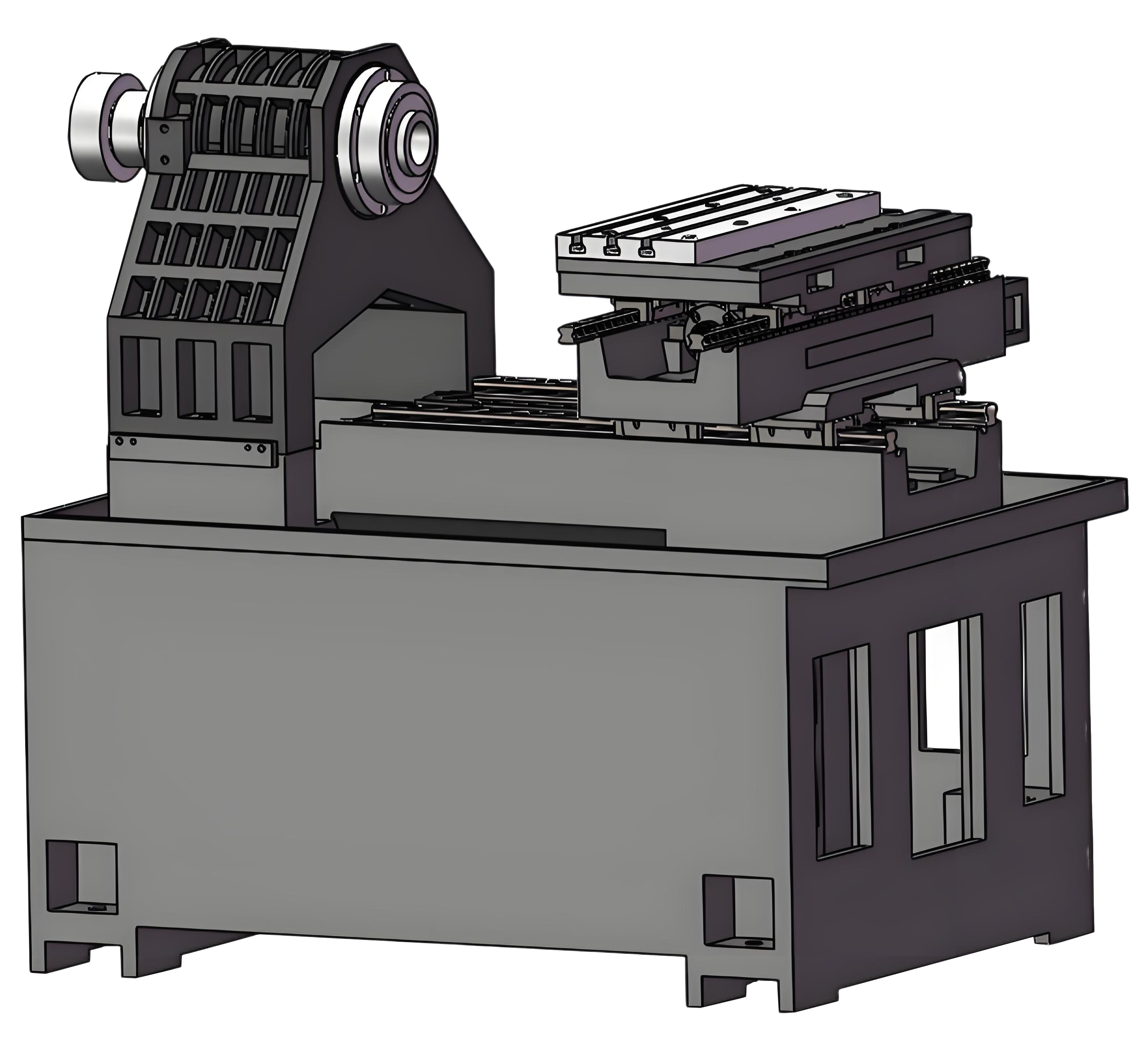

The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.

■  Specifications

■  Expandable functions of machine tools

• Turn-Mill

The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.

• Programmable Tailstock

The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.

Use Scenarios

Precision Turning in Automotive Component Manufacturing

In high-volume automotive component production environments, the demand for precision and repeatability is essential. The XT04W-250/450 operates efficiently in machining short shafts and disc-shaped parts, where the reinforced bed and high spindle speeds ensure minimal vibration and enhanced cutting accuracy. Its versatility, including an 8-station servo turret, supports complex turning cycles required in the manufacture of transmission and engine components. Integration with existing production lines benefits from programmable tailstock features, facilitating rapid changeover and compliance with strict quality control measures typical in advanced cnc machine shops.

Multi-Process Integration for Tooling and Prototype Development

The optional Turn-Mill capability makes the XT04W-250/450 an excellent choice for tooling manufacturers and R&D labs requiring both turning and milling on a single platform. Its stable construction and high accuracy reduce the need for multiple machine setups, streamlining workflow in prototype development and small-lot production. This technical advantage enhances the ability of vertical machine suppliers and vertical machining center for sale operators to deliver quick turnaround for customized tooling solutions. The lathe’s capabilities support on-machine verification processes that improve setup precision and overall production efficiency.

FAQ

What types of materials can the XT04W-250/450 process effectively?

Our XT04W-250/450 is designed for heavy cutting of disc-shaped and short shaft parts, typically made from metals used in the auto parts industry. It performs precise turning on materials requiring high rigidity, making it suitable for steel alloys, aluminum, and other common machining metals in CNC manufacturing.

Can you customize the XT04W-250/450 for specific production needs?

Yes, we offer optional expansions such as Turn-Mill capability with a servo turret and programmable tailstock to extend the machine’s versatility. Our flexibility in configuration allows adaptation to various production requirements, making it a reliable choice among cnc turning manufacturers.

Do you provide installation and technical support after purchase?

We provide a one-year warranty along with 24-hour lifetime technical support. Our service team assists with installation, commissioning, and on-machine debugging to ensure that your cnc machining center for sale operates smoothly and maintains long-term precision.

What are the typical shipping and payment terms for orders?

When quoting, we confirm the trading method such as FOB, CIF, or CNF according to your needs. For mass production, we usually request a 30% advance payment and settle the balance against the bill of lading. We accept T/T and L/C payment methods, providing flexibility for international buyers and cnc machine dealers.
