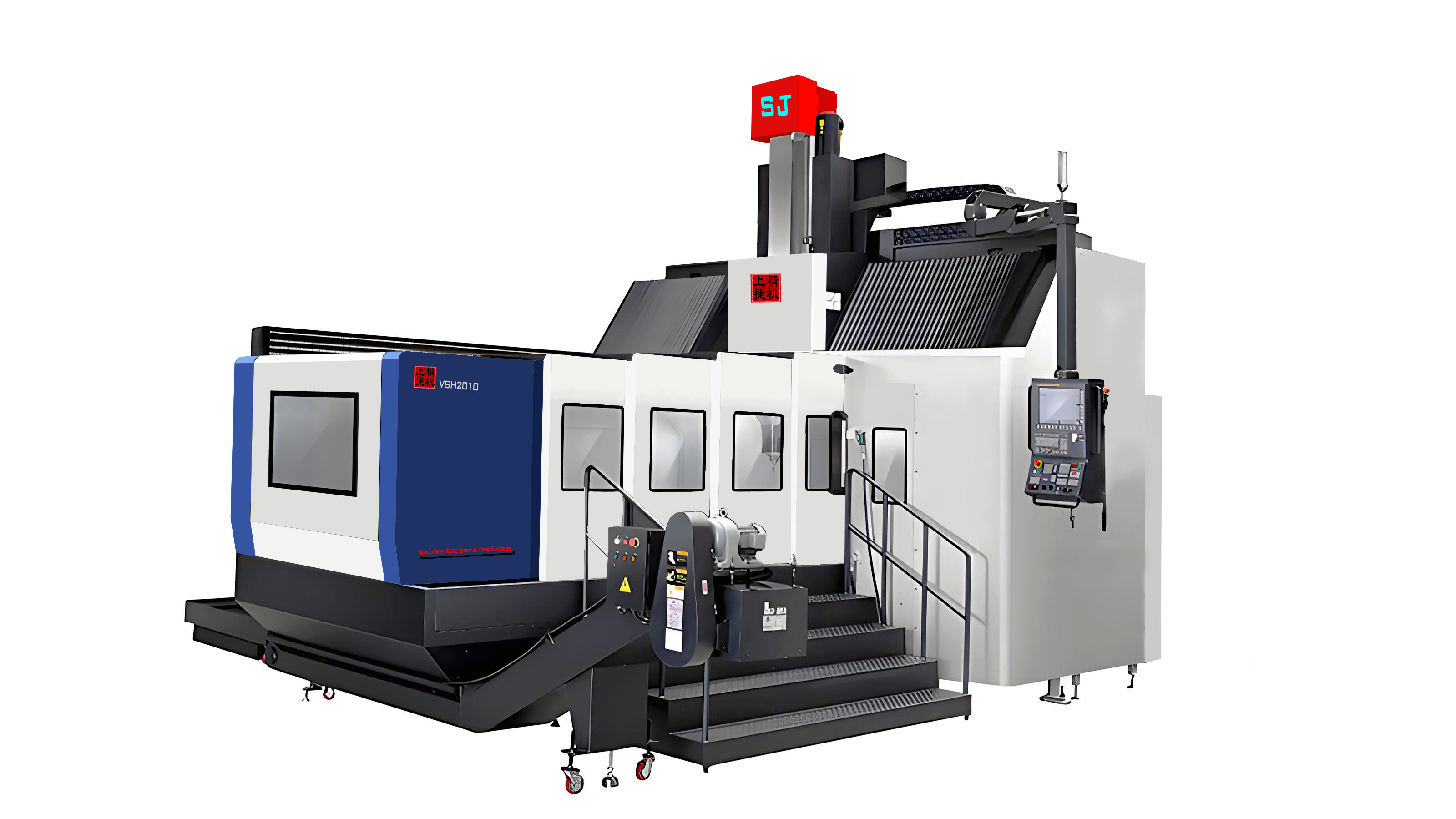

GS1610

Optimized Gantry Design for Heavy-Duty Manufacturing

The GS1610 gantry machining center is engineered for manufacturers specializing in large, heavy workpieces requiring exceptional stability and high precision. Designed around a reinforced gantry framework, it targets industries involved in machining oversized components where traditional mill or lathe setups fall short. This machine is an ideal solution from cnc machine dealers and factory lines aiming to integrate a robust system capable of roughing and finishing in one setup. Its user base often includes aerospace, automotive, and heavy equipment manufacturers seeking an upgrade in throughput and machining capacity through advanced cnc manufacturing platforms.

Technical Precision Enabled by Enhanced Structural Features

This model incorporates a finite element method (FEM) optimized bed and specially reinforced X-axis and Y-axis components to mitigate deformation and improve rigidity. The four-track Z-axis ram system minimizes deflection and creep, ensuring high positional accuracy during extended operations. Industrial-grade linear precision guides deliver rapid traverse rates of up to 20 m/min on X and Y axes, supporting efficient material removal. The 1600x800 mm workbench accommodates large parts with a maximum load of 2500 kg, supported by a 24-tool disc-type magazine for automatic tool changes. Spindle options include BT50 taper alternatives with torque up to 85.2 N·m, reaching speeds of 6000 to 12000 rpm, making this a capable vertical machining center for sale and ideal for multi-axis milling solutions.

Broad Industry Applications with High Operational Efficiency

The GS1610 enhances productivity for sectors requiring large-scale milling, such as mold making, structural component fabrication, and automotive frame machining. It supports heavy fixtures and thick walled castings with consistent surface finish and dimensional accuracy, reducing setup changes and manual handling risk. The system’s flexibility allows integration into complex production lines due to CNC compatibility with FANUC, Siemens, and other major control systems. This CNC machine is suited for prototype verification, rework operations, and intricate finishing tasks, offering a compelling ROI for cnc mill users focused on repeatable quality and long-term operational reliability.

Product Advantages

Robust Structural Integrity and Modular CNC System Integration

The GS1610’s rigid gantry construction is optimized through finite element analysis, reinforcing the machine’s core structure for enhanced vibration resistance and dimensional stability. Key components like the X-axis base and Y-axis crossbeam receive additional structural enhancements to prevent deformation during heavy machining. Equipped with precision-grade linear guide rails and a four-track Z-axis ram, the system reduces mechanical wear and maintains consistent positioning accuracy. The modular tool magazine and high-torque spindle make it adaptable for various machining tasks, reflecting the standards expected from a premium cnc machine factory. Additionally, the inclusion of customizable CNC system options, including FANUC and Mitsubishi, provides seamless integration into existing CNC manufacturing workflows.

High Productivity with Advanced Usability Features

The combination of high-speed tool change via the 24-tool disc magazine and rapid axis traverse speeds enhances machining cycle efficiency. Operators benefit from a sizeable work envelope accommodating up to 2500 kg, suitable for heavy structural or prototype parts. The machine supports automated processes, reducing downtime and operator intervention while maintaining precision. Its construction emphasizes ease of maintenance and long-term reliability, ensuring stable performance during continuous production runs common in industrial environments. This system exemplifies the value proposition offered by cnc lathe and cnc milling machine solutions focused on operational excellence and reduced total cost of ownership.

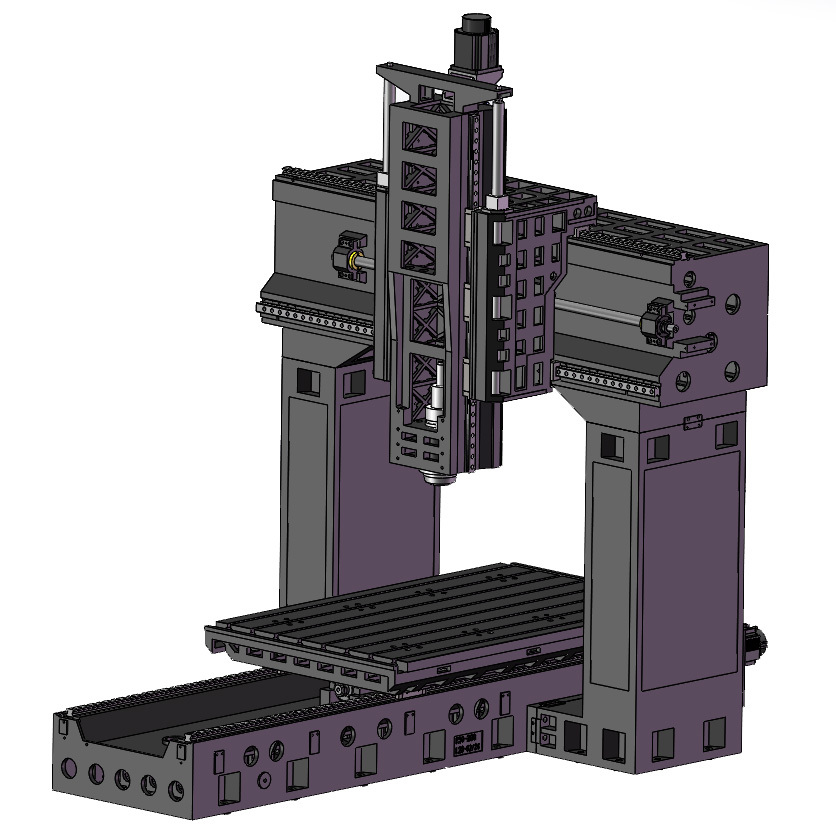

■   Machine Structure GS series gantry machining centers adopt a gantry structure, inheriting the strong rigidity, symmetrical structure and high stability of traditional gantry machines, while also taking into account the rapid movement capability of vertical machining centers, significantly enhancing the processing efficiency of large workpieces for customers. By applying the finite element analysis (FEM), the shape and position of the casting reinforcing ribs were optimized to achieve the optimal strength of the bed. Additionally, special reinforcing structures were designed for the X-axis base and Y-axis crossbeam to ensure the bed's stability and prevent deformation.

The four-track design of the Z-axis ram not only provides sufficient rigidity but also overcomes the low-speed crawling phenomenon and the defect of precision loss over time of the traditional hard rail.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide	THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw
High-quality tool clamping cylinder	NSK, SKF, FAG P4 grade imported angular contactpaired bearings	Precision high-rigidity coupling	Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine		Standard equipped with chain-typechip conveyor and small iron chip cart.

Use Scenarios

Machining Large Automotive and Aerospace Components

In the automotive and aerospace sectors, precise machining of oversized frames, structural components, and fixture tooling is critical. The GS1610 gantry machining center’s robust design allows it to handle large, heavy frames requiring high rigidity to maintain tight tolerances. It supports roughing and finishing in a single setup, minimizing handling errors and cycle times. Its integration with major CNC controls enables compatibility with production scheduling and quality control systems, ensuring compliance with industry-specific tolerances. This makes it an invaluable asset among cnc machine dealers servicing customers with demanding cnc manufacturing requirements for large-scale aluminum and steel parts.

Precision Mold and Tooling Manufacture in Heavy-Duty Workshops

In mold shops and tooling manufacturing environments, the GS1610 provides a stable platform for machining large-scale mold bases and injection tooling plates. The machine’s extensive workbench and 24-position tool magazine streamline operations by facilitating multi-tool processing sequences without manual replacement. Its precise Z-axis rigidity prevents dimensional drift during deep pocket milling and contouring, a common challenge with heavy castings. By integrating seamlessly into automated production cells supported by leading CNC systems, this equipment from a recognized vertical machine supplier enables higher throughput and superior mold accuracy, reducing rework and improving overall manufacturing efficiency.

FAQ

What types of materials can the GS1610 CNC machining center handle?

Our GS1610 gantry machining center is designed for large, heavy workpieces including aluminum, steel, thick-walled castings, and forgings. It supports precision milling and finishing, making it suitable for automotive frames, mold bases, and large structural components that require rigid and accurate machining.

Can you customize the CNC system on the GS1610 for different production environments?

Yes, we offer a wide variety of CNC systems for the GS1610, including FANUC, Siemens, SYNTEC, KND, and Mitsubishi. This flexibility allows you to integrate our CNC machining center for sale into your existing production line according to your operational preferences and control requirements.

Do you provide installation and commissioning support for your CNC machines?

We provide extensive technical support during installation and commissioning to ensure your grinding machine for sale or machining center operates efficiently from the start. Our team offers guidance on setup, calibration, and training to help you maximize machine performance and uptime.

What measures do you take to guarantee machine precision and durability?

Our machining centers, including the GS1610, use FEM-optimized beds and imported components like THK, PMI, HIWIN linear guides, ensuring rigidity and precision. All machine castings undergo tempering and natural aging to eliminate internal stresses, assuring long-term accuracy and reliable performance in demanding production environments.
