| GS series gantry machining centers adopt a gantry structure, inheriting the strong rigidity, symmetrical structure and high stability of traditional gantry machines, while also taking into account the rapid movement capability of vertical machining centers, significantly enhancing the processing efficiency of large workpieces for customers. |

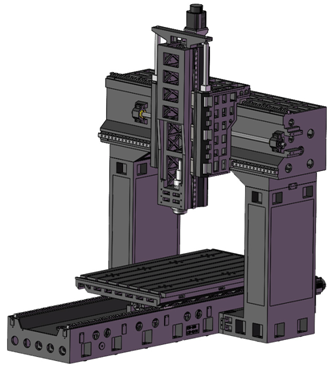

| ■ Machine Structure GS series gantry machining centers adopt a gantry structure, inheriting the strong rigidity, symmetrical structure and high stability of traditional gantry machines, while also taking into account the rapid movement capability of vertical machining centers, significantly enhancing the processing efficiency of large workpieces for customers. By applying the finite element analysis (FEM), the shape and position of the casting reinforcing ribs were optimized to achieve the optimal strength of the bed. Additionally, special reinforcing structures were designed for the X-axis base and Y-axis crossbeam to ensure the bed's stability and prevent deformation. |
 |
| The four-track design of the Z-axis ram not only provides sufficient rigidity but also overcomes the low-speed crawling phenomenon and the defect of precision loss over time of the traditional hard rail. |  |
■ Specifications
| Machine Type | GS2010 |
| 工作台尺寸Workbench size | 2000x800 mm |
| Workbench T-slot (number - size * pitch) | 5-22x160 mm |
| Max. load capacity of the workbench | 3500KG |
| X轴行程 X-axis travel distance | 2100mm |
| Y轴行程 Y-axis travel distance | 1000mm |
| Z轴行程 Z-axis travel distance | 800mm |
| 龙门有效宽度 Gantry Effective Width | 1080mm |
| 主轴端面到工作台面距离 Distance from the spindle face tothe worktable surface |
130-930 mm |
| 导轨形式 Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z快移速度 X,Y,Z fast movement speed | 20/20/15m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 85.2N.m |
| Y轴电机最大转矩 Y axis Max. torque of motor | 69N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 85.2N.m |
| 主轴最高转速 Max. spindle speed | 6000/12000 rpm |
| 主轴锥孔 Spindle taper hole | BT50 (BT40 Optional) |
| 主轴电机功率 Spindle motor power | 15/18 KW (※18.5/22 KW) |
| 刀库容量 Tool magazine capacity | Disc-Type 24Tools |
| 刀具最大重量 Max. weight of cutting tools | 8KG(BT40) / 15KG(BT50) |
| 气源压力 Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H) | 5300x2700x3400mm |
| Standard weight | 19000KG |
■ Machine Tool Configuration
CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi  |
High-quality spindle, imported bearings |

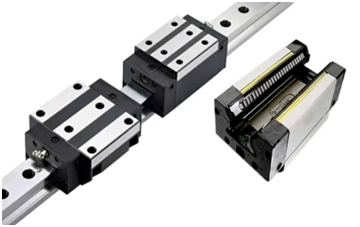

THK, PMI, HIWIN, HTPM 45、55 Precision Grade P roller-type linear guide |

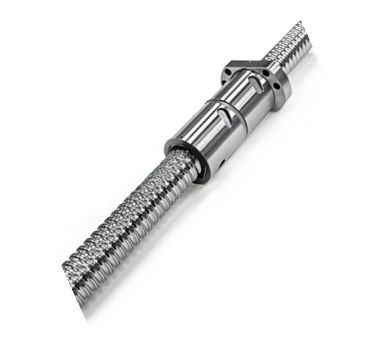

THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw |
High-quality tool clamping cylinder |
NSK, SKF, FAG P4 grade imported angular contactpaired bearings |
Precision high-rigidity coupling |
Imported high-torque synchronous belts |

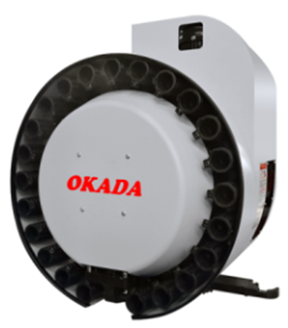

High-quality disc-type /Umbrella-type ATC Tool magazine  |

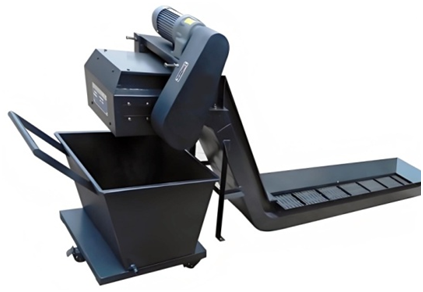

Standard equipped with chain-typechip conveyor and small iron chip cart. |
||
