GNC2010–GNC4025 - Precision Grinding Machine & Surface Grinding Machine

Functional Positioning for Large Workpiece Machining

The GNC2010–GNC4025 series is engineered for manufacturers requiring reliable, high-capacity CNC gantry drilling and milling solutions. Target users include engineering firms and production facilities managing large plates, turbine flanges, and structural components. By integrating with production lines that may already employ precision grinding machines, these gantry machines deliver consistent high-quality surface treatment. The fully CNC-controlled operation ensures minimal manual input, optimizing workflow stability for heavy-duty applications that demand accuracy and repeatability. Their design supports industrial-scale machining environments where precision and volume are critical.

Advanced Technical Features and Measurable Specifications

These machines feature a robust gantry framework with high rigidity spindles, supporting drilling diameters up to Φ90 mm and tapping up to M36, accommodating various heavy component sizes. Model configurations offer workbench dimensions ranging from 1600×1600 mm to 4000×2500 mm, enabling tailored fitment for specific parts. The center water filtration spindle is optimized for U-drill processes, enhancing cutting fluid delivery. Compatible with BT40 and BT50 spindle tapers and optional tool magazines, these machines provide seamless integration into automated production systems. Their compatibility with precision surface grinding machines ensures precise sequential finishing on large workpieces.

Industry Applications and Integration in Production Systems

The GNC series excels in aerospace, wind turbine manufacturing, and heavy machinery production where drilling, tapping, and milling of large plates and discs are routine. The machines facilitate in-house fabrication of high-precision components, significantly reducing reliance on subcontracting. Their substantial work envelope and rigid structure enable efficient processing of large turbine flanges and structural parts, aligning well with precision grinding machine manufacturers’ lines for finishing. This enhances production throughput while maintaining dimensional accuracy and surface quality essential for critical applications demanding advanced machining tolerances.

Customers can achieve efficient drilling, tapping and milling of large workpieces with relatively low equipment cost investment. The fully CNC operation without programming improves processing quality and efficiency, and reduces labor costs.

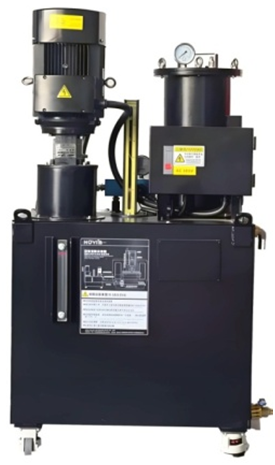

Standard equipped with a water filtration system at the center of the spindle, suitable for U-drill processing.

■  Specifications

Product Advantages

Structural and Design Innovations for Heavy-Duty Machining

The gantry construction prioritizes rigidity and stability to handle large, heavy workpieces without deformation, critical for precision surface grinding machine workflows. The modular spindle design, featuring center water filtration, enhances cooling and chip removal during U-drill operations. Machine components utilize high-grade materials and proprietary tempering processes for long-term dimensional stability. The availability of various model sizes affords scalability, enabling users to adapt system footprint and capacity according to evolving production needs. Integration-ready CNC controls ensure compatibility with existing precision grinding machine manufacturer systems and automation protocols.

Performance Enhancements and Operator Efficiency

Employing a fully CNC-operated interface, the units reduce manual programming errors and enable repeatable precision across large production batches. The system supports flexible tooling options, streamlining setup changes and minimizing downtime. Robust mechanical design contributes to vibration damping, which improves cutting accuracy and surface finish quality, complementing precision grinding machine processes downstream. Capable of achieving stable cycles at high-speed spindle rotation, these machines promote productivity improvements and reduce labor intensity, ultimately delivering measurable ROI for production systems requiring large-scale, high-precision manufacturing.

■  Machine Tool Configuration

CNC system: KND,SYNTEC,	High-quality spindle, imported bearings	PMI, HIWIN, HTPM  35、45 Precision Grade P roller-type linear guide	PMI, HIWIN C3 grade precision ground ball screw
High-quality tool clamping cylinder	NSK, SKF, FAG P4 grade imported angular contactpaired bearings	Precision high-rigidity coupling	Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine		Standard equipped with chain-typechip conveyor and small iron chip cart.
