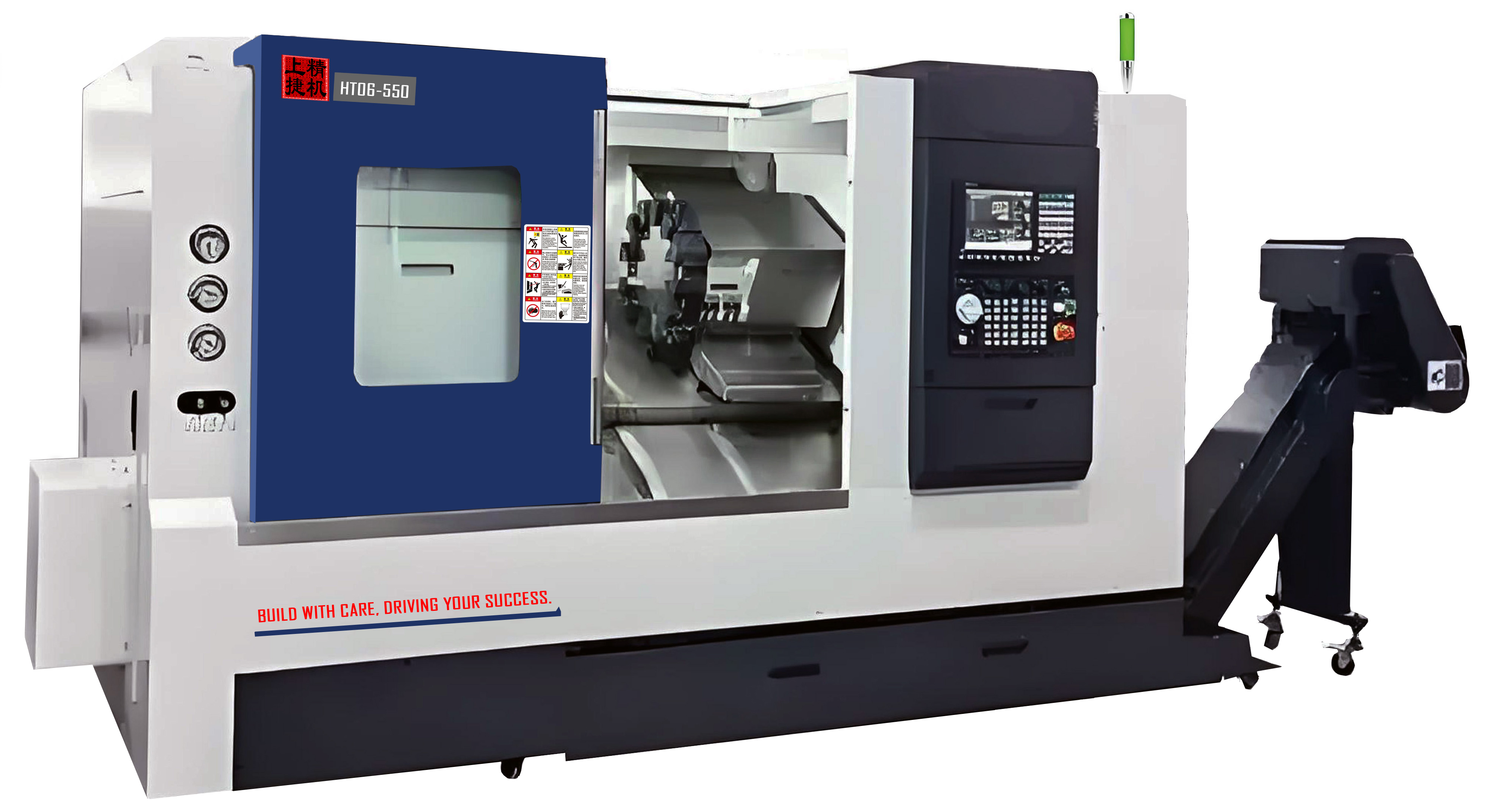

HT06-350/550/750

Tailored Solution for Heavy-Duty Component Manufacturers

The HT06-350/550/750 series is engineered to meet the demanding needs of manufacturers requiring high precision in large-diameter parts machining. This cnc lathe machine targets sectors producing heavy discs and shafts that require integrated turning-milling processes. Designed for professional engineering environments, its robust construction and compound processing capabilities allow production teams to reduce setups and improve overall workflow efficiency. As part of the portfolio from leading cnc lathe suppliers, it supports users looking for multi-functional machining centers optimized for heavy cutting tasks, striking balance between productivity and precision on large components.

Advanced Mechanical Design Meeting Precise Specifications

This series integrates an extra-wide bed constructed from FEM-optimized castings, significantly enhancing rigidity and stability during cutting operations. The 45° inclined saddle, combined with high-precision linear guides and precision-grade ball screws, delivers superior accuracy and repeatability while minimizing vibration. With a spindle motor power up to 11 KW, a maximum swing diameter of 600 mm, and a spindle bore diameter of 72 mm, the machine meets stringent requirements for heavy-duty machining with spindle speeds up to 3000 r/min. Optional features such as an 8 or 12-station servo power tool turret and programmable tailstock provide versatility for complex turning and milling compound operations, ensuring adaptability within advanced manufacturing lines of cnc lathes for sale.

Application Scope and Industrial Impact

The HT06-350/550/750 is widely applicable in industries producing automotive, aerospace, and heavy machinery components. It excels in scenarios demanding the turning and milling of large components, enabling single-setup processing that boosts throughput and reduces error accumulation. Its robust build and extensive ergonomic features allow in-house prototyping, pre-production runs, and precision finishing work on large workpieces. This multi-role capability translates into improved return on investment for enterprises integrating cnc lathe machines into their production systems, ensuring they meet durability and quality standards critical to heavy industrial operations.

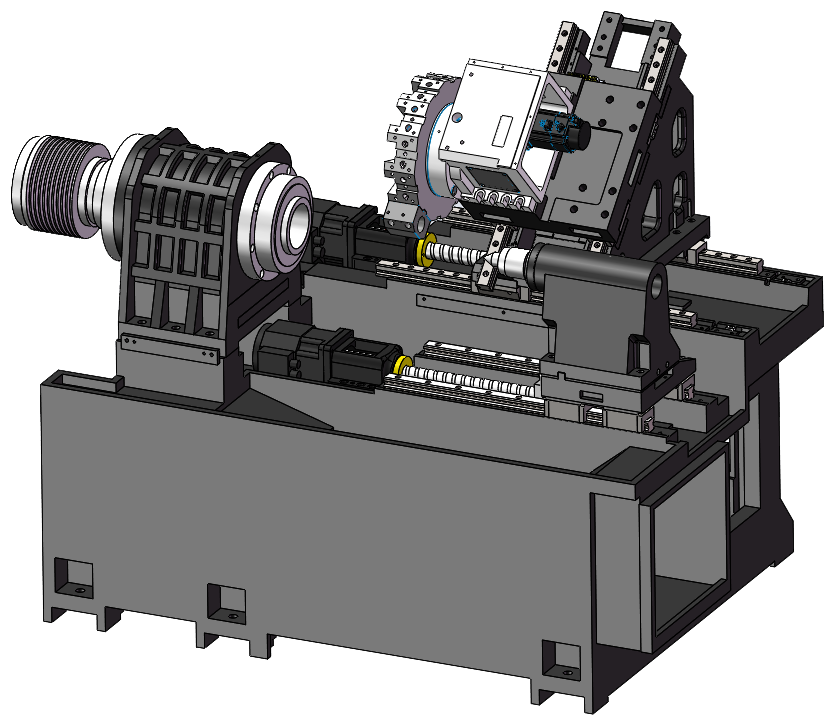

Machine Characteristics The HT series is a heavy-duty turret turning center, specifically designed for heavy cutting of large discs and shafts. The tailstock and sub-spindle rail parts are all integrally cast and have undergone reinforcement and optimization treatment. The extra-wide bed is more conducive to improving processing stability and is particularly suitable for turning and milling compound processing requirements. The 45° inclined saddle, combined with large-sized roller linear guides and precision-grade ball screws, enables it to handle various processing tasks and maintain the bed accuracy for a long time. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.

■  Specifications

Product Advantages

Structural and System Design Excellence

From the foundation to tool interfaces, the HT06-350/550/750 exemplifies engineered robustness. The integrally cast tailstock and sub-spindle rail improve machine rigidity, minimizing deflection and extending service life—key factors when machining large diameter shafts. The extra-wide bed optimized via finite element analysis supports stability under heavy cutting loads. Additionally, the modular design accommodates optional servo tool turrets with 8 or 12 stations, facilitating complex compound operations without compromising system integrity. Such design refinements position this product firmly among the top-tier offerings from cnc lathe manufacturers.

Operational Performance and User Efficiency

Optimized for usability in professional shop floors, this cnc lathe machine provides high torque motors and rapid axis feeds up to 30 m/min, accelerating cycle times without sacrificing accuracy. Programmable tailstock options enhance operator control over turning-milling versatility, reducing setup time and increasing precision. Robust hydraulic chucks secure large workpieces reliably, which along with intuitive system integration, delivers consistent machining quality. The combination of advanced hardware and control adaptability generates operational value, empowering production managers and engineers to optimize throughput while maintaining strict quality compliance typical of leading cnc lathe suppliers.

■  Expandable functions of machine tools

Turn-Mill    The entire HT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.

Programmable Tailstock   The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.

About Us

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd. was established in 2007 and currently operates a 20,000 m² workshop. Our product range includes CNC turning centers, vertical/horizontal machining centers, CNC gantry machining centers, precision grinding machines, and more. As an ISO9001 and ISO14001 certified company, we are dedicated to becoming a comprehensive equipment supplier offering diversified, intelligent, precision, and serialized products. We possess full industrial manufacturing capabilities with specialized departments for product design, quality control, casting processing, sheet metal fabrication, painting, precision parts machining, and equipment assembly/testing. All machines undergo independent design and final debugging, ensuring full quality control. Our facility is equipped with precision gantry machining centers, vertical/horizontal machining centers, CNC lathes, laser cutting machines, and CNC bending machines. We use advanced measuring instruments such as laser interferometers, dual-axis electronic autocollimators, and laser angle measurement devices. All machine castings use HT300 high-grade material, which is tempered and naturally aged to release internal stresses fully, paired with strict quality control to ensure stable machine quality. Upholding the values of "rigorous, pragmatic, honest, and responsible," we guarantee satisfactory equipment and aim for win-win cooperation. Contact us now for your custom quote!

FAQ

What materials are used in the construction of the HT06-350/550/750 turning center?

The HT06-350/550/750 features machine castings made of HT300 high-grade material, which undergo tempering treatment and natural aging to relieve internal stress. This process, combined with FEM-optimized reinforcing ribs, ensures durability and precision in the heavy-duty cnc lathe machine for sale.

Can the HT06-350/550/750 be customized for specific industrial applications?

Yes, the HT series can be configured with options such as a servo power tool turret with 8 or 12 stations and programmable tailstock settings, allowing for versatile turning and milling compound operations suited to your production needs. Contact our team for tailored solutions on cnc lathes for sale.

What support is provided for installation and maintenance of this heavy-duty turret turning center?

Installation guidance and after-sales service are available, including a one-year warranty and 24-hour technical support. Our professional team ensures smooth setup and continued reliable operation for your cnc lathe machine, maximizing uptime and precision.

How is the HT06-350/550/750 shipped and what trade terms are available?

We offer flexible trading methods including FOB, CIF, and CNF. For mass production orders, a 30% advance payment is generally required with the balance due upon bill of lading. Payment methods accepted include T/T and L/C, ensuring convenience for international buyers of cnc lathe suppliers.
