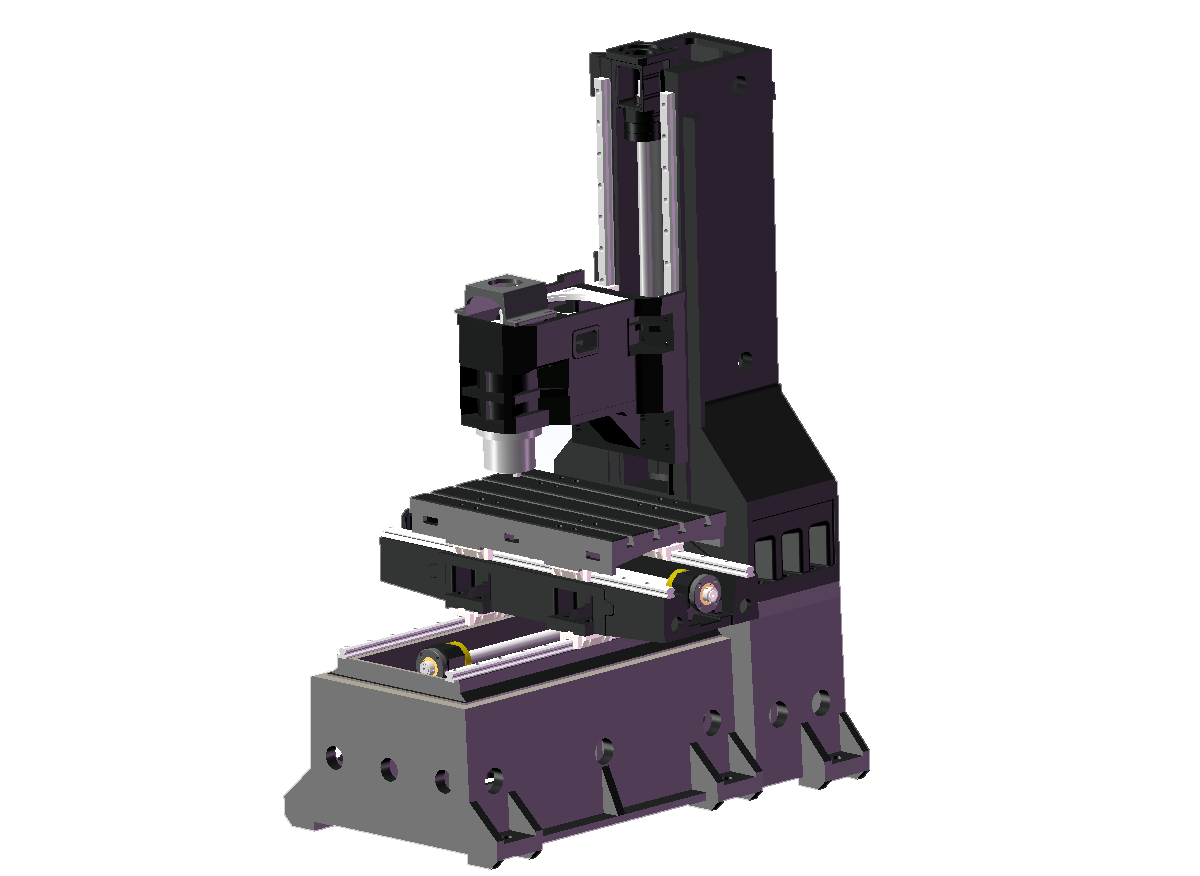

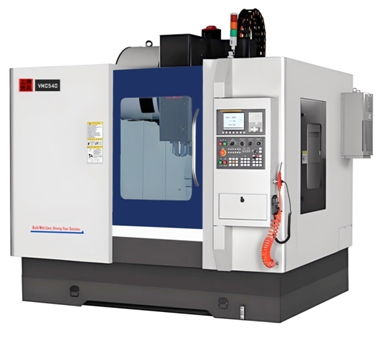

| VMC series machine tools adopt a low center of gravity design, increase the span of the column, and widen the width of the Y-axis base to enhance the stability of the machine tool. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs of the castings are optimized to achieve the best strength of the bed. Additionally, special reinforcement structures are implemented on the Y-axis base and the Z-axis column to ensure that the machine tool maintains good accuracy during long-term operation. At the same time, the bed structure is more conducive to heavy cutting, improving work efficiency and tool life. |
The machine tool castings are made of HT300 high-grade material, which features high strength, strong resistance to deformation and excellent shock absorption capacity. After vibration aging and secondary tempering processes, the stress is eliminated, providing excellent dimensional stability and durability. This ensures that the machine tool maintains stable precision over a long period of use. |
 |
■ Specifications
| Machine Type | VMC540 |
| 工作台尺寸Workbench size | 700x400 mm |
| Workbench T-slot (number - size * pitch) | 3-14x90 mm |
| Max. load capacity of the workbench | 350KG |
| X轴行程 X-axis travel distance | 510mm |
| Y轴行程 Y-axis travel distance | 410mm |
| Z轴行程 Z-axis travel distance | 500mm |
| Distance from the center of spindleto the guide rail of the column | 460mm |
| Distance from the spindle face tothe worktable surface | 100-600 mm |
| 导轨形式 Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z快移速度 X,Y,Z fast movement speed | 30m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 34.5N.m |
| Y轴电机最大转矩 Y axis Max. torque of motor | 34.5N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 34.5N.m |
| 主轴最高转速 Max. spindle speed | 8000/12000 rpm |
| 主轴锥孔 Spindle taper hole | BT40 |
| 主轴电机功率 Spindle motor power | 7.5/11 KW |
| 刀库容量 Tool magazine capacity | Umbrella-Type 12Tools |
| 刀具最大重量 Max. weight of cutting tools | 8Kg |
| 气源压力 Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H) | 1580x1580x1950mm |
| Standard weight | 4500KG |
■ Machine Tool Configuration
CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi  |
High-quality spindle, imported bearings |
THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide |
C3 grade precision ground ball screw |
High-quality tool clamping cylinder |
NSK, SKF, FAG P4 grade imported angular contactpaired bearings |
Precision high-rigidity coupling |
Imported high-torque synchronous belts |
High-quality disc-type /Umbrella-type ATC Tool magazine  |
|||
