HT05DSZY-300/500/700

Advanced Multi-Functional Machining Solution for Heavy-Duty Use

The HT05DSZY series targets manufacturers requiring precise and versatile machining in a single setup. Designed primarily for industrial engineers and production managers, this cnc machining center for sale integrates double-spindle turning and milling to optimize workflow. Its ability to handle complex components with a 600 mm swing and selectable machining lengths up to 700 mm benefits sectors with heavy-duty demands. The machine’s configuration suits both prototype development and batch production in high-volume manufacturing environments, enabling improved throughput and reduced setup times for users focusing on technical efficiency and quality consistency.

Innovative Technical Specifications and Rigorous Build Quality

This cnc lathe features a motor-directly-driven gantry Y-axis tool turret with ±50 mm travel, ensuring superior Y-axis positioning accuracy that enhances milling rigidity. Powered by permanent magnet synchronous spindles delivering up to 7.5 kW per spindle at 6000 r/min, the system supports robust heavy-duty machining. The 12-station servo tool turret accommodates 20x20 mm tooling for greater process flexibility. Axis travel dimensions—260 mm (X), 450/650/850 mm (Z)—and rapid feed rates of 25 m/min provide broad machining envelopes. The fully enclosed design incorporates heavy roller linear guides for enhanced rigidity and long-term reliability, meeting stringent engineering precision requirements critical in cnc manufacturing facilities.

Versatile Integration Across Industrial Manufacturing Applications

The HT05DSZY finds strong value in industries demanding complex, high-precision turned and milled components, including automotive, aerospace, and high-precision equipment manufacturing. By combining turning and milling operations in a single clamping cycle, it reduces material handling and accelerates production. Its dual-spindle configuration maximizes productivity, while precise Y-axis interpolation enables stable, repeatable multi-axis operations. The machine supports integration with advanced process controls and in-process inspection, making it an indispensable asset in modern cnc machines production lines where efficiency, accuracy, and adaptability define competitive advantage.

Product Advantages

Structural and System Design Innovations Ensure High Rigidity

The design of the HT05DSZY centers on a motor-directly-driven gantry Y-axis that considerably improves positional accuracy and tool rigidity during milling phases. The 12-station servo turret with heavy-duty 20x20 mm tooling capacity supports diverse machining strategies without manual intervention, increasing cycle efficiency. Dual spindles powered by permanent magnet synchronous motors guarantee power stability even under heavy loads. These structural innovations result in enhanced machining precision and durability. The machine integrates large roller linear guides and a fully enclosed stainless steel interior to minimize contamination and wear, reflecting its origin from a reputable cnc machine factory focused on advanced machine tool engineering.

Performance Excellence and Operator Efficiency Boost Productivity

This cnc turning manufacturers-grade equipment delivers rapid feed rates (25 m/min) and a high spindle speed ceiling of up to 6000 r/min, ensuring fast and stable cutting performance. The 6" hydraulic chuck system secures heavy workpieces with reliable clamping force, enhancing machining stability. User-centric features like programmable dual-spindle coordination and Y-axis gantry interpolation optimize setup times and facilitate complex part geometries with precision. Such characteristics translate into consistent quality outcomes and reduced production cycle times. The machine’s user interface and servo control system are engineered for seamless integration into existing manufacturing environments, delivering measurable ROI through elevated throughput and reduced downtime.

Machine Characteristics ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.

■  Specifications

■  Expandable functions of machine tools

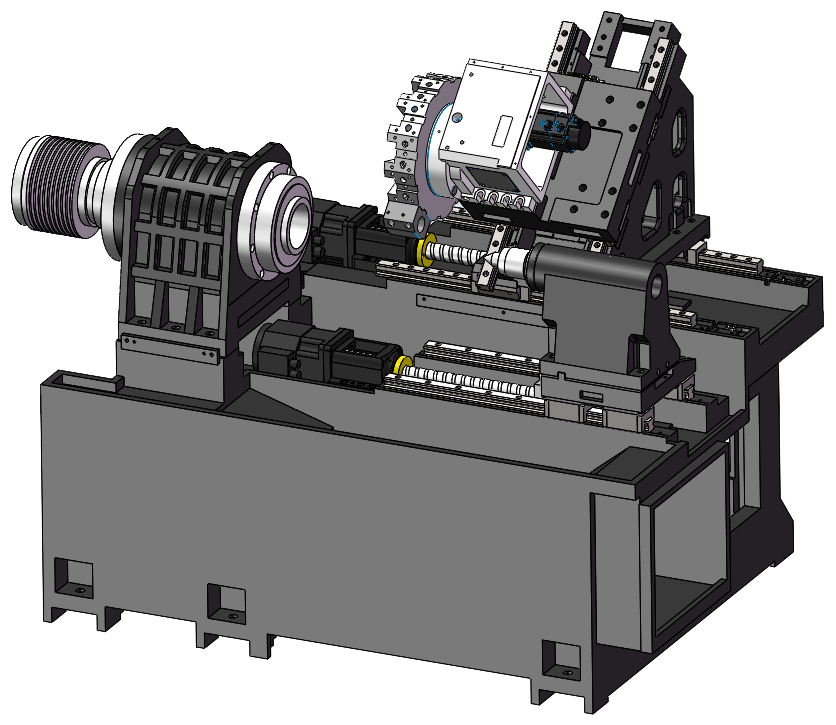

Double-spindle turning and milling compound machining center Both the main and auxiliary spindles adopt permanent magnet synchronous electric spindles, which have high power and strong force, without belt transmission. This enhances the dimensional stability and surface finish of the workpiece during high-speed turning. The spindle guide rails use large-sized and high-precision roller linear guides, which not only ensure the machining rigidity of the machine tool but also improve its machining accuracy. Combined with the corresponding power head, it realizes the turning and milling compound function, enabling complex parts of customers to be processed in one clamping, completing all machining procedures.

Fully enclosed stainless steel inner protective layout The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.

Use Scenarios

Advanced Metalworking and Prototype Development Applications

In automotive component manufacturing and aerospace prototyping, the HT05DSZY series excels as a hybrid cnc lathe and cnc milling machine for intricate metal parts requiring simultaneous turning and milling. Its ability to complete compound machining in one setup dramatically lowers cycle times and handling risks. The high power and rapid feed features meet strict dimensional tolerances necessary for these sectors. This machine integrates efficiently with CAD/CAM-driven production lines, allowing process engineers to program complex tool paths on the 12-station servo turret, thus supporting iterative design adjustments and small batch runs. It ensures compliance with industry precision standards, enhancing yield in high-precision fabrication environments.

Heavy-Duty Industrial Machining in High-Volume Production

Within heavy mechanical manufacturing plants, this cnc machine serves as a primary workhorse for producing large volumes of turned and milled components with consistent quality. Its double-spindle configuration enables multitasking operations that maximize throughput without sacrificing precision. The robust hydraulic chuck combined with the rigid gantry Y-axis maximizes clamping reliability during intensive machining cycles, thereby reducing downtime. Maintenance teams benefit from the machine’s modular design, facilitating swift preventive service routines critical in continuous production settings. Integration with MES and automated inspection systems ensures real-time process monitoring, optimizing operational efficiency in factories relying on cnc machine dealers for scalable and reliable equipment solutions.

FAQ

What types of materials can the HT05DSZY series machine handle?

Our heavy-duty CNC turning center handles various metal materials common in automotive and industrial parts manufacturing. The high rigidity and precise control of the HT05DSZY series allow effective processing of steel, aluminum alloys, and other high-strength materials, fitting your machining needs using this advanced CNC machine.

Can you customize the machining specifications or tooling configurations?

Yes, we offer flexible customization for the HT05DSZY-300/500/700 models. You can specify different machining lengths, tooling setups on our 12-station servo turret, or spindle speeds to meet your production requirements. Contact us to discuss your specific customization needs for this CNC machining center for sale.

Do you provide installation and operator training services after purchase?

We support installation guidance and operator training to ensure smooth integration of your new CNC lathe into production. Our technical team offers detailed setup instructions and training on operating the motor-directly-driven gantry Y-axis and dual-spindle functions, helping you optimize machine uptime and output.

What are the shipping options and lead times for this CNC turning center?

We arrange shipping based on your location and order size, typically using FOB, CIF, or CNF terms as agreed. Lead time depends on order volume and factory schedule, but we prioritize timely delivery. Contact us for detailed shipping plans and logistics support for your CNC machine factory purchase.
