XT05W-300/500

Functional Positioning for Precision Component Production

The XT05W-300/500 caters to precision machining of disc-shaped components and short shaft parts, targeting engineering and manufacturing enterprises requiring reliable heavy-cutting solutions. Designed as a slant-bed cnc lathe, it supports rigorous turning applications with options for Turn-Mill operations, allowing combined milling and turning in one setup. This model suits CNC machine dealers and industrial users demanding compact yet versatile cnc machines capable of fulfilling complex production schedules with minimized setup times and capital investment. Its modular expansion capability enables greater flexibility, supporting high-mix, low-volume manufacturing environments.

Advanced Structural Features and Key Performance Metrics

This high-precision cnc lathe integrates a 45° inclined saddle that enhances rigidity and reduces backlash, significantly improving machining accuracy and tool longevity. The bed structure incorporates FEM-optimized reinforcing ribs to withstand heavy cutting, using HT300 cast iron for superior vibration damping. Technical specifications include a spindle motor power of 5.5/7.5 kW, max spindle speed of 6000 r/min, and travels of 215 mm (X axis) and up to 610 mm (Z axis). The inclusion of programmable tailstock and servo power tool turret options allows seamless milling and turning (Turn-Mill), expanding functional capabilities critical to demanding cnc manufacturing operations.

Applications in Various Manufacturing and Prototyping Environments

The XT05W-300/500 thrives in industries requiring intricate disc and shaft part production, such as automotive component manufacturing and precision instrument fabrication. Its high rigidity and precision deliver fine finishing passes and complex multi-process workflows facilitated by Turn-Mill integration. This cnc lathe fits well in small-batch, high-precision production runs and prototype development where reliable performance and reduced cycle times are paramount. It also benefits training facilities focusing on multi-axis turning-milling skills, streamlining operator qualification within CNC machine factories or engineering centers emphasizing process optimization.

Design and Structural Robustness Enhancing Machining Capability

The XT05W-300/500’s design centers on vibration reduction and structural integrity, featuring a widened integral bed with optimized ribbing via FEM analysis to reinforce strength. The 45° inclined saddle configuration offers superior force resistance and minimizes backlash, ensuring consistent geometric accuracy. Its modular architecture supports integration with a servo power tool turret and programmable tailstock, enabling efficient Turn-Mill operations without additional footprint expansion. This engineering synergy makes it an ideal solution for cnc turning manufacturers seeking durable, scalable cnc machines with enhanced operational flexibility.

Enhanced Operational Performance and User Efficiency

Performance-wise, the XT05W-300/500 delivers stable high-speed spindle rotation up to 6000 r/min and rapid axis feed speeds of 25 m/min, ensuring precise and efficient material removal. The machine’s programmability, coupled with options for milling capability integration, enables complex machining cycles with reduced setup times. Its compact size and optimized weight distribution simplify factory floor integration, reducing space demands without compromising production capacity. This user-centric design offers CNC machine dealers and buyers confident return on investment through improved tool life, lower maintenance requirements, and the capacity to undertake diverse machining tasks efficiently.

• Machine Characteristics

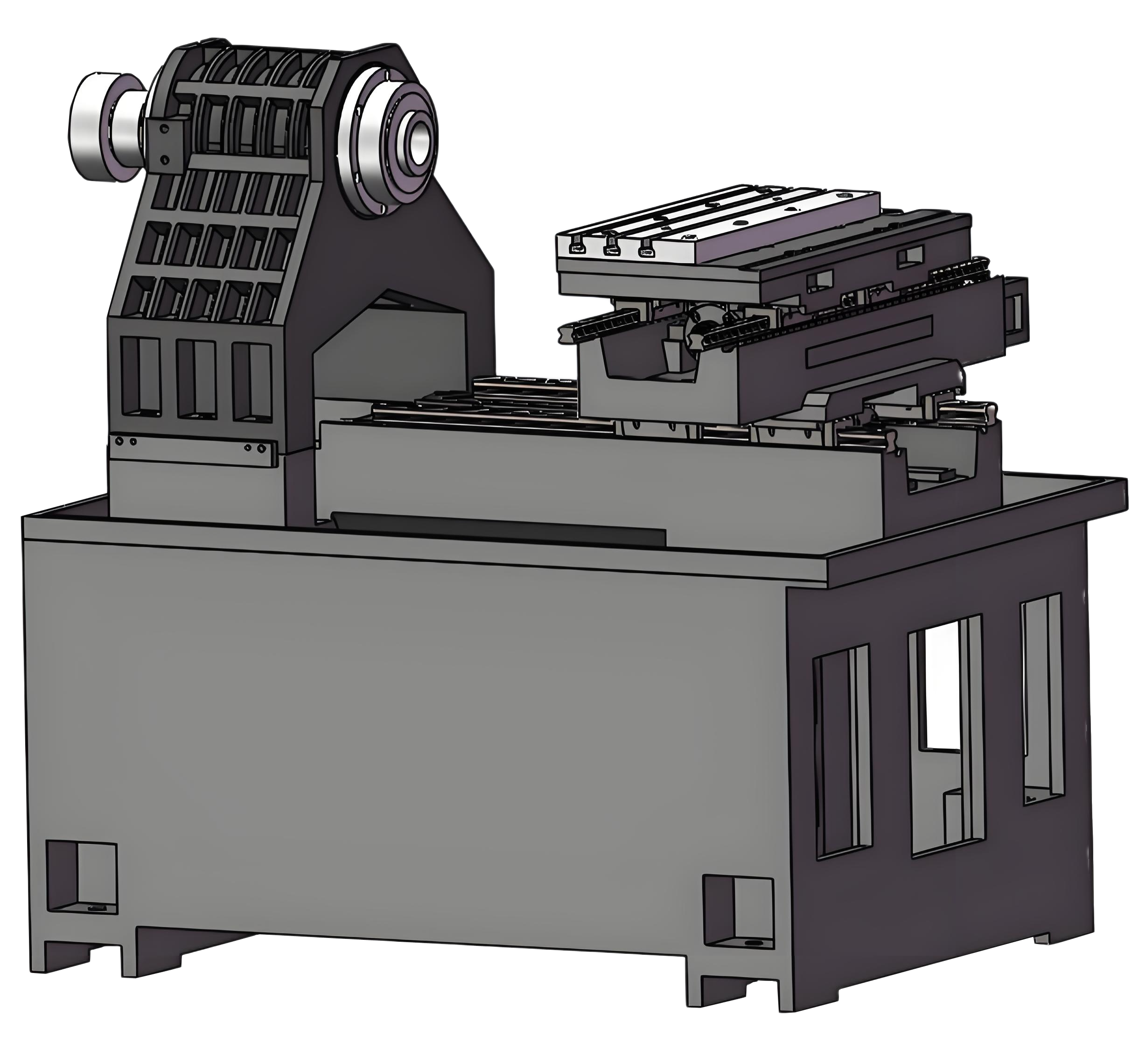

The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.
By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.

■  Specifications

■  Expandable functions of machine tools

• Turn-Mill

The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.

• Programmable Tailstock

The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.

Use Scenarios

Precision Manufacturing of Automotive Disc-Shaped Components

In automotive parts manufacturing environments, the XT05W-300/500 serves as a critical tool for producing high-precision disc-shaped components such as brake discs or clutch plates. Its structural strength and spindle power provide reliable heavy cutting, maintaining dimensional fidelity required by stringent industry standards. The machine integrates effectively within existing cnc manufacturing workflow lines, allowing easy handoff between turning and milling operations when equipped with the Turn-Mill option. This capability optimizes throughput while keeping tight tolerances, crucial for the automotive sector’s quality and compliance demands.

Prototyping and Small-Batch Production in Engineering Workshops

Engineering and prototyping facilities benefit from the XT05W-300/500’s versatility and compact footprint, enabling the production of short shafts and complex geometries with high precision. Its programmable tailstock supports drilling and boring operations within a single setup, streamlining prototyping workflows. The machine’s adaptability enhances productivity for rapid iteration cycles, conforming to the technical requirements of varied project scopes. As part of a vertical machine supplier’s portfolio, it offers a robust solution for workshops requiring flexible cnc machines capable of switching between milling and turning with minimal tooling changes.

FAQ

What types of parts is the XT05W-300/500 CNC lathe best suited for machining?

Our XT05W-300/500 is engineered for high-precision turning of disc-shaped and short shaft components. Its reinforced bed and 45° inclined saddle provide heavy-cut capability and geometric accuracy, ideal for parts requiring stability and accuracy in a CNC machining center for sale.

Can the XT05W-300/500 be customized for combined turning and milling operations?

Yes, the XT05W-300/500 supports an optional servo power tool turret enabling Turn-Mill functions and offers a programmable tailstock. These expand its capability to perform both turning and milling in one setup, facilitating flexible manufacturing suited for complex components.

Do you provide installation and technical support for your CNC machines?

We offer comprehensive technical support and guidance for all our machines, including CNC lathes and machining centers. Our service includes installation assistance, operator training, and 24-hour technical support to ensure smooth integration and operation at your facility.

What are the payment terms and delivery conditions for purchasing your CNC machines?

Upon quotation, we confirm the trading method with you, offering FOB, CIF, or CNF options. For mass production orders, we typically require a 30% advance payment with the balance paid against the bill of lading. Accepted payment methods include T/T and L/C, ensuring secure transactions with our CNC machine factory.
