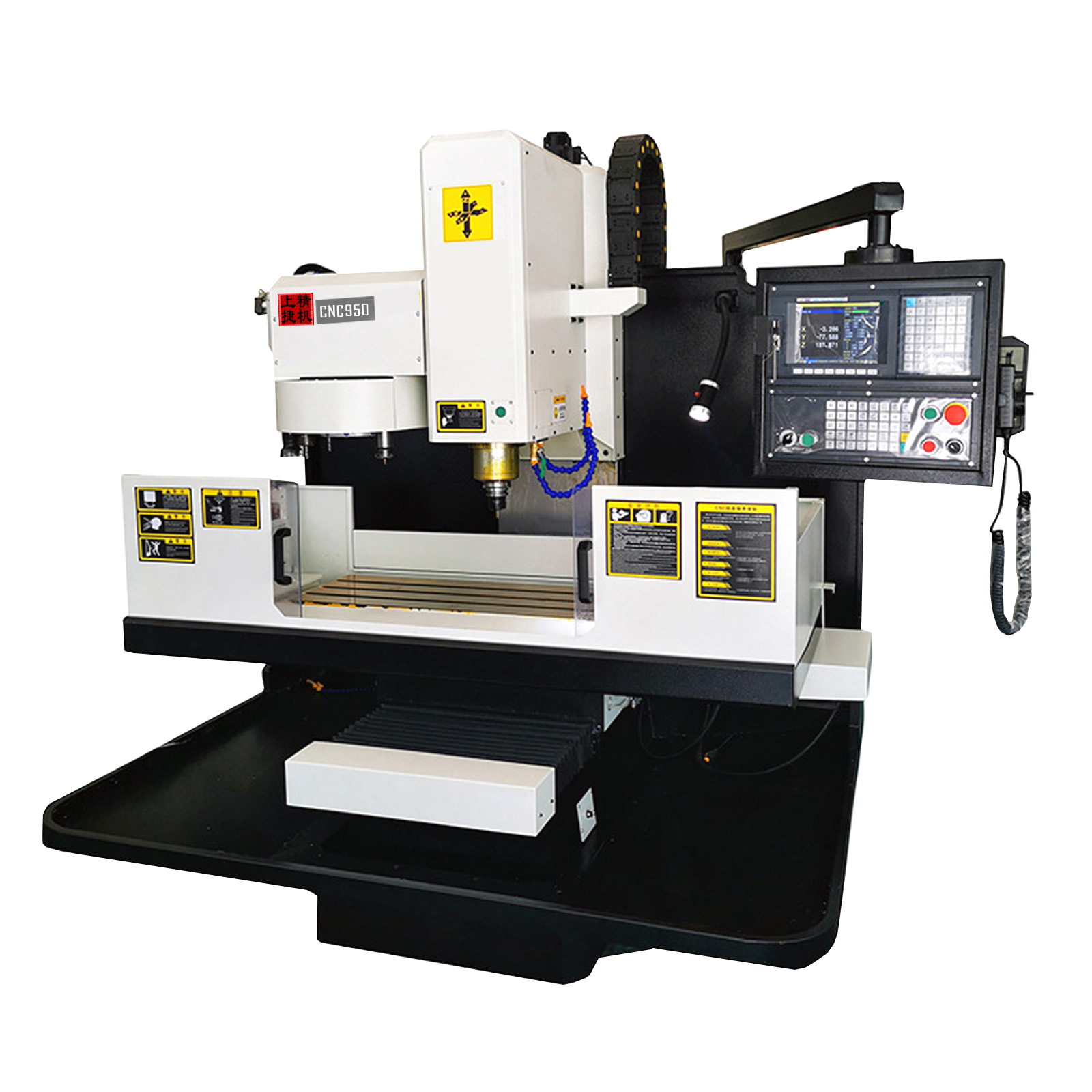

| CNC series of numerically controlled drilling and milling machines adopt an integral bed structure made of HT300 material, which features strong rigidity and high stability. They are equipped with 35mm P-level precision linear guides and Ø40 C-level ground ball screws, with 6 slides on the X-axis. Combined with the CNC numerical control system, they can achieve three-axis linkage and complete the drilling and milling processing of complex parts. |
|
CNC series of numerically controlled drilling and milling machines adopt an integral bed structure made of HT300 material, which features strong rigidity and high stability. They are equipped with 35mm P-level precision linear guides and Ø40 C-level ground ball screws, with 6 slides on the X-axis. Combined with the CNC numerical control system, they can achieve three-axis linkage and complete the drilling and milling processing of complex parts. |
■ Specifications
| Machine Model | CNC530 |
| Workbench size | 900x280mm |
| 工作台T型槽（数目-尺寸*间距）Workbench T-slot (number - size * pitch) | 3-14x80mm |
| 工作台最大承重 Max. load capacity of the workbench | 150 Kg |
| Distance from the spindleface to the worktable surface | 100-600mm |
| X-axis travel distance | 500mm |
| Y-axis travel distance | 300mm |
| Z-axis travel distance | 500mm |
| X,Y,Z快移速度 X,Y,Z fast movement speed | 25 m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 25.2N.m |
| Y轴电机最大转矩 Y axis Max. torque of motor | 25.2N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 34.5N.m |
| 主轴锥孔 Spindle taper hole | BT30 / BT40 |
| 主轴电机功率 Spindle motor powe | 3.7/5.5 KW |
| 主轴最高转速 Max. spindle speed | 8000rpm |

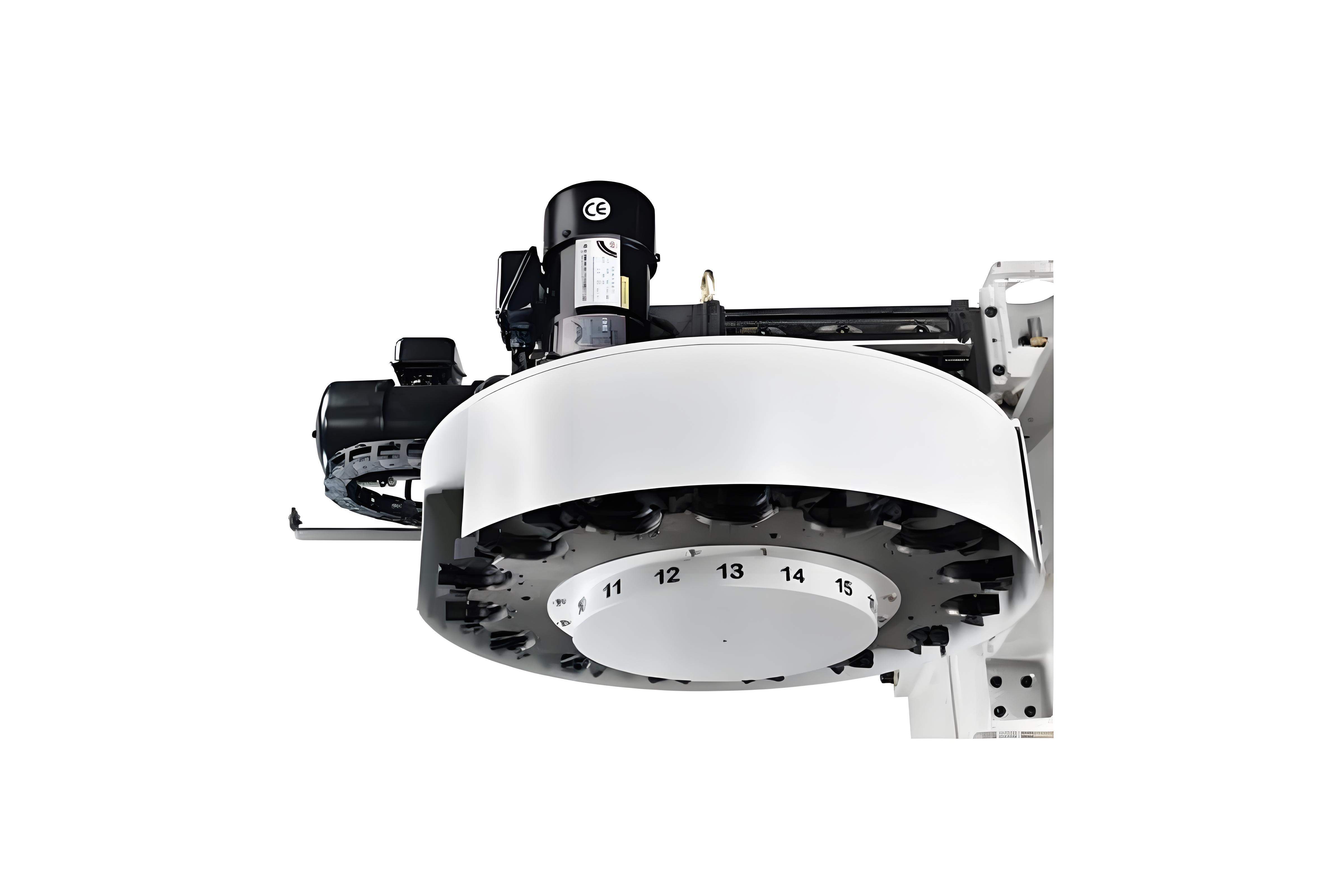

| 刀库容量 Tool magazine capacity | （选配Optional configuration）斗笠式/12把 Umbrella-Type 12Tools |
| 气源压力 Air source pressure | 0.5-0.8 MPa |
| 刀具最大重量 Max. weight of cutting tools | 8KG |
| Machine size (L x W x H) cm | 155x155x210 |
| Standard weight | 1.8 T |
■ Machine Tool Configuration
High-quality spindle, imported bearings |
PMI, HIWIN, HTPM 35、45 Precision Grade P roller-type linear guide |
PMI, HIWIN C3 grade precision ground ball screw |
Precision high-rigidity coupling |
