HV5F-630 - Horizontal CNC Milling Machine & Machining Center

Advanced Positioning for Precision Manufacturing

Designed primarily for industrial users requiring heavy-duty machining, the HV5F-630 horizontal cnc milling machine delivers optimal performance for high-precision cutting and complex contouring. It is suited for manufacturers and cnc machine dealers engaged in large-scale or intricate component production. The machine’s fixed gantry integral bed structure provides enhanced rigidity, making it indispensable for environments where stability and reliable machining are critical. This solution supports various CNC manufacturing processes, allowing users to integrate it effectively into production lines focused on efficient, accurate milling and machining center operations.

Robust Specifications Enabling Rigorous Operation

The HV5F-630 features a large-span H-shaped gantry with front-hung box design and a heavy four-roller linear guide base, engineered to maximize rigidity during heavy cutting. Its 1200x600x600 mm travel range accommodates sizeable workpieces, while the BT50 spindle offers up to 18 kW power and speeds up to 8000 rpm for versatile high-torque milling. Precision positioning reaches 0.01 mm accuracy with 0.006 mm repeatability, complemented by a continuous 0.001° spindle orientation accuracy. A 24-tool disc-type magazine enhances productivity with rapid tool changes. This combination of precise mechanical design and flexible CNC systems support positions the HV5F-630 among leading cnc machines and cnc milling machine products for demanding industrial applications.

Versatility in Diverse Industrial Production

The HV5F-630 excels in sectors requiring precise finishing of large and complex parts, including aerospace, automotive tooling, and heavy machinery manufacturing. Its capability for multi-axis milling within a single setup reduces cycle times and improves throughput in cnc manufacturing workflows. The machine facilitates prototyping and validation of large tooling, supports contouring and pocket milling on structural components, and ensures stable operation during roughing and finishing processes. By integrating smoothly into production environments, it enables manufacturers to optimize tooling accuracy and achieve higher product quality with a durable cnc machining center for sale that maintains performance under continuous intense utilization.

Structural and System Design Excellence

The HV5F-630’s design centers on a fixed gantry integral bed constructed from HT300 castings, naturally aged and tempered to enhance rigidity and dampen vibrations. The large-span H-shaped gantry and reinforced Y-axis columns provide resistance to twisting forces during machining. Incorporating a four-roller linear guide base contributes to smooth, stable movement with minimal wear, essential for maintaining CNC machining accuracy over extended periods. The front-hung box layout optimizes weight distribution and lowers the center of gravity, enhancing overall machine stability. This structural engineering makes the model a reliable component within the portfolio of a cnc machine factory, ensuring robustness and longevity in demanding production lines.

Performance-driven Operation and User Efficiency

Equipped with a BT50 spindle capable of delivering up to 18 kW and high-speed rotations, the HV5F-630 enables effective high-torque machining coupled with fine finishing. Precision positioning and repeatability guarantee reliable contouring and multi-tool integration, reducing setup times through its 24-tool disc-type magazine. The machine’s compatibility with multiple CNC control systems (FANUC, Siemens, SYNTEC, KND, Mitsubishi) grants flexibility for integration with various control platforms preferred by cnc turning manufacturers and vertical machine suppliers. Its design supports reduced maintenance needs, facilitating uptime and enhancing workflow efficiency, which is critical for factories seeking high throughput from their cnc machines.

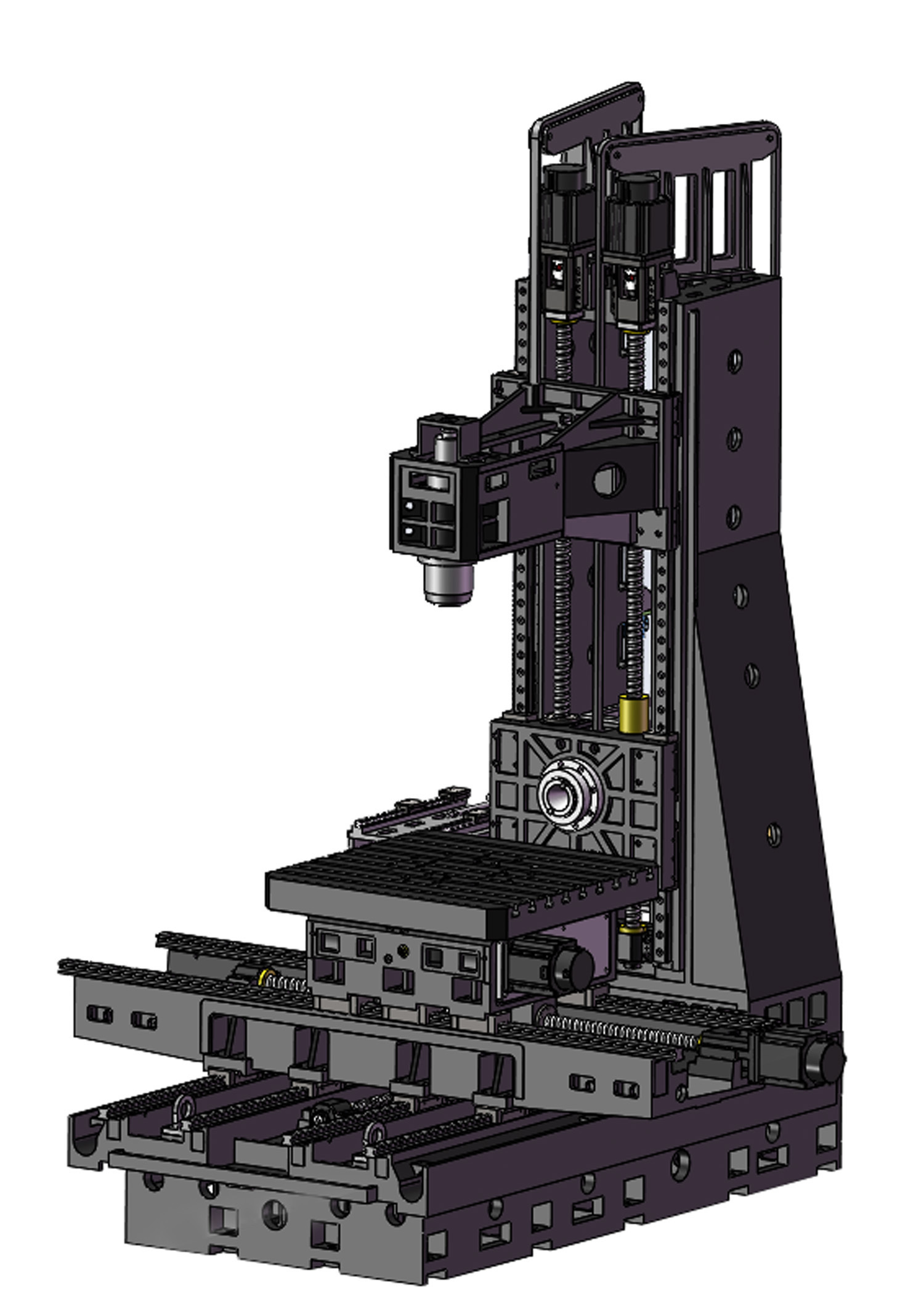

■   Machine Structure HV5F series machine tools adopt a fixed gantry column integral bed structure, featuring a large-span H-shaped gantry column and a front-hung box layout. Coupled with a wide and heavy four-roller linear guide layout base, the machine tools have strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with a focus on low center of gravity, anti-twist, and suitability for heavy cutting. Finite element analysis (FEM) is applied to optimize the shape and position of the reinforcing ribs of the castings, achieving the optimal strength of the bed. Additionally, the base and Y-axis column have been specially reinforced to make the bed structure more suitable for heavy cutting and increase the tool life.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide
Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.	The double lead precision worm gear and worm achieve zero clearance transmission and a maintenance-free lifespan of 20,000 hours. It also features a large transmission ratio, smooth transmission, and self-locking properties, making it particularly suitable for milling operations.	Imported P4 grade precision turntable bearings are selected, featuring three rows of rollers that respectively provide axial and radial support. This results in a large clamping torque on the worktable surface and a strong anti-overturning torque.
Standard equipped with chain-typechip conveyor and small iron chip cart.		High-quality disc-type /Umbrella-type ATC Tool magazine

Use Scenarios

Complex Aerospace Component Machining

Within aerospace manufacturing environments, the HV5F-630 functions as a high-precision horizontal CNC milling center for detailed contouring and finishing on structural alloy components. Its capacity to handle large workpieces and deliver precise, stable spindle orientation allows aerospace manufacturers to meet stringent dimensional tolerances and surface finish standards. Integrating with quality control systems and toolpath optimization workflows, the machine ensures compliance with industry specifications for fatigue-critical parts. Its rigid structure and advanced capabilities make it a key equipment choice for aerospace production lines aiming to improve cycle times and product precision utilizing a cnc machining center for sale.

Heavy Machinery and Structural Part Production

In heavy machinery manufacturing, the HV5F-630 serves as a reliable solution for contour milling, pocketing, and roughing of large structural components. Its rugged castings and extensive X, Y, and Z axes travel accommodate oversized parts common in construction and equipment fabrication. This CNC milling machine maintains positional accuracy during aggressive material removal, supporting efficient heavy machining applications. By integrating seamlessly into machining center layouts supported by cnc machine dealers, it helps optimize production workflows and tooling lifecycles, thus improving manufacturing efficiency and reducing downtime in heavy industry fabrication environments.

FAQ

What materials are used in the construction of the HV5F-630 horizontal CNC milling machine?

We use HT300 high-grade castings for the machine bed and gantry, which are tempered and naturally aged to release internal stresses. This guarantees rigidity and long-term stability under heavy cutting conditions, making our HV5F-630 a durable choice in the cnc milling machine category.

Can the HV5F-630 machining center be customized with different CNC control systems?

Yes, the HV5F-630 supports various CNC controls including FANUC, Siemens, SYNTEC, KND, and Mitsubishi. We offer this flexibility to adapt to your production line needs and ensure compatibility with your existing setups, making it an ideal cnc machining center for sale.

What are the installation requirements for the HV5F-630 machining center?

To install the HV5F-630, you need a stable foundation that supports its 12,000 kg weight and a footprint of 4800x4000x2800 mm. Additionally, a steady compressed air supply between 0.5-0.8 MPa is essential to operate pneumatic components smoothly throughout your workflow.

How is maintenance handled for the HV5F-630 fixed gantry horizontal machining center?

Our HV5F-630 is engineered for long service life with components like a worm gear transmission rated for 20,000 hours of maintenance-free operation. Regular inspections and lubrication are recommended to retain precision and machine longevity, ensuring consistent performance on your cnc milling machine.
