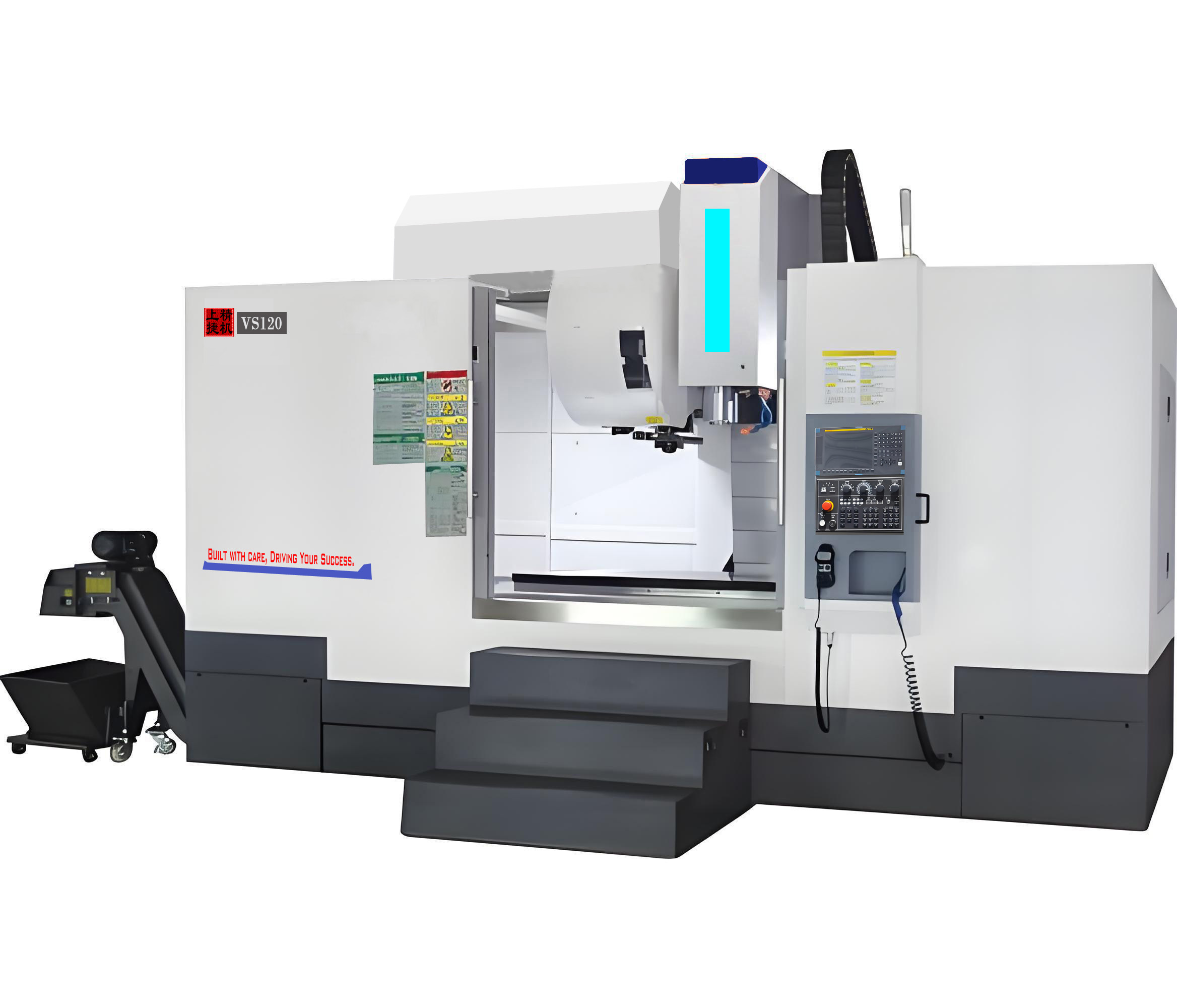

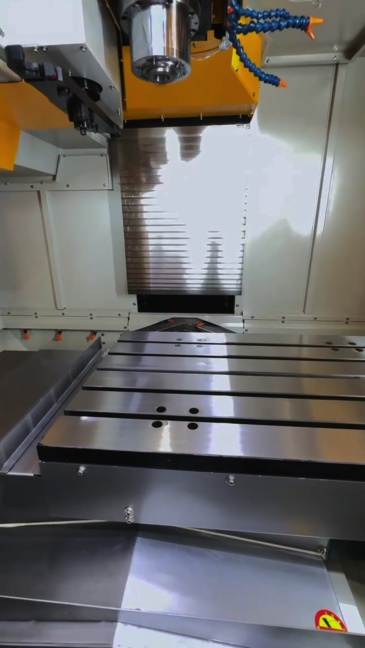

| VS series is a heavy-duty vertical machining center. All models adopt 6 sliders on the X-axis, 4 roller linear guides with 8 sliders on the Y-axis, and the Z-axis column is equipped with an increased installation foot span to make the base wider and provide a solid foundation for the machine tool's processing performance. |
VS series is professionally designed and manufactured with the main principles of low center of gravity, anti-distortion, anti-creep, heavy cutting, and high material removal rate. |
 |
| VS series is equipped with a standard spindle counterweight system, which can reduce the load on the Z-axis lead screw, decrease heat generation, and minimize the impact of thermal elongation on the machining accuracy of the machine tool. This enhances the machining accuracy of the machine tool and the surface finish of the workpiece. |  |
|

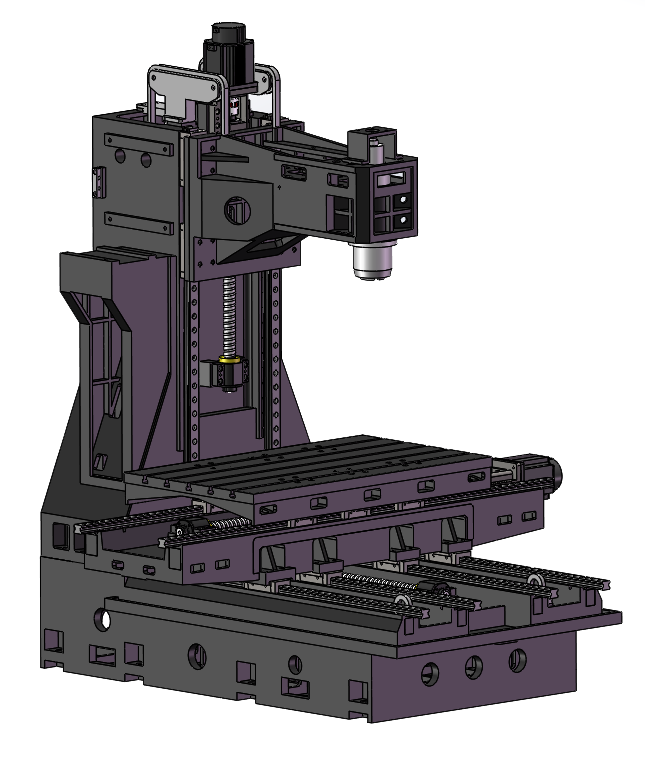

The Z-axis column is a large span. All cast components are made of HT300 material, achieving superior vibration damping performance, support rigidity and excellent stability. |
 |
■ Specifications
| Machine Type | VS150 |
| 工作台尺寸Workbench size | 1700x800 mm |
| Workbench T-slot (number - size * pitch) | 5-18x150 mm |
| Max. load capacity of the workbench | 1600KG |
| X轴行程 X-axis travel distance | 1510mm |
| Y轴行程 Y-axis travel distance | 810mm |
| Z轴行程 Z-axis travel distance | 710mm |
| Distance from the center of spindleto the guide rail of the column | 850mm |
| Distance from the spindle face tothe worktable surface | 130-840 mm |
| 导轨形式 Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z快移速度 X,Y,Z fast movement speed | 30m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 69N.m |
| Y轴电机最大转矩 Y axis Max. torque of motor | 85.2N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 85.2N.m |
| 主轴最高转速 Max. spindle speed | 8000/12000 rpm |
| 主轴锥孔 Spindle taper hole | BT40 (BT50 Optional) |
| 主轴电机功率 Spindle motor power | 15/18 KW |
| 刀库容量 Tool magazine capacity | Disc-Type 24Tools |
| 刀具最大重量 Max. weight of cutting tools | 8KG(BT40) / 15KG(BT50) |
| 气源压力 Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H) | 3200x2650x2800mm |
| Standard weight | 15000KG |
■ Machine Tool Configuration
CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi  |
High-quality spindle, imported bearings |
THK, PMI, HIWIN, HTPM 45、55 Precision Grade P roller-type linear guide |
THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw |
High-quality tool clamping cylinder |
NSK, SKF, FAG P4 grade imported angular contactpaired bearings |
Precision high-rigidity coupling |
Imported high-torque synchronous belts |
High-quality disc-type /Umbrella-type ATC Tool magazine  |
Standard equipped with chain-typechip conveyor and small iron chip cart. |
||
