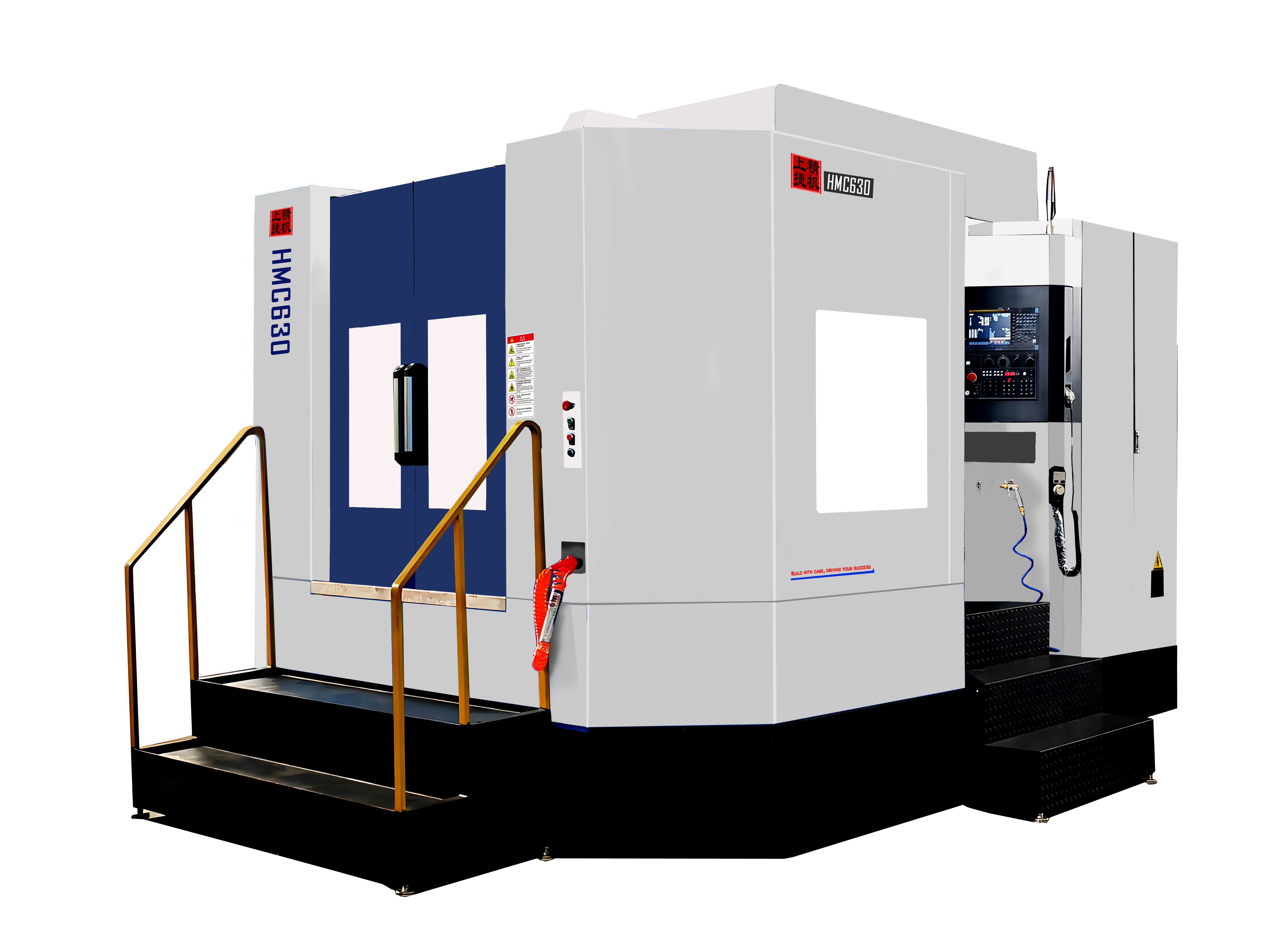

HMC630 - Horizontal CNC Machine

Robust Horizontal CNC Solution for Engineering Applications

The HMC630 horizontal machining center targets manufacturing facilities requiring robust, high-rigidity equipment for heavy cutting and precision machining. Designed explicitly for workshops handling large, heavy components, this system supports industries such as automotive, aerospace, and die/mold production. Our cnc machine factory delivers a solution tailored for users who demand durability and repeatable accuracy, incorporating a load capacity of 1200 kg on a 630x630 mm workbench. This product integrates well with existing manufacturing lines requiring reliable multi-axis machining capabilities.

Integrated Design Ensuring Precision and Power

Featuring an advanced T-shaped integral bed and gantry-type column, the HMC630 maintains superior rigidity and precision retention under heavy load. It offers travel dimensions of 1200 mm (X), 750 mm (Y), and 900 mm (Z), with 0.01 mm positioning accuracy and 0.006 mm repeatability. The spindle, with BT50 taper and 15 to 18 kW power at speeds up to 6000 rpm, supports heavy-duty cutting applications. Tool management is enhanced via a 24-tool Disc-Type or Umbrella-type ATC, with a lift-free turntable to ensure minimal downtime. Compatible CNC systems include FANUC, Siemens, SYNTEC, KND, and Mitsubishi, enabling flexible integration across various software platforms. This cnc mill setup exemplifies advanced mechanical and control design consistent with contemporary cnc manufacturing standards.

Application Versatility and Industrial Impact

The HMC630 excels in milling large parts, precision pocket milling, and contouring of thick components critical to sectors such as die/mold manufacturing and automotive production. Its structural integrity supports multi-pocket milling setups used in fixture-based production lines, enhancing throughput and machining consistency. This machine is optimized for both prototyping and small-batch production, demonstrating the scalability needed for modern manufacturing. Its design ensures reliability for surface finishing, face milling, and three-dimensional profile machining. Enterprises looking for a capable cnc machining center for sale with strong industrial usability will find this a strategic asset.

Product Advantages

Structural and Design Superiority Enhancing Reliability

The structural foundation of the HMC630 centers on a T-shaped integral bed and gantry-type column, delivering exceptional rigidity and resistance to deformation during heavy cutting. This configuration, combined with reinforced Y-axis and Z-axis columns, ensures stability critical to maintaining tight machining tolerances. Modular integration of components such as the 24-tool Disc-Type or Umbrella ATC with a lift-free turntable permits quick tool changes, reducing cycle times. The design also incorporates anti-rust and anti-twist features to extend machine life, addressing maintenance concerns typical in heavy-duty cnc machines. These engineered details cater comprehensively to requirements from cnc machine dealers and manufacturing environments focused on precision and dependability.

Optimized Performance and Ease of Use for Operators

The HMC630’s powerful BT50 spindle and high load capacity worktable enable continuous heavy cutting without compromise to precision, supporting diverse machining tasks efficiently. Operator usability is increased through its maintenance-friendly, rigid transmission system and compatibility with major CNC platforms like FANUC and Siemens, simplifying system integration. The 0.006 mm repeatability assures consistent workpiece quality, minimizing rework and downtime. This machine furthers value by facilitating seamless integration into complex cells and automated lines typical for cnc manufacturing, which is crucial for modern production economics and operational efficiency.

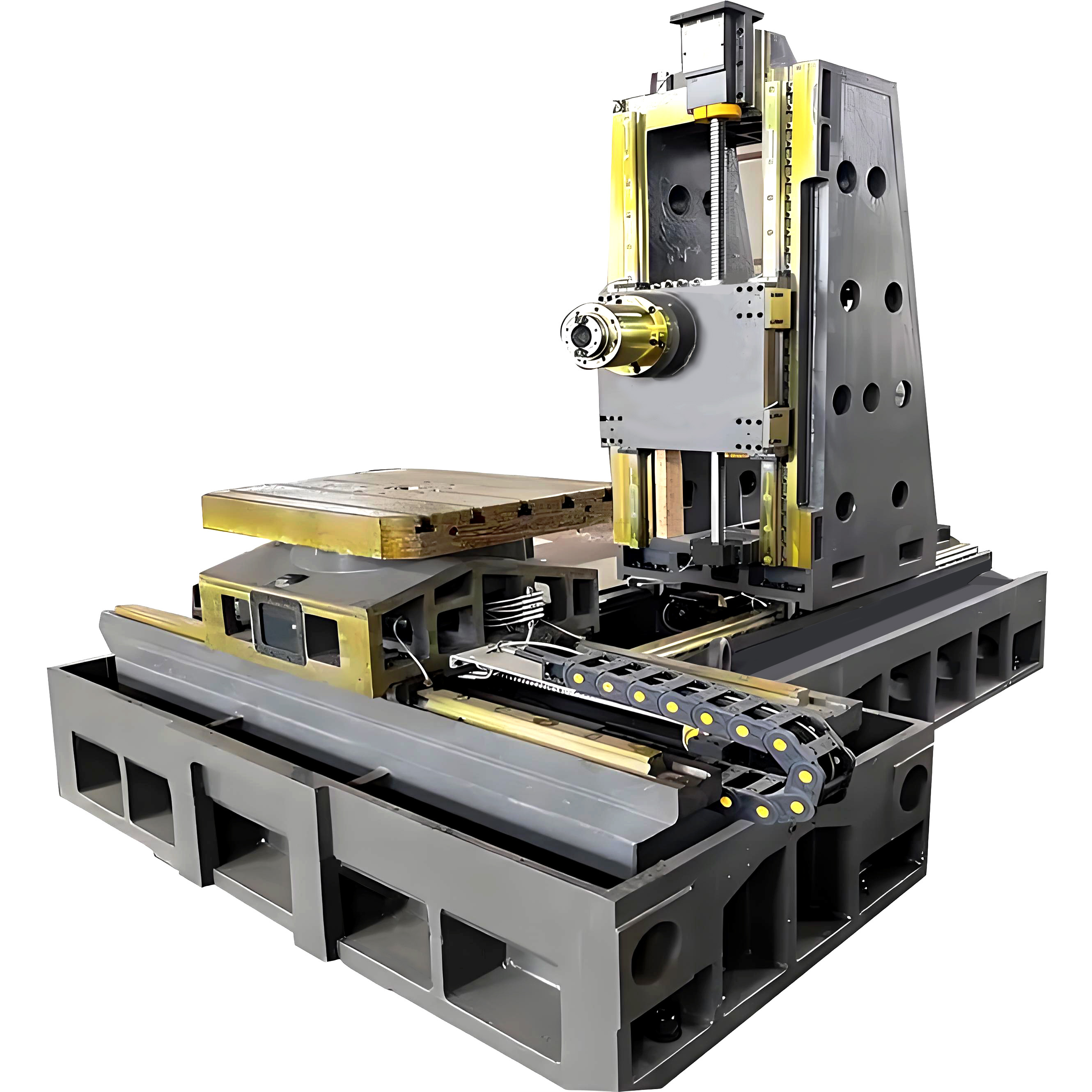

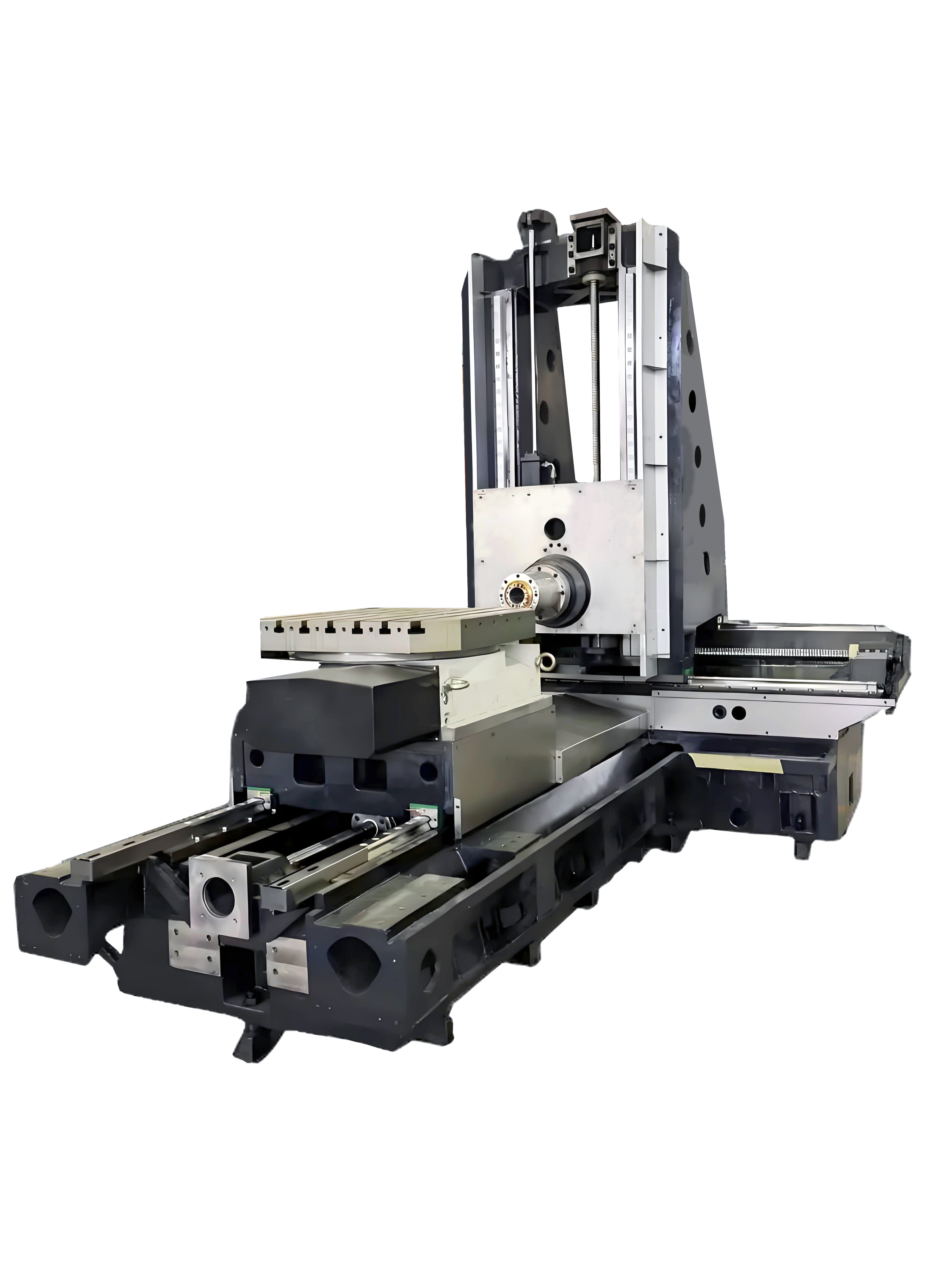

■   Machine Structure HMC series of machine tools adopts an advanced T-shaped integral bed structure, gantry-type column, and a front-hung box layout. It features strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with the main focus on low center of gravity, anti-twist, anti-rust, heavy cutting, and high material removal efficiency. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs of the castings are optimized to achieve the best bed strength. Additionally, the base and Z-axis column have been specially reinforced to make the bed structure more suitable for heavy cutting and increase the tool life.of the castings, making the bed strength optimal. Additionally, special reinforcement structures are applied to the Y-axis base and Y-axis column to make the bed structure more suitable for heavy cutting and increase the tool life.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide
Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.	The double lead precision worm gear and worm achieve zero clearance transmission and a maintenance-free lifespan of 20,000 hours. It also features a large transmission ratio, smooth transmission, and self-locking properties, making it particularly suitable for milling operations.	Imported P4 grade precision turntable bearings are selected, featuring three rows of rollers that respectively provide axial and radial support. This results in a large clamping torque on the worktable surface and a strong anti-overturning torque.
Standard equipped with chain-typechip conveyor and small iron chip cart.		High-quality disc-type /Umbrella-type ATC Tool magazine

Use Scenarios

Heavy-Duty Machining in Automotive Components Production

In automotive manufacturing plants, the HMC630 performs pivotal milling operations on large, complex parts such as engine blocks and transmission housings. Its rugged design and 1200 kg load rating support machining these heavy workpieces in a single fixture setup, reducing handling errors and improving accuracy. The spindle’s BT50 taper and robust power profile enable it to efficiently cut thick materials, meeting demanding tolerance specifications. Integration with CNC systems like FANUC enables synchronization with upstream and downstream manufacturing stages, fostering smooth workflow integration and higher throughput in automotive production lines reliant on cnc machines and precise machining centers.

Precision Mold and Die Manufacturing Applications

The HMC630 is vital within mold and die shops requiring stable and repeatable machining for high-rigidity components. Its accurate positioning system (0.01 mm) and tool-changing efficiency accelerate multi-pocket and complex contour milling essential in die manufacturing. The machine’s structural stiffness minimizes deflection during deep pocketing and heavy face milling, maintaining tight geometrical standards. Integration with leading cnc mill controllers ensures compliance with industry quality standards, optimizing production cycles. Its adaptability to small-batch and prototype runs aligns with the dynamic requirements of precision tooling and mold shops, enhancing operational flexibility.

FAQ

What types of materials can the HMC630 horizontal CNC machine handle?

Our HMC630 is engineered for heavy cutting tasks on large, thick materials such as steel, cast iron, and aluminum alloys. Its high rigidity and BT50 spindle with 15/18 kW power deliver stable, precise machining on tough industrial components, making it ideal for CNC machining center for sale buyers needing durable performance.

Can you customize the HMC630’s CNC system to fit my factory’s existing setup?

Yes, we offer compatibility with multiple CNC systems including FANUC, Siemens, SYNTEC, KND, and Mitsubishi. This versatile configuration allows easy integration into various production environments, ensuring our cnc machine factory solutions meet your operational control and automation needs.

Do you provide installation and on-site technical support for the HMC630?

We provide comprehensive after-sales service including installation guidance and setup support to ensure smooth commissioning of your horizontal machining center. Our team is available 24/7 for technical support to minimize downtime and maintain optimal machine performance.

What maintenance requirements should I expect for the HMC630 horizontal machining center?

Our HMC630 features a maintenance-friendly transmission and reinforced structural components for long tool life and stability under heavy cutting. Routine checks on lubrication, cooling, and 24-tool ATC system ensure consistent accuracy, helping you maximize uptime and machine reliability.
