HV5F-800

Optimized for Heavy-Duty Precision Manufacturing

The HV5F-800 gantry-type cnc machine is engineered for enterprises requiring substantial five-sided machining and heavy cutting operations. Its target users include aerospace, automotive, and mold-making professionals needing a stable platform with large X, Y, and Z travels and capacity for big workpieces. This makes it suitable for precise prototyping and large-volume production within demanding industrial settings. Designed as a reliable asset, it suits companies invested in advanced cnc milling machines and customized production workflows, enabling efficient integration into complex manufacturing cells.

Advanced Structural Design and Technical Specifications

Built on a fixed gantry column integral bed with a large-span H-shaped gantry, the HV5F-800 ensures exceptional rigidity for sustained accuracy under high-load conditions. The machine incorporates a 800 x 800 mm workbench, BT50 spindle taper running up to 6000 rpm, and a 24-tool disc magazine for versatility and productivity. Its four-roller linear guide base and precision components from THK, PMI, and HIWIN guarantee positioning accuracy within 0.012 mm and repeatability to 0.008 mm. These measurable specifications affirm its capability to maintain stability during intense cnc manufacturing cycles and complex multi-axis machining tasks.

Broad Industrial Applications with Enhanced Workflow Efficiency

The HV5F-800 supports five-axis, five-sided machining ideal for aerospace parts, automotive transmission housings, and mold and die manufacturing. Its robust B-axis functionality facilitates complex contouring and 3D pocketing in a single setup, significantly reducing cycle times and improving throughput. In-process inspection and fixture design validation become streamlined with this system, enhancing compliance with high-precision engineering standards. The machine empowers manufacturing facilities focused on large-scale prototyping, pre-production validation, and precision multi-face machining applications within the vertical machining and cnc mill sectors.

Product Advantages

Robust Structural and System Design Enhances Performance

The machine’s fixed gantry column integral bed and front-hung box gantry configuration provide superior rigidity and anti-twist resistance under heavy load, critical for achieving consistent machining quality. Its heavy-duty four-roller linear guides stabilize linear motions, reducing vibration and deflection. Reinforced castings optimized through finite element analysis further augment structural integrity. This design supports long tool life and high material removal rates. Incorporating high-grade precision parts and a 24-tool magazine aligns the HV5F-800 with advanced vertical machine supplier standards, guaranteeing reliability in continuous industrial CNC environments.

Exceptional Usability and Longevity for Industrial Operators

Performance-wise, the HV5F-800 delivers stable, repeatable accuracy, meeting stringent tolerances necessary for complex components. Its robust spindle, with 15/18 kW power and 6000 rpm speed, accommodates a wide material range. The workbench size and large travel dimensions enable machining of sizable parts without repositioning, improving operational efficiency. User-centric features such as chain-type chip conveyors and selectable precision turntables enhance uptime and maintenance cycles. This solution caters effectively to professional users sourcing reliable cnc machine tools optimized for productivity and lifecycle costs.

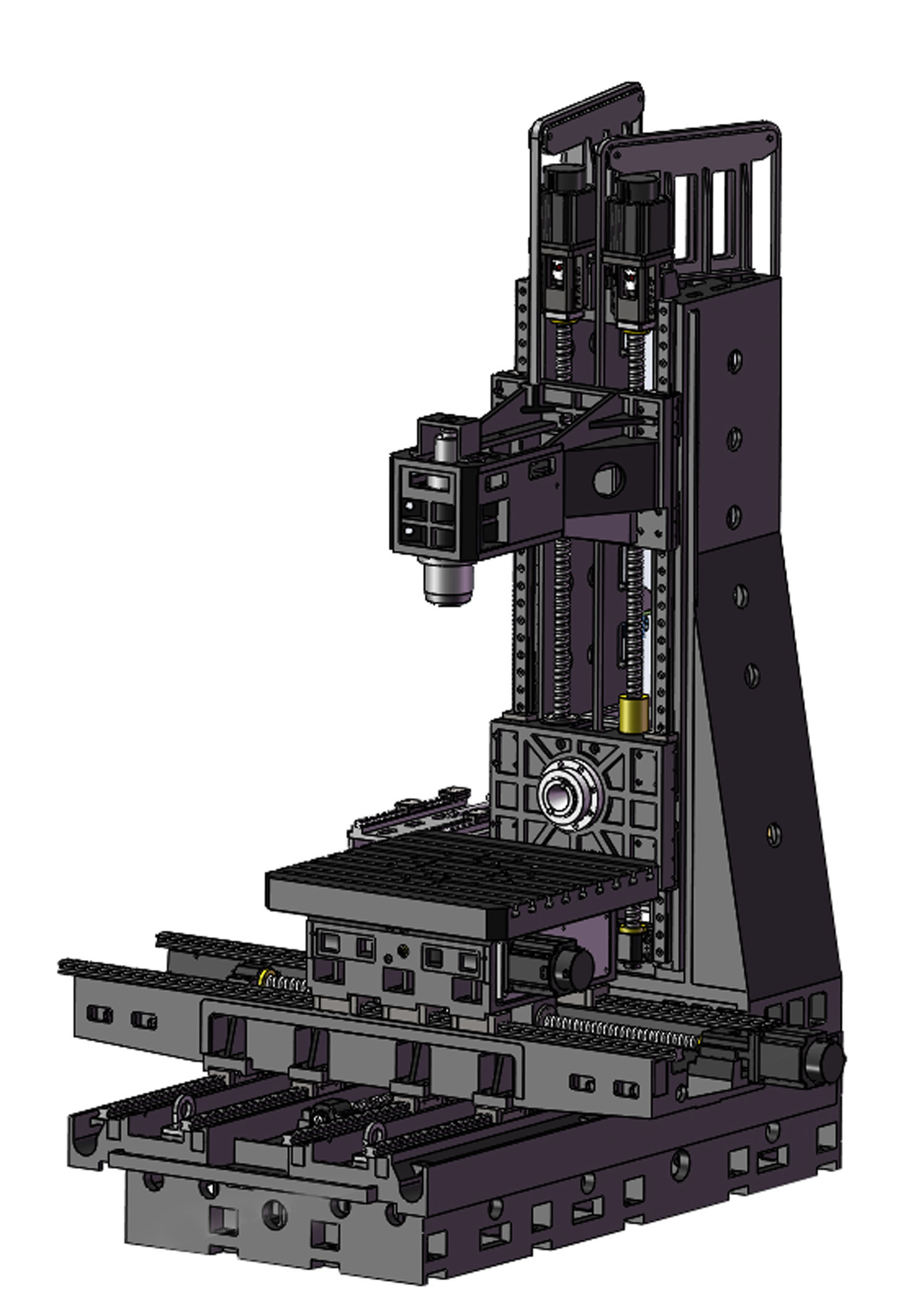

■   Machine Structure HV5F series machine tools adopt a fixed gantry column integral bed structure, featuring a large-span H-shaped gantry column and a front-hung box layout. Coupled with a wide and heavy four-roller linear guide layout base, the machine tools have strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with a focus on low center of gravity, anti-twist, and suitability for heavy cutting. Finite element analysis (FEM) is applied to optimize the shape and position of the reinforcing ribs of the castings, achieving the optimal strength of the bed. Additionally, the base and Y-axis column have been specially reinforced to make the bed structure more suitable for heavy cutting and increase the tool life.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide
Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.	The double lead precision worm gear and worm achieve zero clearance transmission and a maintenance-free lifespan of 20,000 hours. It also features a large transmission ratio, smooth transmission, and self-locking properties, making it particularly suitable for milling operations.	Imported P4 grade precision turntable bearings are selected, featuring three rows of rollers that respectively provide axial and radial support. This results in a large clamping torque on the worktable surface and a strong anti-overturning torque.
Standard equipped with chain-typechip conveyor and small iron chip cart.		High-quality disc-type /Umbrella-type ATC Tool magazine

Use Scenarios

Five-Sided Machining for Aerospace and Automotive Component Production

In aerospace and automotive manufacturing lines requiring precise, multi-faceted component machining, the HV5F-800 plays a critical role as a five-axis cnc mill. Its capability to complete five-sided contouring in a single setup reduces fixture changes, minimizing potential alignment errors while accelerating throughput. Heavy roughing and finishing passes on bulk parts benefit from the machine’s rigid structural design and linear guide support, ensuring compliance with tight tolerances. By integrating with CAD/CAM systems and inspection tools, this machine facilitates seamless workflow integration in high-demand production environments.

Mold and Die Manufacturing with Multi-Face Complex Features

For the mold and die industry, precision and versatility are paramount. The HV5F-800’s multi-axis machining ability supports complex pocketing, surface finishing, and detailed 3D features on large molds and dies. Its stable spindle performance and precision positioning ensure high-quality finishes and dimensional integrity essential for tooling applications. The tool magazine accommodates diverse cutting tools to optimize cycle times without manual tool changes. Its inclusion in cnc machine factory operations enhances productivity by enabling comprehensive machining in fewer setups, aiding fast prototyping and production validation processes.

FAQ

What is the maximum workpiece size the HV5F-800 can handle?

Our HV5F-800 CNC machining center for sale features an 800 x 800 mm workbench with travels of 1400 mm (X), 800 mm (Y), and 800 mm (Z), supporting large, heavy workpieces up to 2000 kg. This capacity suits heavy-duty machining for large aerospace and automotive components.

Can the HV5F-800 be customized to meet specific machining requirements?

Yes, we offer customization options tailored to your production needs. The machine supports a 24-tool disc-type magazine and can be fitted with precision turntable options and bespoke control components to optimize your cutting processes and tooling configurations.

Do you provide installation and after-sales maintenance services for this CNC machine?

We provide comprehensive after-sales service, including a one-year warranty and 24-hour lifetime technical support. Our team can assist with installation guidance and maintenance programs to ensure your vertical machining center for sale operates reliably under demanding conditions.

How is your logistics handled for international buyers purchasing from your CNC machine factory?

When you order from our CNC machine factory, we confirm trading terms such as FOB, CIF, or CNF per your requirements. Advance payment is typically 30%, with the balance payable after bill of lading. We coordinate shipment and documentation to ensure smooth delivery worldwide.
