XT06ZY

Precision Turning Solutions for Specialized Manufacturing

The XT06ZY high-precision cnc lathe is engineered for manufacturers requiring exacting tolerances on small to mid-sized turned parts. Targeted users include precision component producers and toolmakers who benefit from integrated turret tooling flexibility. Its motor-directly-driven gantry Y-axis turret enhances positional accuracy, making the system especially suited for applications demanding simultaneous multi-axis control. As a product from a reputed cnc machine factory, it addresses the needs of industries where reliable, compact machining centers streamline prototyping and small batch production.

Key Technical Features Delivering High Efficiency

The XT06ZY incorporates a 12-station servo tool turret and an 8” hydraulic chuck, coupled with a spindle power range of 7.5/11 kW and a maximum spindle speed of 6000 r/min to ensure optimal material removal rates. Axis travels include X = 260 mm and Z = 380 mm with rapid feed rates up to 25 m/min, while axis torque remains consistent at 34.5 N·m across X, Y, and Z. Designed with HT300-grade castings that undergo tempering and aging for stress relief, this cnc machine offers rugged construction and long-term stability. These technical parameters position the XT06ZY as a high-performance cnc lathe within the precision machining spectrum.

Applications in Precision Parts Manufacturing and Process Development

Ideal for precision-driven environments, this machine supports tight tolerance turning, prototyping, and testing of components in sectors such as automotive parts, aerospace, and industrial tooling. It enables engineers to optimize tool turret indexing and leverage multi-axis milling capabilities within a compact footprint. By integrating advanced control and robust workholding, the XT06ZY facilitates efficient small-batch production and quality assurance workflows. As a part of multi-machine manufacturing lines, this cnc lathe supports seamless adaptation to varying process requirements, enhancing productivity for demanding cnc manufacturing operations.

Product Advantages

Designed for Robust Structural Integrity and Modular Versatility

The XT06ZY features an innovative motor-directly-driven gantry Y-axis tool turret that improves Y-axis positioning precision and milling rigidity. The 12-station servo turret design provides modular tooling flexibility, enabling efficient tool changes without sacrificing accuracy. Built on HT300-grade castings subjected to tempering and aging treatments, the machine frame ensures resistance to deformation under prolonged use. Compact dimensions and an option for a fully enclosed stainless steel inner protective layout enhance operational durability. This approach reflects advanced engineering from a leading cnc machine factory and exemplifies modern cnc machines design principles.

Enhanced User Experience through Performance and Operational Efficiency

Equipped with a powerful spindle motor and high-speed, high-torque axis drives, the XT06ZY offers rapid feed rates and stable cutting performance. The 8” hydraulic chuck secures diverse workpiece sizes, facilitating rapid setup and reducing downtime. Its compact footprint supports installation in space-constrained production environments. The machine’s user interface and control systems prioritize precision control and repeatability, delivering consistent results ideal for complex machining and reducing scrap rates. These attributes align with the exacting demands of cnc turning manufacturers looking to maximize ROI on precision turning assets.

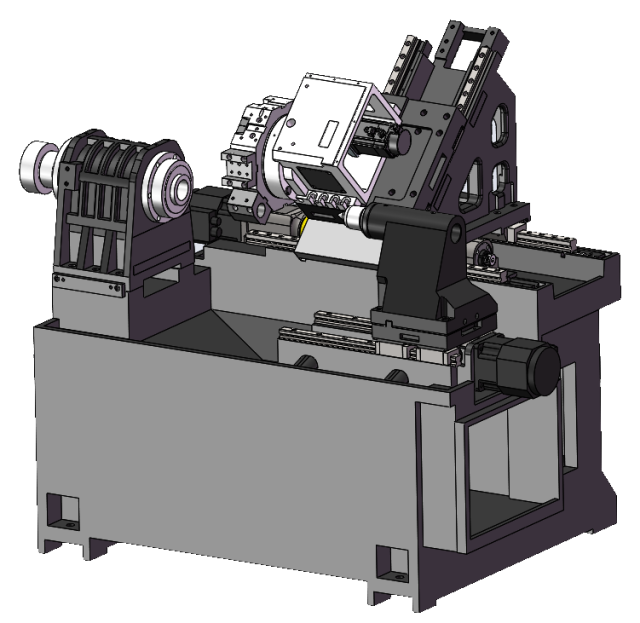

Machine Characteristics ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy.

■  Specifications

■  Expandable functions of machine tools

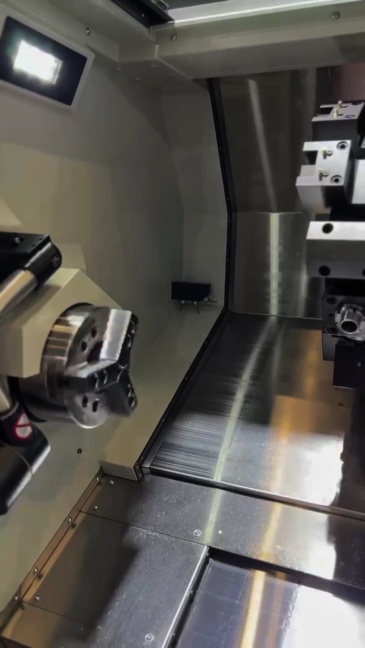

Fully enclosed stainless steel inner protective layout The entire series employs a fully-enclosed stainless steel inner protective sheet metal design. Its scientific layout, precision engineering, and superior sealing ensure reliable waterproof and oil-resistant performance during operation.

Use Scenarios

Precision Component Prototyping in Automotive Manufacturing

In automotive component manufacturing facilities, the XT06ZY serves a critical role in prototyping and small-batch runs of precision parts. Its 12-station tool turret enables rapid tooling changes necessary for varied prototype geometries, while the motor-driven Y-axis turret allows for multi-axis milling capabilities on a lathe platform. The machine’s stable HT300 cast body and high spindle speeds meet stringent tolerance requirements synonymous with automotive standards, integrating efficiently into lean manufacturing cells and quality verification workflows. This makes it invaluable as a cnc lathe within automotive cnc manufacturing lines.

In-House Precision Turning Validation & Operator Training

Manufacturers and tooling suppliers utilize the XT06ZY as a turnkey solution for validating precise turning processes and operator skill development. The machine’s advanced control over the 12-station servo turret facilitates testing of diverse tooling setups and complex part cycles. Its compact size suits controlled training environments, while the fully enclosed stainless steel protection provides safety during operator interaction. Integration into training programs for cnc machine dealers ensures technicians develop expertise on industry-standard machinery, supporting consistent production quality and enabling seamless transition from prototyping to production machining.

FAQ

What types of materials can the XT06ZY CNC lathe process?

The XT06ZY is designed for machining small- to mid-sized parts with high precision, suitable for metals commonly used in CNC manufacturing such as steel and aluminum alloys. Its 7.5/11 kW spindle power and 6000 r/min speed enable efficient processing on typical materials used in cnc machine operations.

Can the XT06ZY be customized to fit specific production needs?

Yes, we offer customizable options including a fully enclosed stainless steel inner protective layout for harsh environments. The 12-station servo tool turret and motor-driven Y-axis turret also provide flexible tooling setups to meet your precision turning requirements with this cnc machining center for sale.

What installation and setup support do you provide after purchase?

We provide technical support throughout installation and commissioning phases, ensuring the XT06ZY is properly configured for your application. Additionally, our team guides operators on utilizing the slant bed tool turret efficiently to optimize your CNC turning workflows.

How does your after-sales service work for the XT06ZY lathe?

We offer a one-year warranty and 24-hour lifetime technical support to ensure your machine operates reliably. Our service includes remote troubleshooting and assistance for maintaining precision in your cnc turning manufacturer operations, supporting your production stability long-term.
