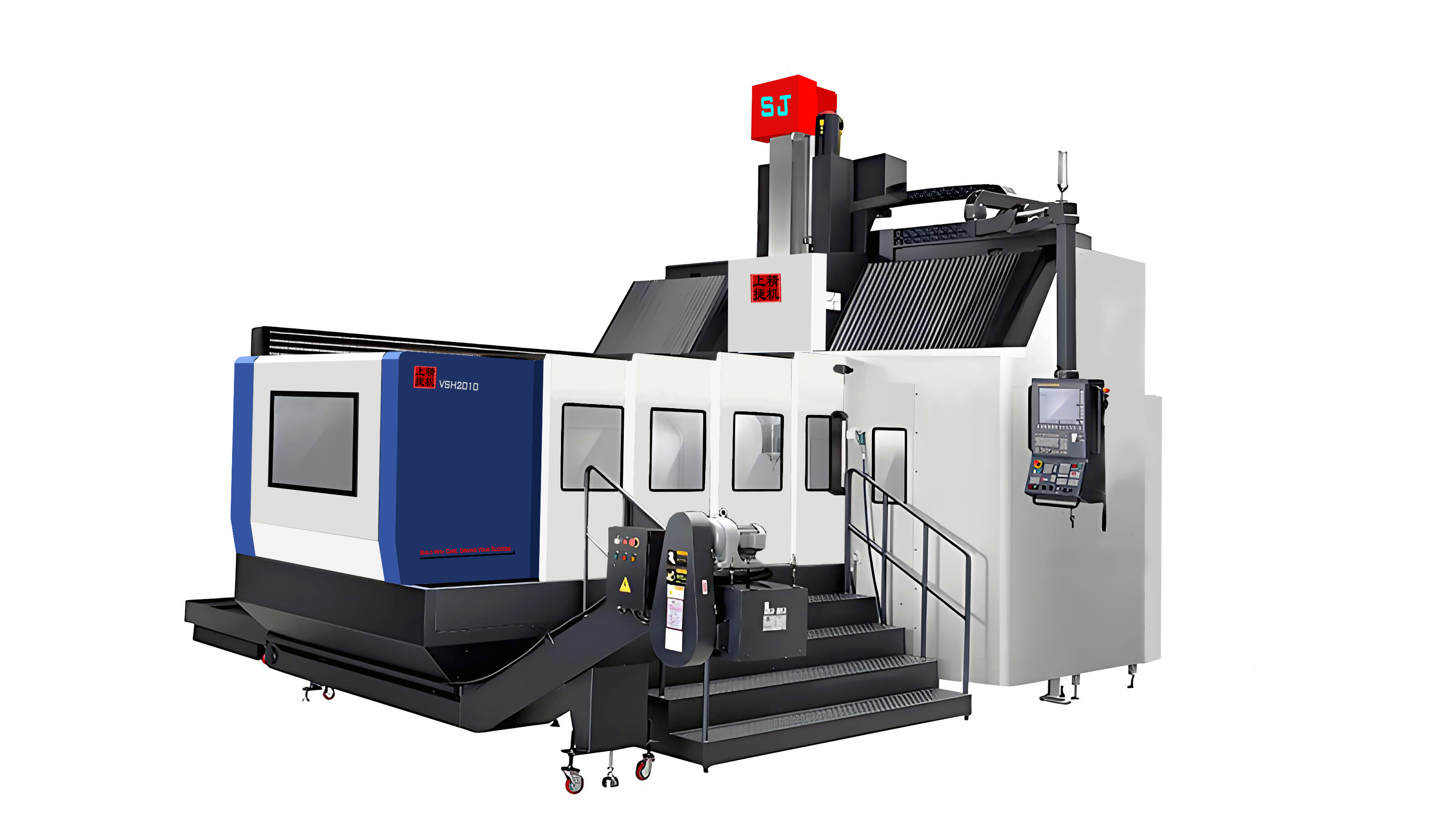

Optimized Gantry Solution for Large-Scale Machining

The GS2015 gantry machining center, developed by a prominent vertical machining center manufacturer, is optimized for machining large, heavy workpieces with superior rigidity and stability. This solution targets industrial users requiring high accuracy and processing capability for oversized metal components. Combining the gantry structure strength with features typical of a cnc vertical machining center, it supports efficient milling, roughing, and finishing tasks. Its large workbench and extensive X/Y/Z travels accommodate diversified applications without compromising precision, making it suitable for manufacturers focusing on complex, large-scale parts production.

Advanced Mechanical Design and CNC Integration

From a technical standpoint, the GS2015 incorporates finite element method (FEM) optimized bed reinforcements, along with strengthened X-axis base and Y-axis crossbeam supports, to maintain structural integrity under heavy loads. The four-track Z-axis ram design enhances rigidity and minimizes accuracy loss during deep cutting operations. Key measurable specifications include a 2000x1300 mm workbench, 2100/1500/800 mm X/Y/Z travels, and fast movement speeds of up to 20 m/min on X and Y axes. Compatible with major CNC control brands such as FANUC, Siemens, SYNTEC, and Mitsubishi, this product integrates seamlessly into diverse manufacturing systems, reflecting modern vertical machine manufacturers’ standards for reliability and precision.

Versatile Industrial Applications and Production Efficiency

The GS2015’s robust construction and advanced dynamic capabilities make it ideal for industries requiring the milling and contouring of large metal plates, blocks, and heavy components. It enables precision multi-pass pocketing and surface finishing on oversized assemblies, enhancing overall production throughput. Additionally, its compatibility with various CNC vertical machining center systems allows it to adapt to factory automation and production lines, facilitating retrofit projects or expansions by vertical machine suppliers. This results in improved ROI for manufacturing enterprises focused on prototyping, tooling, and mass production of large-scale fixtures and molds.

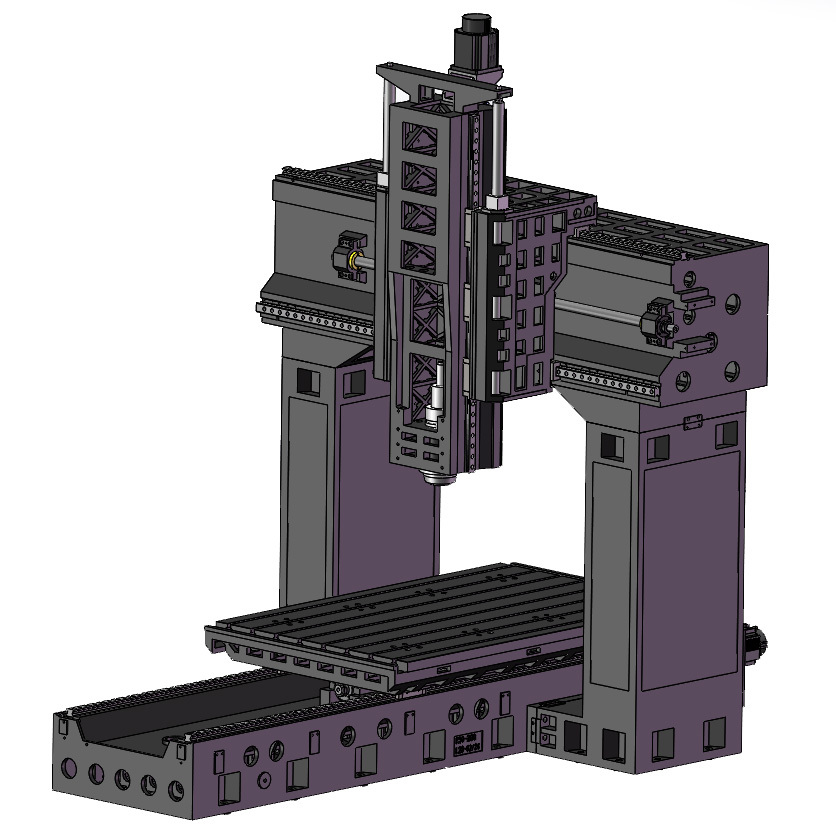

■   Machine Structure GS series gantry machining centers adopt a gantry structure, inheriting the strong rigidity, symmetrical structure and high stability of traditional gantry machines, while also taking into account the rapid movement capability of vertical machining centers, significantly enhancing the processing efficiency of large workpieces for customers. By applying the finite element analysis (FEM), the shape and position of the casting reinforcing ribs were optimized to achieve the optimal strength of the bed. Additionally, special reinforcing structures were designed for the X-axis base and Y-axis crossbeam to ensure the bed's stability and prevent deformation.

The four-track design of the Z-axis ram not only provides sufficient rigidity but also overcomes the low-speed crawling phenomenon and the defect of precision loss over time of the traditional hard rail.

■  Specifications

Product Advantages

Structural Integrity and Modular Engineering Benefits

This gantry machining center benefits from the integration of FEM-analyzed structural components, including reinforced frame and beam elements that significantly reduce deformation during machining. Such enhancements, characteristic of advanced vertical machining center manufacturers, improve machine longevity and maintain precision under demanding workloads. The incorporation of four-track Z-axis ram systems and precision linear guides from premium suppliers like THK ensures smooth operation and enhanced stiffness. Moreover, modular CNC control system compatibility, typical of cnc vertical machining center manufacturers, enables easy customization and integration, catering to varied industrial control requirements and facilitating maintenance and upgrade paths.

Enhanced Operational Performance and User-Centric Features

Performance-wise, the GS2015 offers rapid axis movement speeds and versatile spindle configurations with BT50 taper options, supporting a broad range of tooling requirements. The 24-tool disc-type magazine optimizes tool change efficiency, reducing downtime in high-mix production scenarios. Designed by a reputed vertical machine supplier, the system features robust mechanical drive components powered by regulated air pressure, elevating operational reliability. User interfaces compatible with multiple CNC brands further streamline programming, diagnostics, and process management, providing technical users with precise control and adaptability essential for complex machining tasks, thereby maximizing productivity and minimizing operator intervention.

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide	THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw
High-quality tool clamping cylinder	NSK, SKF, FAG P4 grade imported angular contactpaired bearings	Precision high-rigidity coupling	Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine		Standard equipped with chain-typechip conveyor and small iron chip cart.
