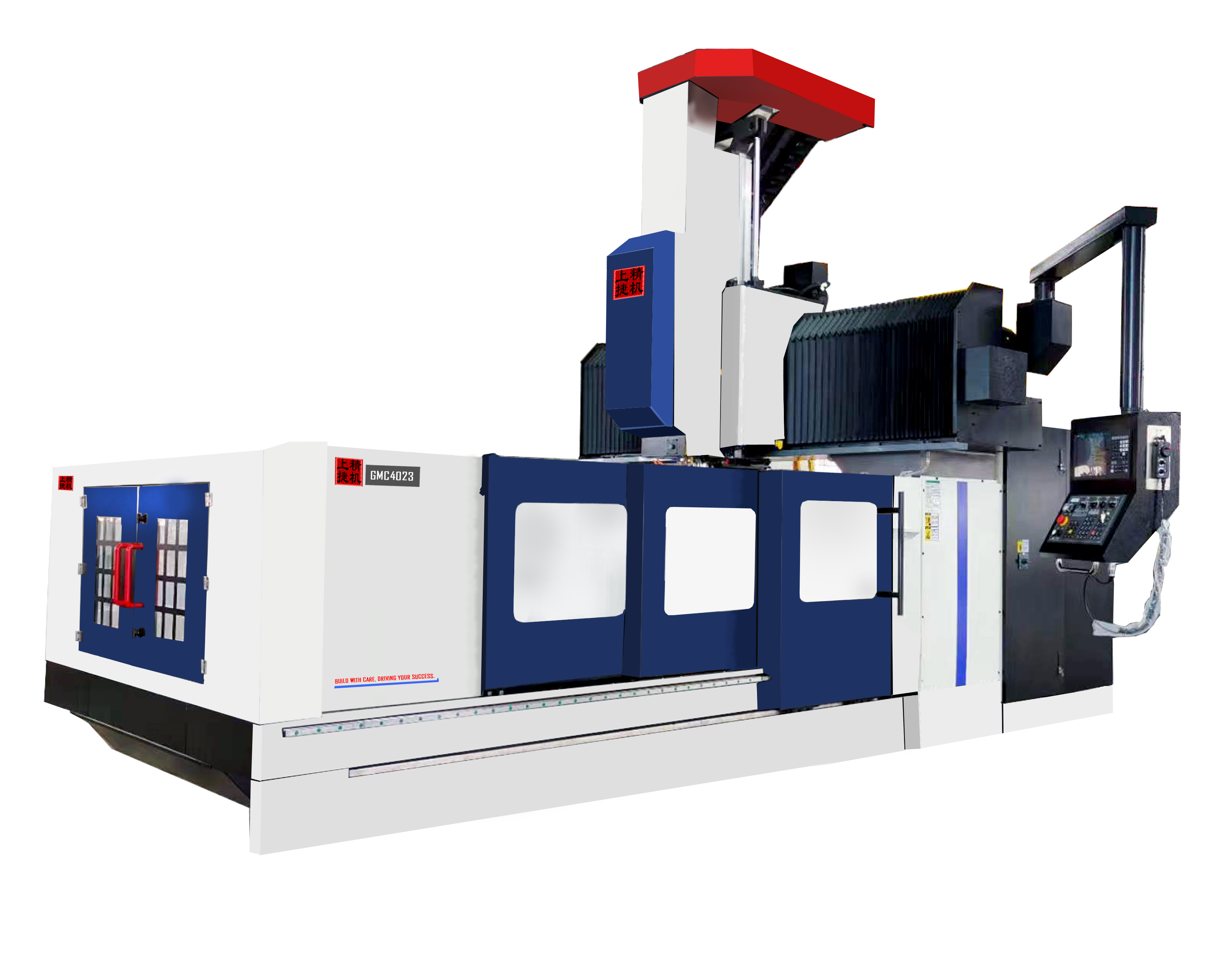

GMC2018--GMC4028

Optimized Heavy-Duty Gantry CNC Machining for Industrial Users

The GMC2018-GMC4028 series serves industrial manufacturers requiring precise, durable solutions for machining large parts and molds. Designed as a gantry cnc machining center, it targets sectors such as automotive, aerospace, and heavy equipment production where high rigidity and dimensional accuracy over extended travels are essential. This range suits users handling complex geometries and large-scale components, enabling them to maintain machining precision despite heavy loads and continuous operation demands, thus maximizing productivity in specialized manufacturing environments.

Technical Innovations and Measurable Specifications in Gantry Milling Machine Design

These machines leverage a robust gantry mill architecture, incorporating HT300 castings optimized by Finite Element Analysis and reinforced structures along the X and Y axes. The four-track Z-axis ram enhances static stiffness and operational stability. With oversized ball screws and precision roller-type linear guides, the gantry milling machine ensures minimal deformation and consistent repeatability. The patented rotating nut device for long X-axis travel preserves lead screw integrity and service life. Key specs include X-axis travels up to 4000mm and workbench loads up to 18 tons, backed by advanced CNC control systems such as FANUC or Siemens for precise axis synchronization.

Industry Applications and Integration of the CNC Gantry Milling Machine

The cnc gantry milling machine excels in heavy roughing, finishing, and precision pocketing on large, complex molds and structural components. Its integration supports prototyping, iterative testing, and pre-assembly processes in automotive and aerospace parts fabrication. The machine’s structural stability enables long-travel finishing passes critical in mold making and prototype development. It also fits mixed-production environments requiring adaptable machining capacity. This solution streamlines workflows by providing stable, repeatable precision across large workpieces, minimizing downtime and quality deviations in high-demand manufacturing contexts.

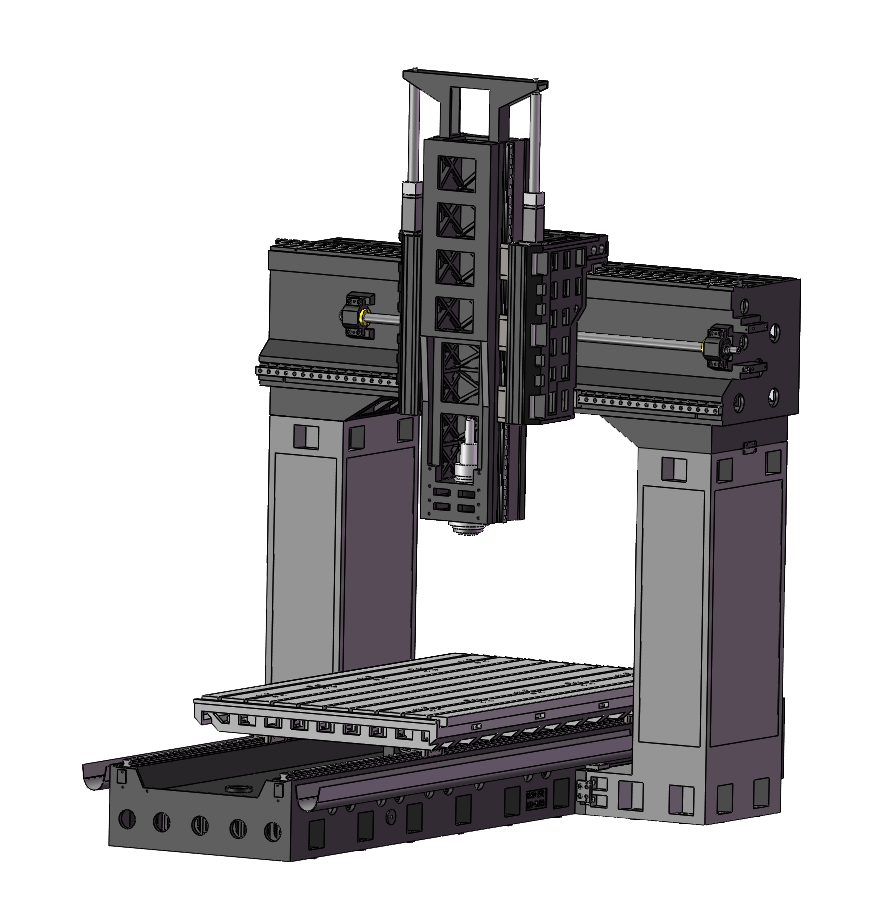

■   Machine Structure GMC series of machine tools adopts a gantry structure, with enlarged column and crossbeam box structures for support, ensuring excellent rigidity of the entire machine. The castings of the machine tools are made of HT300 high-grade material, which is of high strength, strong resistance to deformation, and has excellent shock absorption capacity. Finite Element Analysis (FEM) is employed to optimize the shape and position of the reinforcing ribs of the castings, achieving the optimal strength of the machine bed. Additionally, special reinforcement structures are applied to the X-axis base and Y-axis crossbeam to make the machine bed more stable and prevent deformation.
The four-track design of the Z-axis ram not only provides sufficient rigidity but also overcomes the low-speed crawling phenomenon and the defect of precision loss over time of the traditional hard rail.
For X-axis travel over 4 meters, a standard lead screw support device is provided, effectively preventing the lead screw from sinking, enhancing its lifespan and maintaining the X-axis running accuracy.
Machines with an X-axis travel of over 6 meters are standardly equipped with a patented rotating nut device. This device can significantly enhance the machine tool's running accuracy, overcome the unstable running accuracy of the X-axis lead screw caused by the twisting of the long lead screw, and because the lead screw does not move, it can greatly increase its service life.

Product Advantages

Structural and System Design Benefits of the CNC Gantry

The GMC series features a double-column gantry structure constructed with HT300 castings subjected to natural aging for stress relief. The design incorporates robust reinforcement ribs validated through Finite Element Analysis, preventing deformation during high-load milling. Its four-track Z-axis ram and welded X-axis base contribute to geometric stability, while the patented rotating nut device on the X-axis eliminates lead screw sinking in long-travel configurations. Equipped with high-precision roller linear guides and oversized ball screws, this gantry cnc machine balances rigidity with thermal stability, ensuring long-term operational accuracy and structural reliability in demanding machining scenarios.

Performance Efficiency and User-Oriented Functionality

With maximum spindle speeds of 6000 rpm and motor torques ranging up to 105N.m, the cnc gantry milling machine supports both heavy roughing and fine finishing operations. The advanced CNC systems (FANUC, Siemens, etc.) facilitate seamless axis coordination and flexible tool management configurations, including optional disc-type tool magazines. Its sizable workbench accommodates up to 18 tons, enabling handling of diverse workpiece geometries. The inclusion of protective lead screw support devices and stable structure reduces maintenance needs and enhances operational uptime. Overall, this solution delivers consistent machining precision, extended service life, and adaptability crucial for industrial users aiming for cost-effective, precision manufacturing.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide	THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw
High-quality tool clamping cylinder	NSK, SKF, FAG P4 grade imported angular contactpaired bearings	Precision high-rigidity coupling	Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine		Standard equipped with chain-typechip conveyor and small iron chip cart.

About Us

Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., established in 2007, operates a 20,000m² workshop specializing in CNC machine tools. Our product range includes CNC turning centers, vertical/horizontal machining centers, CNC gantry machining centers, and precision grinding machines. We aim to be a comprehensive equipment supplier by offering diversified, precise, intelligent, and serialized products.

We are ISO9001 and ISO14001 certified, with full industrial manufacturing capabilities. Our dedicated departments cover product design, quality control, casting processing, sheet metal fabrication, painting, precision parts machining, and final assembly/testing. All machines are independently developed from design through final commissioning, ensuring strict quality control. Our facility is equipped with high-precision gantry machining centers, CNC lathes, laser cutters, and bending machines. We use advanced measuring instruments including laser interferometers and dual-axis electronic autocollimators. Castings use high-grade HT300 material that undergo tempering and natural aging to release internal stress, guaranteeing machine stability.

Adhering to the corporate values of rigorousness, pragmatism, honesty, and responsibility, we commit to providing reliable equipment that meets customer requirements. Contact us now for your custom quote!

FAQ

What materials are the castings of the GMC series gantry mill made from?

The GMC series gantry machines use HT300 high-grade castings for the machine’s structure. After tempering treatment and natural aging, these castings release internal stresses, enhancing rigidity and ensuring long-term stability of the gantry mill during heavy cutting and precision machining.

Can the CNC gantry machining center be customized for longer travel distances?

Yes, models like GMC4028 offer X-axis travels up to 4000mm and Y-axis travels up to 2800mm to accommodate large workpieces. The patented rotating nut device on models with X travel over 6 meters improves accuracy and screw service life, providing customized precision for extended machining ranges in the CNC gantry machining center.

What installation support is provided for the GMC series gantry milling machine?

Our professional team supports installation with detailed guidance and commissioning to ensure proper setup. The advanced CNC systems, including FANUC, Siemens, SYNTEC options, are configured to optimize machine operation. On-site technical support is available to maintain performance of your gantry milling machine.

How is maintenance handled for the CNC gantry machines, particularly regarding precision components?

Maintenance includes checking the oversized ball screws, roller-type linear guides, and the four-track Z-axis ram, which are critical for sustained *gantry CNC* accuracy. We provide a one-year warranty and 24-hour technical support to assist with preventative maintenance, ensuring high rigidity and extended machine life.
