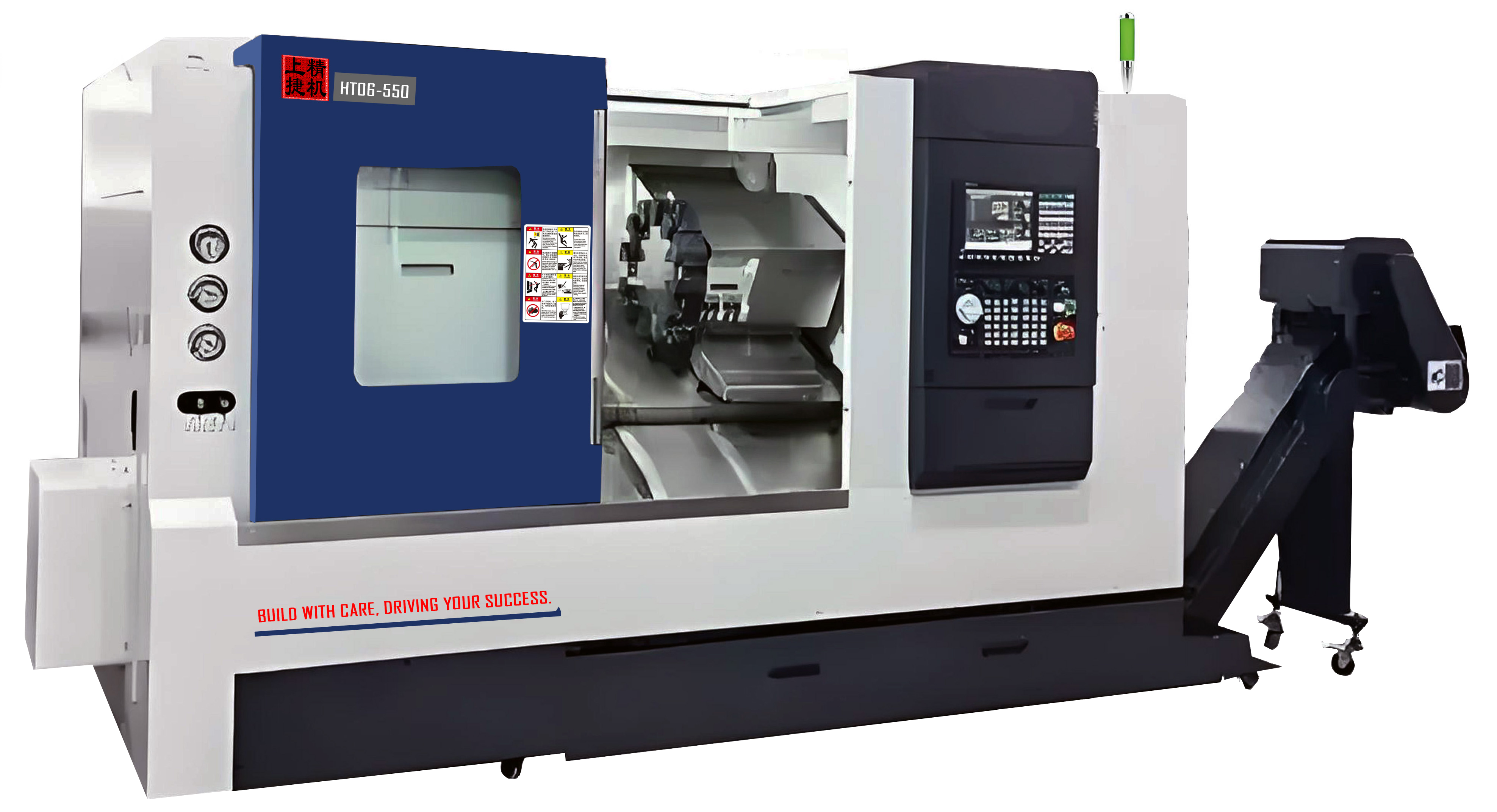

HT08DS-350/550/750

Optimized Heavy-Duty Turning Solution for Manufacturing Challenges

The HT08DS-350/550/750 heavy-duty turret turning center is engineered to meet the rigorous demands of manufacturers specializing in large component machining. Designed for processing sizable discs and shafts, this cnc lathe targets production environments requiring enhanced rigidity and precise dimensional accuracy. Its scalable models accommodate variable part lengths from 350 mm to 750 mm, enabling customization based on workflow demands. Industrial users such as automotive suppliers and heavy equipment fabricators benefit from its integration into robust cnc manufacturing operations, supporting high-volume outputs with consistent repeatability and heavy cutting capacity.

Precision Engineering Featuring Advanced Mechanical Systems

This model incorporates an integrally cast tailstock rail and reinforced bed structure, significantly improving machine rigidity during heavy cuts. A 45-degree inclined saddle with large roller linear guides and precision-grade ball screws supports fine feed accuracy integral to the best cnc lathe performance. The spindle features an A2-8 nose and up to 4000 r/min speed, paired with X and Z axes travels of 230 mm and up to 850 mm, respectively, facilitated by rapid 30 m/min movements. Finite element analysis optimized bed ribbing ensures long-term durability and tool life extension. The machine’s Turn-Mill capability, employing a servo tool turret with 12/16 positions, enhances operational flexibility allowing combined turning and milling processes in one setup. These specifications align it well for integration via cnc machining center for sale channels seeking versatile, precision equipment.

Application Scope and Operational Value in Manufacturing

Industries requiring machining of large-diameter components—such as power generation, aerospace, and heavy automotive parts manufacturing—derive tangible value from the HT08DS. Its sub-spindle enables effective secondary operations, improving process efficiency and reducing cycle times. Programmable tailstock functionality facilitates complex geometries and extended part support, critical in maintaining high-quality standards throughout heavy-duty production cycles. The model’s robust spindle torque and hydraulic clamping system allow for aggressive cutting strategies without compromising surface finish or tolerances, supporting high-precision batch manufacturing. This flexibility complements offerings from top cnc machine dealers and cnc machine factory partners focused on advanced mill-turn machining solutions.

Structural and System Design Excellence for Stability

The HT08DS Series benefits from a design emphasizing structural integrity and modular adaptability. The integrally cast tailstock rail coupled with reinforced bed structures offers superior resistance to deformation and vibration under the strain of heavy cutting loads. FEM-optimized reinforcing ribs in the construction maximize bed rigidity, resulting in enhanced positional accuracy and longer durability. The 45° inclined saddle design paired with large roller linear guides reduces wear and improves feed consistency. The advanced servo turret system, with multiple tool positions, integrates seamlessly with turn-mill operations, providing expanded functionality within a compact footprint. These features make the unit a prime option among cnc machining center for sale solutions emphasizing reliability and engineering sophistication.

Performance Enhancements Deliver Operational Efficiency

From a performance perspective, the HT08DS turning center delivers rapid feed rates up to 30 m/min on both axes, combined with high spindle torque and speeds accommodating a wide range of heavy-duty machining tasks. The programmable tailstock and sub-spindle enable complex multistage operations without manual repositioning, optimizing workflow continuity. Operators benefit from versatile tooling arrangements via the 12 or 16-position servo turret, improving setup flexibility and reducing changeover times. This efficiency supports manufacturing environments seeking to maximize throughput and minimize downtime, critical factors when selecting from cnc turning manufacturers and cnc machine dealers offering robust, user-focused solutions in metal cutting automation.

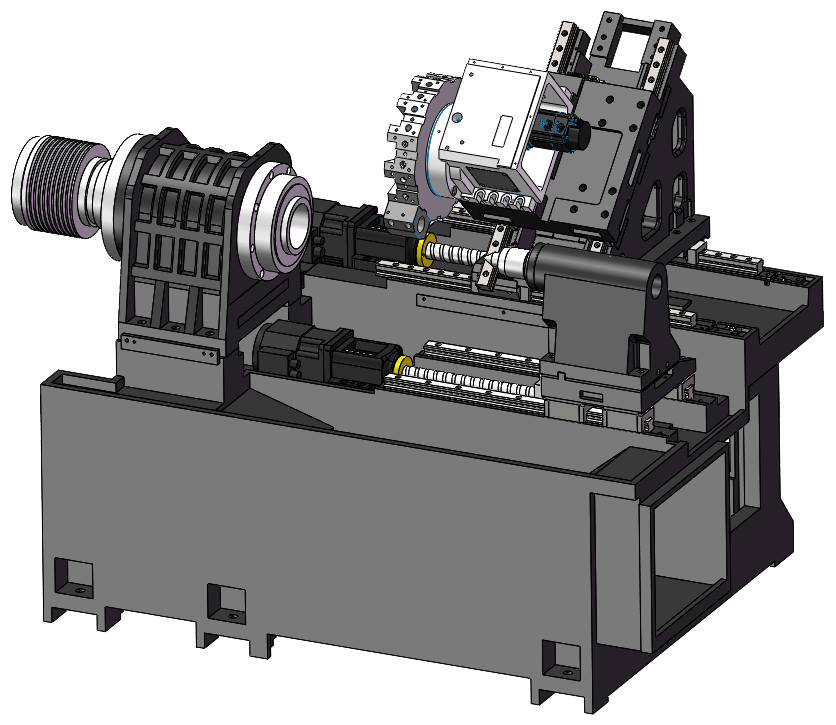

Machine Characteristics The HT series is a heavy-duty turret turning center, specifically designed for heavy cutting of large discs and shafts. The tailstock and sub-spindle rail parts are all integrally cast and have undergone reinforcement and optimization treatment. The extra-wide bed is more conducive to improving processing stability and is particularly suitable for turning and milling compound processing requirements. The 45° inclined saddle, combined with large-sized roller linear guides and precision-grade ball screws, enables it to handle various processing tasks and maintain the bed accuracy for a long time. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.

■  Specifications

■  Expandable functions of machine tools

Turn-Mill    The entire HT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.

Programmable Tailstock   The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.

Use Scenarios

Heavy-Duty Disc and Shaft Production in Automotive Manufacturing

Within automotive and heavy machinery sectors, the HT08DS serves as a pivotal asset for machining large discs and shafts where rigidity and precision are paramount. The machine’s reinforced bed structure ensures minimal deflection under high cutting forces associated with heavy-duty turning. Its multi-tool turret and programmable tailstock options reduce cycle times by enabling complex, multistage machining processes in a single operating setup. Integration with plant-wide cnc manufacturing workflows and digital process control systems enhances process repeatability and quality consistency, aligning with industry standards for automotive part production. Such capabilities establish it as a reliable choice from cnc machine factory sources supplying precision lathe solutions.

Secondary and Turn-Mill Operations in Aerospace Component Fabrication

The HT08DS provides seamless transition between turning and milling operations via its servo powered tool turret, optimizing aerospace part machining tasks requiring intricate geometries and tight tolerances. Its sub-spindle allows for secondary operation completion without requiring manual part handling, improving throughput while maintaining accuracy. The Turn-Mill capability supports machining combined features within one clamping, enhancing adherence to aerospace quality compliance and reducing human error. Its adaptability to high-precision finishing for heavy-duty materials aligns well with demands from vertical machine suppliers and those sourcing cnc machining centers for sale for precision aerospace manufacturing environments. Integration with CAD/CAM systems ensures streamlined programming and operational monitoring.

FAQ

What types of materials can the HT08DS-350/550/750 CNC turning center machine?

Our HT series heavy-duty turret turning center is designed to machine large discs and shafts with high rigidity and precision. It handles a wide variety of metals commonly used in heavy-duty parts production, facilitating cnc machining center for sale applications in automotive and industrial sectors.

Can you customize the tooling and turret options on the HT08DS models?

Yes, we offer customization including 12 or 16-position servo tool turrets and programmable tailstock options. This adaptability supports complex machining processes such as Turn-Mill operations, enabling multi-tool setups tailored to your production needs.

What installation and after-sales support do you provide for the CNC turning center?

We provide professional installation guidance and a one-year warranty on all machines. Additionally, we offer 24-hour lifetime technical support to ensure your cnc machining center operates reliably through its service life.

How do you handle shipping and payment for orders of CNC machines?

We confirm the trading terms with you before quoting, including FOB, CIF, or CNF. Common payment methods include T/T with 30% advance and balance upon bill of lading. L/C payments are also accepted to accommodate various buyer preferences in purchasing cnc machines.
