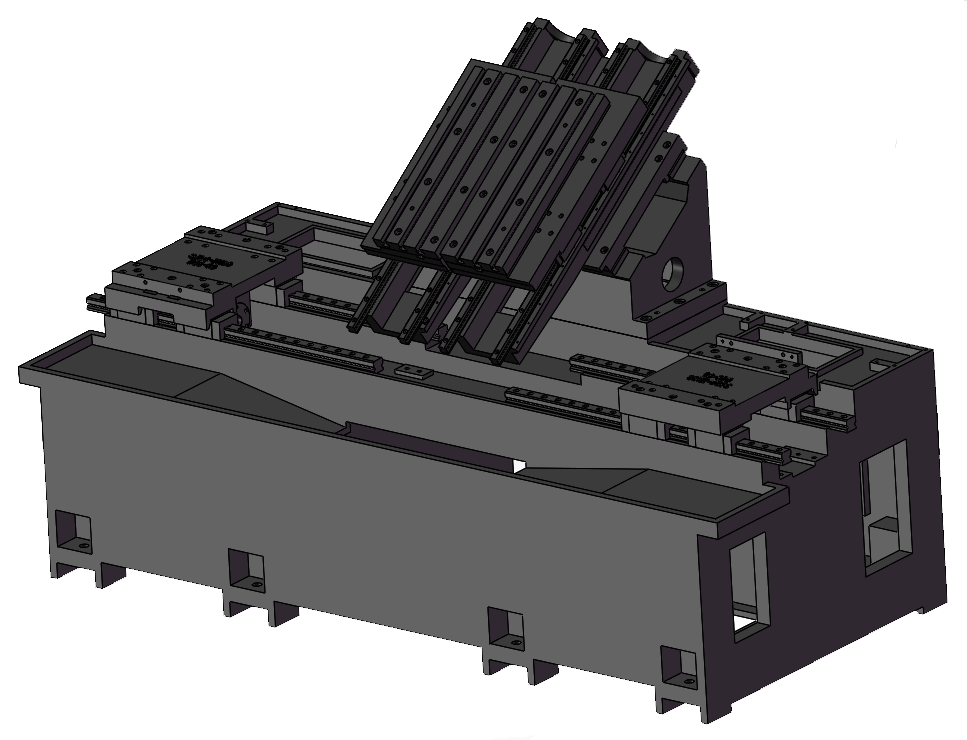

| ● Bed Structure The machine tool structure adopts an integral bed with a low center of gravity design. The wide and thick-walled bed base can significantly reduce the vibration generated by the machine tool during high-speed and heavy cutting, improving the machining accuracy of precision parts. By using finite element analysis (FEM), the shape and position of the reinforcing ribs of the casting are optimized to achieve the optimal strength of the bed. This makes the bed structure more suitable for heavy cutting and increases the service life of the cutting tools. |
The ET04P / ET05P CNC lathe offers dual-spindle turning and milling with high rigidity and precision. Ideal for complex parts, it integrates advanced features from top cnc machine dealers and cnc turning manufacturers.
Functional Positioning for Precision Multi-Tasking Manufacturing
The ET04P / ET05P models serve engineers and production specialists requiring an integrated solution for simultaneous turning and milling operations. Designed for small-to-mid-size parts, this dual-spindle lathe enhances workflow efficiency by minimizing setup times. Users in component manufacturing and rapid prototyping benefit from its combined milling and turning capabilities in a single clamping. This product is particularly suited for users relying on cnc machines from reputable cnc turning manufacturers, streamlining production processes by incorporating milling in a turning-centric platform, aligning with the needs of cnc machine dealers seeking versatile machinery.
Advanced Technical Architecture and Key Specifications
Incorporating a slant-bed design and permanent magnet synchronous electric spindles, the ET04P / ET05P ensure stable high-speed operations up to 6000 rpm. The system’s linear turret supports precise positioning across X1/X2 and Z1/Z2 axes with rapid feed rates of 25 m/min. Structural rigidity is achieved via large diameter roller guides and a robust 5” chuck, compatible with max swing diameters of 500 mm and bar-through capability up to 36 mm. Power input ranges between 5.5 and 12 kW spindle motors, delivering consistent torque of 18 N.m on both axes. These measurable specifications place it among leading cnc machining center for sale options, offering superior dimensional accuracy and automation support including optional automatic feeders.
Optimized Integration in High-Precision Production Environments
The ET04P / ET05P supports complex manufacturing workflows requiring minimal downtime and high repeatability. Its dual-spindle design facilitates simultaneous machining on both ends of components, reducing cycle times for batch production in automotive, aerospace, and precision equipment manufacturing. The incorporation of milling functions alongside turning streamlines production lines, making it a valuable asset in facilities prioritizing lean manufacturing and cnc manufacturing excellence. Its adaptability for unattended operation through automatic feeders also aligns with industry trends toward automation and efficient resource utilization, enhancing throughput within competitive vertical machine supplier frameworks.
Innovative Structural Design and System Integration
The ET04P / ET05P lathe’s slant-bed construction delivers enhanced rigidity and vibration dampening essential for precision machining. Dual-spindle capability allows parallel operation, doubling productivity without compromising positional accuracy. Roller-type guide rails contribute to superior stability and longer machine life. The fixed main spindle in the positive direction combined with power head milling capacity allows complex geometries to be machined in a single setup. Such structural designs reflect the expertise typical of leading cnc machine factories, ensuring seamless integration into diverse manufacturing cells requiring both cnc lathe and cnc milling machine functionalities.
Enhanced Performance Metrics and Operational Efficiency
This CNC lathe provides reliable, high-precision output with rapid axis feeds up to 25 m/min and robust motor torque for consistent cutting performance. The option for automatic feeders accommodates unmanned operation, reducing labor costs and increasing uptime. The combination of synchronous spindles without belt drives leads to improved energy efficiency and surface quality. The machine interface supports programming flexibility typical of advanced cnc machines, facilitating ease of use for production staff and engineers alike. These performance advantages underpin value propositions championed by cnc machining center for sale programs, addressing the growing need for multi-axis manufacturing efficiency in modern industrial settings.
■ Specifications
| Machine Type | ET04P / ET05P |
| Max. swing diameter | 500mm |
| Max. machining diameter on the saddle | 120mm |
| Max. bar through diameter | 36mm |
| Spindle nose | A2-4 / A2-5 |
| Spindle motor power | 5.5-12 KW |
| Spindle bore | 45mm |
| Max. spindle speed | 6000r/min |
| X1 axis | 320mm |
| X2 axis | 320mm |
| Z1 axis | 340mm |
| Z2 axis | 320mm |
| X axis rapid feed speed | 25m/min |
| Z axis rapid feed speed | 25m/min |
| X axis Max. torque of motor | 18N.m |
| Z axis Max. torque of motor | 18N.m |
| Pneumatic clamping | Spring collet |
| Hydraulic clamping Chuck Size | 5” |
| Machine size (L x W x H) | 2000x1350x1600mm |
| Standard weight | 3200KG |
■ Machine Characteristics
ET04P / ET05P

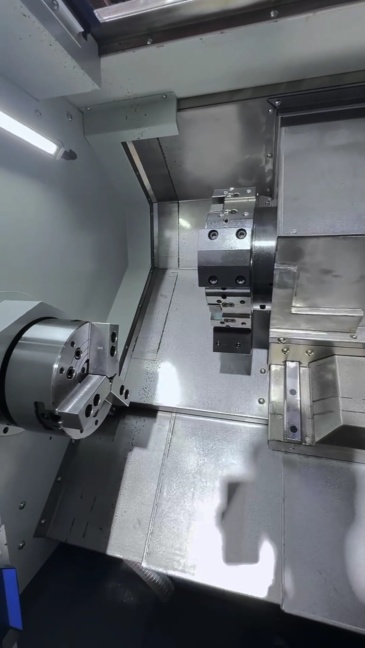

ET04P / ET05P model adopts a fixed main spindle in the positive direction, with the X1 axis carriage vertical to eliminate reverse clearance.
● Machine Characteristics

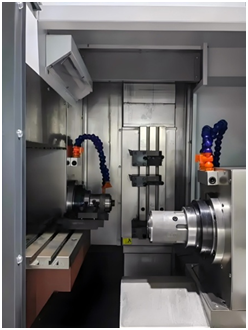

Both the main and auxiliary spindles adopt permanent magnet synchronous electric spindles, which have high power and strong force, without belt transmission. This enhances the dimensional stability and surface finish of the workpiece during high-speed turning. The spindle guide rails use large-sized and high-precision roller linear guides, which not only ensure the machining rigidity of the machine tool but also improve its machining accuracy.
Combined with the corresponding power head, it realizes the turning and milling compound function, enabling complex parts of customers to be processed in one clamping, completing all machining procedures.
ET04W and ET04P models can be equipped with an automatic feeder. With automatic feeding, all processing procedures on both sides of the parts can be completed automatically, achieving unattended operation and enhancing processing efficiency while reducing labor costs.
Use Scenarios
Precision Prototyping and Small-Batch Component Production
Within high-tech prototyping workshops and short-run production centers, the ET04P / ET05P lathe addresses demand for rapid iteration of dual-spindle turned parts featuring secondary milling without reclamping. Its combination of dual spindles and power head milling ensures that small-to-mid-size components can be accurately produced with minimal setup changeover. The high-speed 6000 rpm spindles and linear turret system guarantee fine tolerances necessary for aerospace prototypes and advanced automotive parts, blending well with existing cnc machines in prototyping labs. This integration reduces lead times and optimizes resource allocation, critical factors for CNC turning manufacturers focused on agile manufacturing.
Automated Bar-Stock Manufacturing for Mid-Size Parts
In large-scale production environments processing bar-stock components, the ET04P / ET05P’s 36 mm bar-through capacity and robust spindles provide continuous operation capability. The optional automatic feeder supports sustained unmanned machining, improving throughput in facilities prioritizing lean production strategies. Its rigid slant-bed and roller-guided axes maintain precise dimensional control across high volumes, meeting rigorous quality standards in automotive and mechanical parts manufacturing. By incorporating this equipment within established production cells, vertical machine suppliers contribute to highly integrated workflows emphasizing automation, precision, and repeatability, critical for consistent cnc manufacturing processes.
What types of parts can the ET04P / ET05P CNC lathe machine effectively produce?
Our ET04P / ET05P CNC lathe is designed for small-to-mid-size turned parts that require high precision and secondary milling in a single setup. It excels in producing complex geometries by combining turning and milling without reclamping, ideal for prototypes, small batches, and automated production.
Can you customize the ET04P / ET05P machines to fit specific production requirements?
Yes, we offer customization options including the addition of automatic feeders and various clamping methods such as pneumatic, hydraulic, or spring collets. Our technical team works closely with you to tailor the CNC lathe for your exact machining needs and part specifications.
What support do you provide for installation and maintenance of these CNC machines?
We provide comprehensive technical support including installation guidance, start-up assistance, and 24-hour lifetime technical help. Our team also offers training to ensure smooth operation and maintenance, helping you maximize the performance of your CNC machining center for sale.
How do you handle logistics and delivery for international orders of CNC machines?
We discuss and confirm the trading terms such as FOB, CIF, or CNF based on customer preference. Once the order is confirmed, we manage packaging and shipping with attention to safe transport. Payment terms typically include a 30% advance, with balance after bill of lading. We collaborate closely during the entire process.
