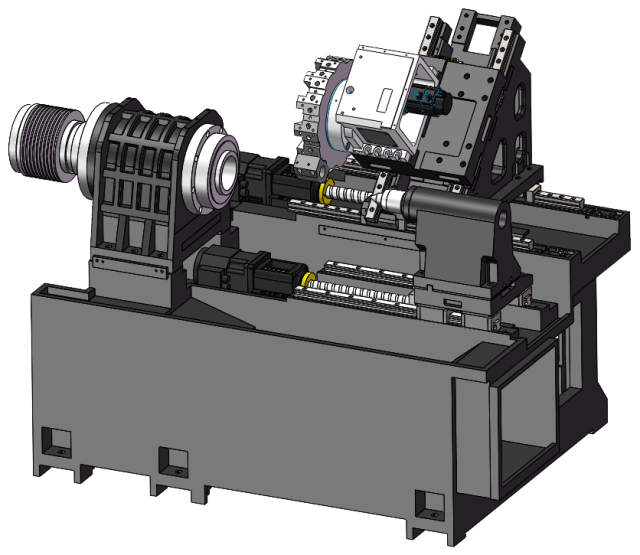

HT/ZY Series ---- Y-axis tool turret, with tailstock. |
ZY series models use a motor-directly-driven gantry Y-axis tool turret, ensuring Y-axis positioning accuracy, milling rigidity, and long-term machine accuracy. |
  |
■ Specifications
| Machine Type | HT06ZY-300 | HT06ZY-500 | HT06ZY-700 |
| 最大回转直径 Max. swing diameter | 600mm | 600mm | 600mm |
| 最大加工直径 Max. machining diameter | 360mm | 360mm | 360mm |
| 最大加工长度 Max. machining Length | 300mm | 500mm | 700mm |
| 主轴端部形式 Spindle nose | A2-6 | A2-6 | A2-6 |
| 主轴电机功率 Spindle motor power | 7.5/11 KW | 7.5/11 KW | 7.5/11 KW |
| 主轴孔直径 Spindle bore | 72mm | 72mm | 72mm |
| 主轴最高转速 Max. spindle speed | 6000r/min | 6000r/min | 6000r/min |
| ZY轴行程 Interpolation of ZY-axis travel | ±55mm | ±55mm | ±55mm |
| X轴行程 X axis | 260mm | 260mm | 260mm |
| Z轴行程 Z axis | 450mm | 650mm | 850mm |
| X轴快速进给速度 X axis rapid feed speed | 25m/min | 25m/min | 25m/min |
| Z轴快速进给速度 Z axis rapid feed speed | 25m/min | 25m/min | 25m/min |
| X轴电机最大转矩 X axis Max. torque of motor | 34.5N.m | 34.5N.m | 34.5N.m |
| Z轴电机最大转矩 Z axis Max. torque of motor | 34.5N.m | 34.5N.m | 34.5N.m |
| Y轴电机最大转矩 Y axis Max. torque of motor | 34.5N.m | 34.5N.m | 34.5N.m |
| 液压夹紧 Hydraulic clamping 卡盘尺寸 Chuck Size |
8” | 8” | 8” |
| 伺服刀塔 Servo Tool Turret | 12 工位 | 12 工位 | 12 工位 |
| 刀方规格 OD tool size | 25x25mm | 25x25mm | 25x25mm |
| 尾座行程 Tailstock travel | MT-5# 250MM |
MT-5# 350MM |
MT-5# 400MM |
| Machine size (L x W x H) | 2200x1470x1800mm | 2450x1470x1800mm | 2700x1470x1800mm |
| Standard weight | 3600KG | 4500KG | 5500KG |
■ Expandable functions of machine tools
|
Programmable servo or hydraulic tailstock |
 |
|
Fully enclosed stainless steel inner protective layout |
 |
