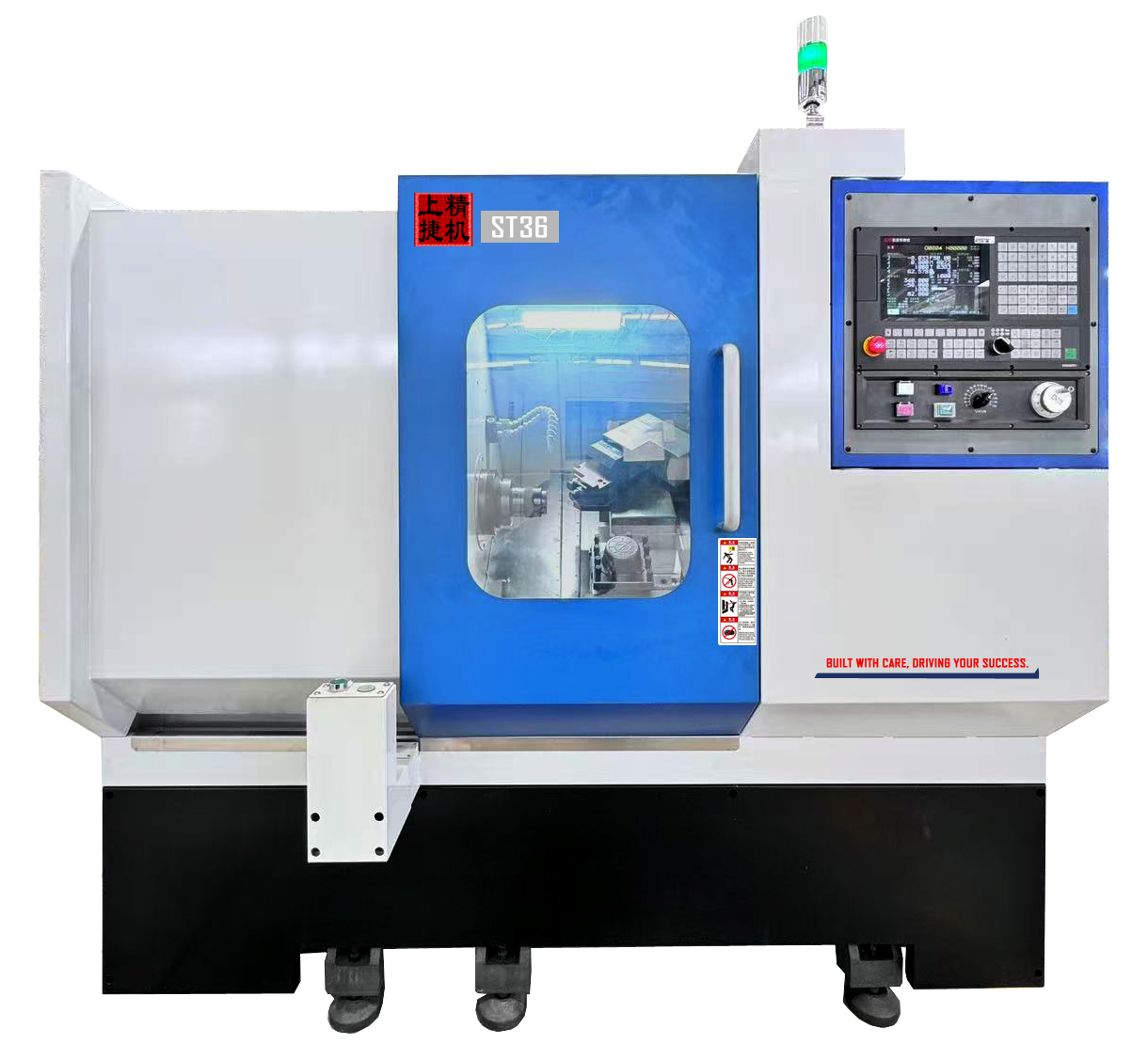

ST36

Precision CNC Lathe for Small to Mid-Scale Turning Applications

The ST36 is engineered as a compact, high-precision cnc lathe for users requiring robust and stable performance in turning small to medium-sized components. It targets manufacturing shops focused on part accuracy and throughput, including those in automotive parts fabrication and precision tooling. The machine’s slant bed design supports continuous operation stability, making it attractive for cnc turning manufacturers and precision-oriented production lines. Its applicability extends to facilities prioritizing rigid machining platforms with modular flexibility to enhance process adaptability.

Core Technical Features Enhancing Rigidity and Control

This cnc machine features a monoblock slant bed with reinforced ribs and a low center of gravity, ensuring exceptional rigidity during heavy-cut operations. Key measurable specs include a 470 mm maximum swing diameter, 36 mm bar through capacity, and a powerful 5.5 kW spindle motor operating up to 4000 r/min. The 4-station electric knife holder and 8” manual chuck augmented by hydraulic clamping provide secure and precise workholding. Travel distances of 375 mm (X-axis) and 300 mm (Z-axis), combined with rapid feed speeds of 25 m/min on both axes, contribute to operational efficiency. The modular Power Head option expands capabilities for drilling, tapping, and milling within the same setup, integrating well with cnc manufacturing cells.

Versatile Industrial Usage and Integration in High-Precision Production

The ST36 serves diverse applications such as prototype development, short-run batch turning, and tooling validation, essential for industries demanding precise component fabrication. Its compact footprint and capability to deploy Turn-Mill configurations establish it as a competitive solution within advanced manufacturing cells, where integration with automated workflows and quality inspection processes is critical. Facilities sourcing a reliable cnc lathe with modular extension potential gain efficiency improvements while minimizing equipment investment. Its alignment with industry standards facilitates compliance and predictable performance in highly regulated environments.

Product Advantages

Structural and Modular Design for Stability and Expandability

This cnc machine embodies a monoblock bed structure with reinforced ribs designed to maintain rigidity under dynamic loads. The slant bed orientation lowers the center of gravity, mitigating vibration and contributing to machining precision. Integration of an 8” manual chuck with pneumatic and hydraulic clamping combinations enhances versatility in part holding. The inclusion of a 4-station electric knife holder provides flexible tool management, reducing tool change times. Furthermore, the expandable Modular Power Head and Turn-Mill options position this lathe as an adaptable solution within broad manufacturing requirements, representing a strategic asset for cnc machine dealers and factories desiring scalable equipment solutions.

Operational Precision Coupled with User-Centric Features

The spindle’s 5.5 kW power at 4000 r/min combined with the 36 mm through-bar capacity enables machining of diverse materials with tight tolerances. The rapid feed, high-torque motors on X and Z axes ensure speed without sacrificing surface finish quality. Ease of use is enhanced through pneumatic and hydraulic clamping, allowing operators to focus on process monitoring rather than manual adjustments. The compact footprint supports efficient floor space utilization, suitable for workshops prioritizing ROI and operational reliability in cnc machining centers for sale. This lathe supports workflow integration by accommodating multi-process configurations, streamlining CNC manufacturing cycles.

■  Specifications

■  Expandable functions of machine tools

• Modular Power Head

Customized power head configurations can be added according to the customer's part processing requirements, enabling drilling, milling, tapping, and other feature machining operations.

• Turn-Mill

The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.

Use Scenarios

High-Precision Prototype and Short-Run Production Environments

In precision component prototyping and short-run productions, manufacturers require a machine that provides repeatable accuracy alongside flexible tooling. The ST36 cnc lathe plays a crucial role by combining its 470 mm swing and 36 mm bar through capability to accommodate various geometries and materials frequently used in automotive and medical parts industries. Its capacity for modular Power Head upgrades enables drilling and milling processes within the same setup, minimizing secondary setups and cycle times. This aligns well with batch manufacturing workflows where quick transition from prototype to production is essential, delivering measurable ROI and process adaptability within modern CNC manufacturing lines.

In-House Quality Validation and Advanced Tooling Development

Manufacturing facilities adopting stringent quality control protocols utilize the ST36 to perform in-house inspections and first-article verifications on turned components. It supports tooling and fixture validation through its 4-station electric knife holder, facilitating dynamic tool testing and tooling cycle optimization before full-scale production. The lathe’s compatibility with Turn-Mill configurations further advances multi-process machining capabilities, aligning with manufacturing systems that prioritize seamless integration between turning, milling, and inspection stages. This ensures compliance with industry standards and enhances productivity in environments closely managed by professional cnc turning manufacturers and integrated production cells.

FAQ

What size bar can the ST36 CNC lathe handle through its spindle?

Our ST36 CNC lathe supports a through-bar diameter of up to 36 mm, allowing flexible stock usage for small to mid-size parts. This feature, combined with the machine’s 5.5 kW spindle motor and 48 mm bore, ensures efficient turning performance for varying bar materials.

Can the ST36 be customized with additional machining functions like milling or tapping?

Yes, the ST36 offers expandable Modular Power Head configurations, enabling drilling, milling, and tapping functions. Our cnc machining center for sale can be upgraded with Turn-Mill options to handle complex part requirements within a single compact machine footprint.

What after-sales support do you provide for your CNC machines?

We provide a one-year warranty on the ST36 and offer 24-hour lifetime technical support. Our after-sales team is committed to helping you maintain machine performance, ensuring your investment in our cnc machine factory products delivers lasting value.

Do you assist with installation and training for CNC lathe machines?

We assist customers in installation and offer training for operating the ST36 CNC lathe. Our support includes guidance on machine operation, tooling setup, and maintenance to ensure smooth integration into your production line or cnc turning manufacturers facility.
