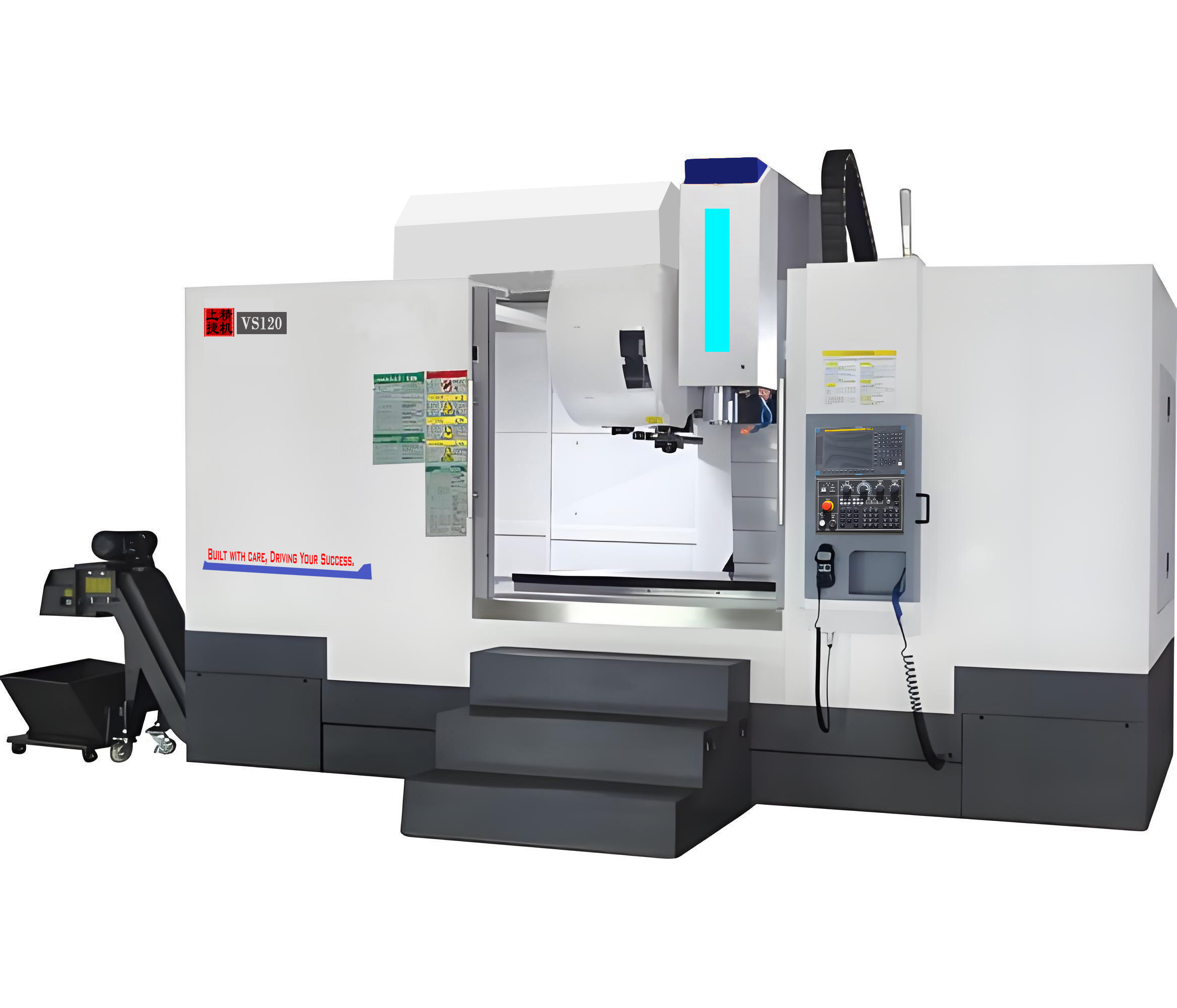

VS120

Optimized Vertical Machining Solution for Precision Engineering

Designed for industries requiring high-performance milling, the VS120 vertical machining center meets the needs of manufacturers, mold makers, and heavy cutting specialists. This cnc machining center for sale is suitable for those who demand stable precision and robust machining capabilities. Its large work area and heavy-duty construction make it well suited for process engineers and production facilities focusing on machining large or complex components in a single setup with minimal repositioning.

Advanced Mechanical Design with High Load Capacity and Precision Components

The VS120 integrates HT300 high-grade castings with FEM-optimized bed reinforcements to minimize distortion and maintain dimensional stability during long operations. It incorporates precision-grade roller-type linear guides on X, Y, and Z axes to ensure smooth motion and accuracy. The extended Z-axis base and spindle counterweight system reduce thermal elongation and axial loads, enhancing repeatability. The machine offers spindle speeds up to 12000 rpm with BT40 or BT50 tooling and an 11 to 18 kW spindle motor, supported by a 24-tool magazine for efficient tool changes within heavy milling cycles, embodying a well-rounded cnc mill solution.

Versatile CNC Manufacturing Center for Industrial Production

The VS120 supports diverse industrial applications, including large workpiece finishing, prototyping, and tool life testing. Its robust build enables precision pocketing and contour milling in automotive, aerospace, and heavy machinery sectors. Multiple CNC control systems (FANUC, Siemens, Mitsubishi, and others) facilitate seamless integration into existing production lines, enhancing productivity and repeatability. This vertical machining center is a critical asset for manufacturers requiring consistent surface finishes and optimized cycle times in demanding cnc manufacturing environments.

Product Advantages

Robust Structural Engineering Enhances Machine Longevity

The VS120’s design incorporates advanced casting materials and reinforced structural ribs optimized through FEM analysis, reducing vibration and deformation under heavy loads. Its broad 1300x600 mm workbench supports up to 1000 kg, allowing large parts processing without compromising stability. The spindle counterweight system significantly reduces the mechanical strain on the Z-axis lead screw, improving the machine's reliability. Combined precision linear guides and high-torque motors create a rigid backbone typical of superior vertical machine supplier offerings, ensuring durable performance under continuous industrial usage.

Performance Efficiency and Operator-Centric Features

Performance-wise, the VS120 balances power and control with spindle options up to 18 kW and smooth, repeatable movements delivering high-quality surface finishes. Operating with popular CNC systems enhances usability and training compatibility for industrial operators. The integrated 24-tool disc magazine supports rapid tool swapping and accommodates heavier tooling configurations. Its advanced thermal compensation mechanisms and expansive working range translate directly into improved ROI through minimized downtime and increased throughput—a hallmark among cnc machine dealers serving advanced manufacturing sectors.

Machine Structure VS series is professionally designed and manufactured with the main principles of low center of gravity, anti-distortion, anti-creep, heavy cutting, and high material removal rate.  Finite element analysis (FEM) is used to optimize the shape and position of the reinforcing ribs of the castings, making the bed strength optimal. Additionally, special reinforcement structures are applied to the Y-axis base and Z-axis column to make the bed structure more suitable for heavy cutting and increase the tool life. The machine tool castings are made of HT300 high-grade material, which features high strength, strong resistance to deformation and excellent shock absorption capacity. After vibration aging and secondary tempering processes, the stress is eliminated, providing excellent dimensional stability and durability. This ensures that the machine tool maintains stable precision over a long period of use.
VS series is equipped with a standard spindle counterweight system, which can reduce the load on the Z-axis lead screw, decrease heat generation, and minimize the impact of thermal elongation on the machining accuracy of the machine tool. This enhances the machining accuracy of the machine tool and the surface finish of the workpiece.
The Z-axis column is a large span. All cast components are made of HT300 material, achieving superior vibration damping performance, support rigidity and excellent stability.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide	THK, PMI, HIWIN C3 grade Ø50 precision ground ball screw
High-quality tool clamping cylinder	NSK, SKF, FAG P4 grade imported angular contactpaired bearings	Precision high-rigidity coupling	Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine		Standard equipped with chain-typechip conveyor and small iron chip cart.

Use Scenarios

Heavy Component Milling in Automotive Manufacturing

Within automotive production plants, the VS120 plays a pivotal role in machining large engine blocks, chassis elements, and molds. The heavy-duty vertical machining center for sale meets stringent dimensional accuracy demands and can hold long operational cycles. Its large workbench and high-load capacity reduce the frequency of part repositioning, streamlining workflow and decreasing setup times. Integration with CNC protocols such as FANUC ensures compatibility and ease of maintenance, crucial for high-volume automotive machining environments focused on precision and efficiency.

Precision Prototyping and Fixture Validation in Aerospace Production

In aerospace manufacturing, the VS120 is employed for prototype part development and complex contour milling requiring high repeatability. Its secure, rigid frame and precision linear guide system allow intricate pocket milling and surface finishing compliant with aerospace quality standards. The machine’s adaptability for heavier tooling weights supports specialized cutting tools necessary for composite materials. Through its compatible CNC systems and reliable thermal management, the VS120 ensures consistent part quality, enhancing early-stage design validation and fixture testing workflows integral to aerospace manufacturing processes.

FAQ

What types of materials can the VS120 vertical machining center handle?

Our VS120 is designed for heavy-duty milling and can process a wide range of metals, including steel, aluminum, and cast iron. Its robust construction with HT300 castings and high rigidity ensures precise machining, making it ideal for demanding materials in industrial cnc machining center for sale applications.

Can the VS120 be customized to fit specific production needs?

Yes, we offer multiple CNC control options such as FANUC, Siemens, SYNTEC, KND, and Mitsubishi for flexibility in operation. Also, spindle power, taper size, and tool magazine capacity can be configured to suit your workflow, ensuring the VS120 meets your production requirements as a reliable vertical machining center for sale.

What support do you provide during installation and startup?

We provide comprehensive technical support, including installation guidance and operator training to ensure smooth setup. Our team assists with machine calibration and verification to maximize stability and consistent precision, helping your production achieve optimal output with minimal downtime.

How is after-sales service handled for your CNC machines?

We provide a one-year warranty and 24-hour technical support for all our machines. Our service includes troubleshooting, spare parts supply, and maintenance advice, ensuring your investment in our cnc machine factory products remains productive and reliable throughout its service life.
