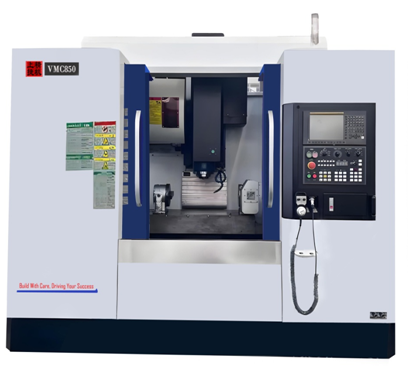

Name: Shanjmc VMC850 - CNC Turning Center
Brand: Hubei Shangjie Precision Machinery Manufacturing/CNC Lathe/CNC Turning
Availability: InStock
Rating: 5 (1 reviews)

Description

Casting Material

The machine tool castings are made of HT300 high-grade material, which features high strength, strong resistance to deformation and excellent shock absorption capacity. After vibration aging and secondary tempering processes, the stress is eliminated, providing excellent dimensional stability and durability. This ensures that the machine tool maintains stable precision over a long period of use.

■ Specifications

Machine Type	VMC850
工作台尺寸Workbench size	1050x500 mm
Workbench T-slot (number - size * pitch)	5-18x90 mm
Max. load capacity of the workbench	600KG
X轴行程 X-axis travel distance	810mm
Y轴行程 Y-axis travel distance	510mm
Z轴行程 Z-axis travel distance	520mm
Distance from the center of spindleto the guide rail of the column	565mm
Distance from the spindle face tothe worktable surface	120-640 mm
导轨形式 Guide rail form	Precision Grade P roller-type linear guide
X,Y,Z快移速度 X,Y,Z fast movement speed	30m/min
X轴电机最大转矩 X axis Max. torque of motor	55.8N.m
Y轴电机最大转矩 Y axis Max. torque of motor	55.8N.m
Z轴电机最大转矩 Z axis Max. torque of motor	69N.m
主轴最高转速 Max. spindle speed	8000/12000 rpm
主轴锥孔 Spindle taper hole	BT40
主轴电机功率 Spindle motor power	11/15 KW
刀库容量 Tool magazine capacity	Disc-Type 24Tools
刀具最大重量 Max. weight of cutting tools	8Kg
气源压力 Air source pressure	0.5-0.8 MPa
Machine size (L x W x H)	2000x1900x2450mm
Standard weight	6500KG

■ Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM Precision Grade P roller-type linear guide	C3 grade precision ground ball screw
High-quality tool clamping cylinder	NSK, SKF, FAG P4 grade imported angular contactpaired bearings	Precision high-rigidity coupling	Imported high-torque synchronous belts
High-quality disc-type /Umbrella-type ATC Tool magazine

Enhanced Stability and Precision

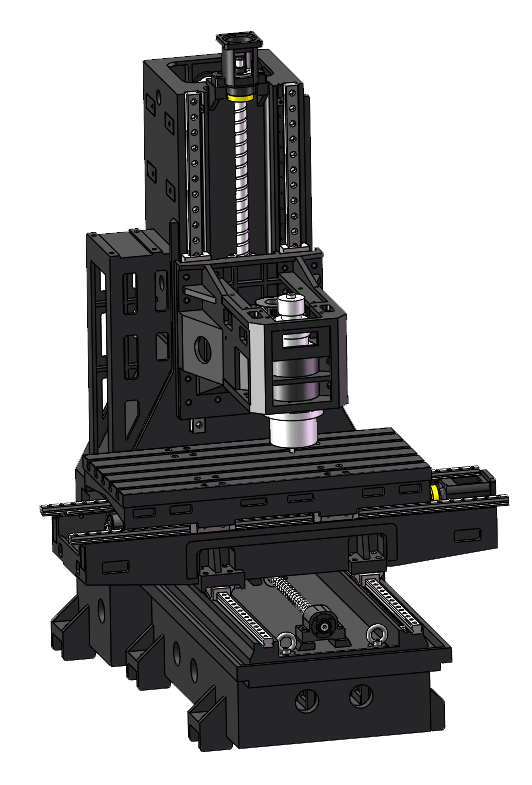

The Shanjmc VMC850 is engineered to redefine stability and precision in industrial applications. With its low center of gravity design, this cnc turning center ensures optimal balance and reduced vibration during operation. The widened Y-axis base and increased column span further enhance the machine's stability, allowing for precise machining even under heavy loads. By incorporating finite element analysis (FEM), the VMC850 optimizes the shape and position of reinforcing ribs, achieving superior bed strength. This meticulous design makes the VMC850 an ideal choice for those seeking a reliable cnc turning and milling center that delivers consistent accuracy over extended periods.

Built for Heavy-Duty Performance
Designed for heavy cutting tasks, the VMC850 excels in improving work efficiency and extending tool life. Its robust construction, featuring HT300 high-grade casting material, offers exceptional resistance to deformation and excellent shock absorption. The machine undergoes vibration aging and secondary tempering processes to eliminate stress, ensuring long-term dimensional stability. Equipped with a high-quality spindle and imported bearings, the VMC850 guarantees smooth and efficient operation. This cnc horizontal turning center is equipped with a precision-grade P roller-type linear guide, C3 grade precision ground ball screw, and high-rigidity coupling, making it a powerhouse for demanding industrial environments.

Scalable Design for Future Growth
The VMC850 is not just a machine; it's a scalable solution designed to meet the evolving demands of your business. With a tool magazine capacity of 24 tools and a maximum spindle speed of 8000/12000 rpm, this cnc turning center is prepared to handle a wide range of machining tasks. Its compatibility with leading CNC systems like FANUC, Siemens, SYNTEC, KND, and Mitsubishi ensures seamless integration into existing workflows. The VMC850's adaptability makes it a versatile asset, capable of supporting your operations as they grow. Whether you're expanding your capabilities or enhancing your production line, the VMC850 stands ready as a reliable cnc turning and milling center that scales with your needs.

In summary, the Shanjmc VMC850 offers a compelling blend of stability, performance, and scalability, making it a cost-effective solution for professional use. Its advanced features and robust construction position it as a leading choice among cnc turning centers, ensuring your operations remain efficient and precise.

Product Advantages

1. Enhanced Stability and Precision
The Shanjmc VMC850 is a cnc turning center designed with a low center of gravity, ensuring optimal balance and reduced vibration. Its widened Y-axis base and increased column span enhance stability, allowing precise machining even under heavy loads. By utilizing finite element analysis (FEM), the VMC850 optimizes reinforcing rib placement, achieving superior bed strength, making it an ideal cnc turning and milling center for consistent accuracy.

2. Heavy-Duty Performance
Built for demanding tasks, the VMC850 excels in heavy cutting, improving work efficiency and extending tool life. Its robust HT300 high-grade casting material offers exceptional deformation resistance and shock absorption. The machine undergoes vibration aging and secondary tempering to eliminate stress, ensuring long-term stability. This cnc horizontal turning center is equipped with a high-quality spindle and imported bearings for smooth operation.

3. Scalable Design for Growth
The VMC850 is a scalable cnc turning center designed to meet evolving business demands. With a tool magazine capacity of 24 tools and a maximum spindle speed of 8000/12000 rpm, it handles a wide range of tasks. Its compatibility with leading CNC systems like FANUC and Siemens ensures seamless integration, making it a versatile cnc turning and milling center that grows with your operations.

4. Cost-Effective Solution
The Shanjmc VMC850 offers a compelling blend of stability, performance, and scalability, making it a cost-effective choice for professional use. Its advanced features and robust construction position it as a leading option among cnc turning centers, ensuring efficient and precise operations, ultimately delivering a strong return on investment.

5. Advanced Construction and Features
The VMC850 features a precision-grade P roller-type linear guide, C3 grade precision ground ball screw, and high-rigidity coupling, making it a powerhouse in industrial environments. This cnc horizontal turning center is engineered for smooth, efficient operation, ensuring your production line remains robust and reliable, supporting your business's growth and success.

About Us

Shanjmc is a leader in the manufacturing of high-precision CNC machinery, dedicated to advancing industrial capabilities with innovative solutions. Our VMC850 CNC Turning Center exemplifies our commitment to quality and performance, featuring a low center of gravity and reinforced structures for superior stability and precision. Designed for heavy-duty applications, the VMC850 enhances work efficiency and extends tool life, making it a cost-effective choice for professionals. Our machines are built with HT300 high-grade casting material, ensuring exceptional resistance to deformation and excellent shock absorption. At Shanjmc, we integrate advanced technologies like finite element analysis (FEM) to optimize machine design, ensuring consistent accuracy and reliability. Our products are compatible with leading CNC systems such as FANUC, Siemens, SYNTEC, KND, and Mitsubishi, allowing seamless integration into existing workflows. We are committed to supporting the evolving needs of our clients, providing scalable solutions that grow with your business. Choose Shanjmc for cutting-edge CNC machinery that delivers precision, performance, and value.

Contact Shanjmc today to upgrade your industrial operations with the VMC850's enhanced stability and precision. Let’s drive your efficiency and tool life to new heights!

FAQ

Who are we?
We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of CNC turning centers, specializing in providing high-quality industrial machinery designed for precision and stability. Our products are engineered to meet the demanding needs of various industrial applications.

How can we guarantee quality?
We guarantee quality through the use of high-grade materials like HT300 casting, advanced manufacturing processes, and rigorous quality control measures. Our machines undergo vibration aging and secondary tempering to ensure long-term dimensional stability and precision.

What can you buy from us?
You can purchase a wide range of CNC machinery from us, including CNC turning centers, CNC vertical centers, and CNC horizontal turning centers. Our products are designed to enhance efficiency and precision in industrial machining tasks.

Why should you buy from us not from other suppliers?
Our CNC turning centers, like the VMC850, offer unmatched stability and precision due to their low center of gravity and reinforced structures. We provide scalable solutions that grow with your business, ensuring long-term value and performance.

What services can we provide?
We offer comprehensive services including tailor-made automation solutions, seamless integration with leading CNC systems, and ongoing technical support to ensure your operations run smoothly and efficiently.

Can I customize the VMC850 for my business needs?
Yes, the VMC850 is designed to be a scalable solution, allowing for customization to meet your specific business requirements. Its compatibility with various CNC systems ensures it can be tailored to fit seamlessly into your existing workflows.

What is the delivery time for the VMC850?
Delivery times for the VMC850 can vary based on your location and specific customization needs. We strive to ensure timely delivery and will provide you with an estimated timeline upon order confirmation.
