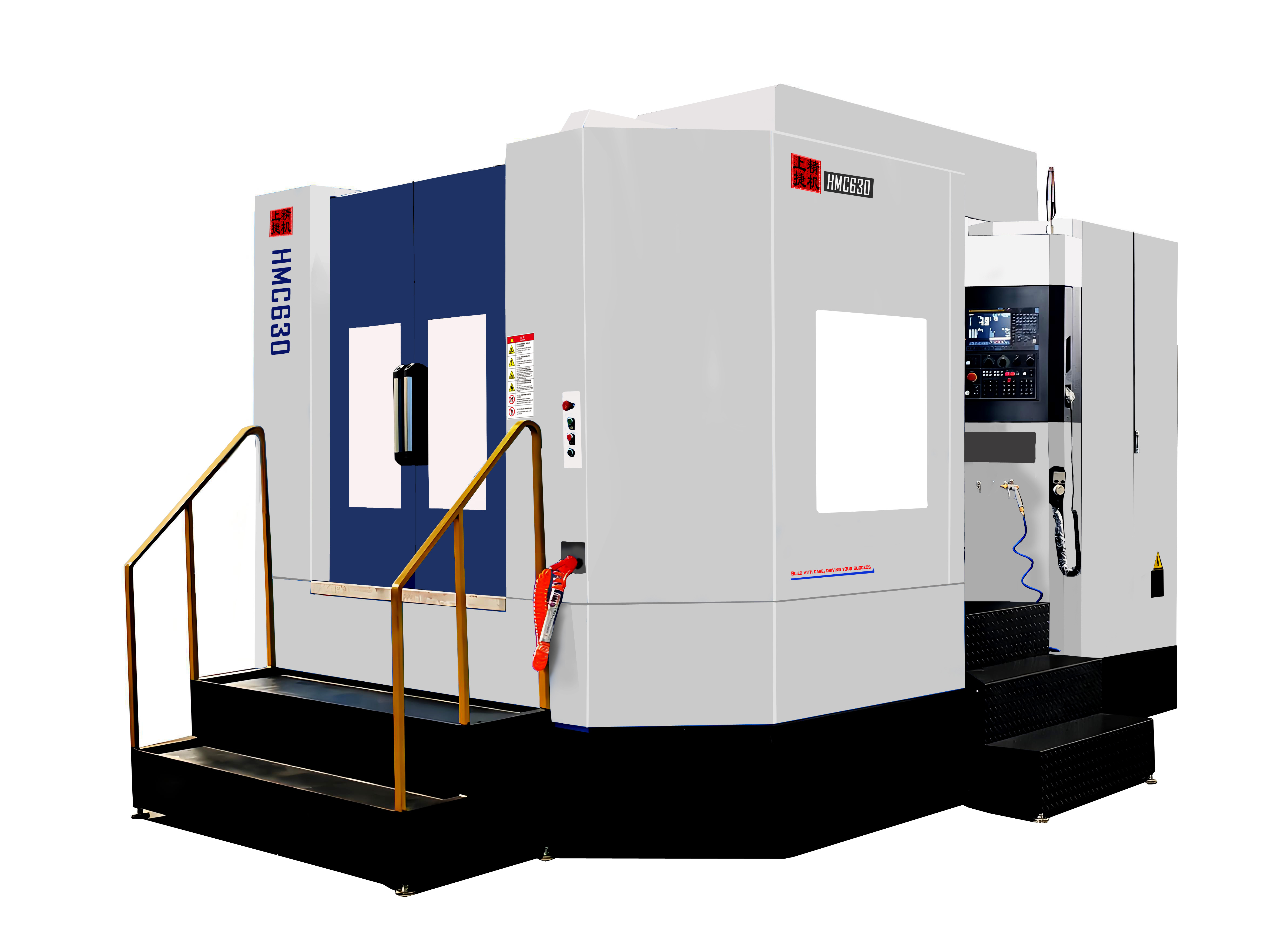

HMC500

Functional Positioning for Mid-Sized Precision Milling

The HMC500 horizontal machining center targets manufacturing environments requiring precise milling of mid-sized components. Designed for engineers and production managers, this cnc machine offers a 500x500 mm workbench with a maximum load capacity of 800 kg, suitable for a wide range of metal parts. It supports complex milling processes facilitated by a 24-tool magazine and an optional BT50 spindle, enabling adaptive tooling configurations to meet diverse machining needs. As a solution from a reputable cnc machine factory, it fits operations demanding reliable, high-accuracy horizontal machining for prototype development, batch production, or component finishing.

Technical Specifications Enabling Robust Performance

The gantry-type column coupled with a T-shaped bed ensures superior rigidity and vibration dampening essential for heavy milling. With X, Y, and Z travels of 1100 mm, 650 mm, and 600 mm respectively, it accommodates varied part geometries during milling. Equipped with spindle options up to 12,000 rpm (BT40 standard, BT50 optional) and spindle motors delivering 11 to 15 kW power, the system ensures optimal metal removal rates. Precision is further guaranteed by positioning accuracy of 0.01 mm and repeatability of 0.006 mm, supported by linear guides and high-quality bearings. Integration with leading CNC controls like FANUC and Siemens enhances programmer flexibility and machining automation. This cnc milling machine setup supports demanding production cycles requiring consistent quality.

Applications in Industrial Manufacturing and Machining

The HMC500 finds utility across sectors such as automotive, aerospace, and precision engineering where milling of aluminum, steel, and other alloys is fundamental. Its robust gantry design allows for heavy-cutting operations typically required in tooling, fixture manufacturing, and multi-operation batch runs. The integration of a lift-free turntable with 0.001° indexing facilitates complex contouring and angular milling processes. Ideal for production environments focusing on mid-size component accuracy, this solution from a leading vertical machine supplier complements vertical machining center lines, enhancing in-house milling capabilities and reducing dependency on external subcontractors.

Design Innovation and Structural Integrity

The HMC500 benefits from a gantry-type horizontal machining design which increases bed rigidity and decreases thermal deformation, crucial for maintaining accuracy over long production runs. The T-shaped integral bed structure coupled with precision-grade linear guides ensures minimal machine deflection during heavy milling. A noteworthy feature is the lift-free turntable enabling continuous rotational indexing with 0.001° resolution, which is essential for multi-axis milling without manual repositioning. The tool magazine capacity of 24 tools with high payload tolerance (up to 15 kg per tool in BT50) supports flexible tooling schemes for complex parts. Such engineering attributes position this cnc machine as a robust candidate within the portfolio of cnc machine dealers serving advanced manufacturing facilities.

Enhanced Usability and Operational Efficiency

Performance-wise, the HMC500 provides consistent precision with 0.01 mm positioning accuracy and tight repeatability margin, reducing scrap rates and ensuring part conformity. User choice in CNC controls—from FANUC to Mitsubishi—offers operational familiarity and seamless integration with existing CAM programs. The chain-type chip conveyor and dedicated chip cart simplify maintenance workflows, minimizing downtime. High spindle power combined with a broad speed range caters to diverse materials and cutting conditions, maximizing throughput. These features translate into improved productivity and cost efficiency, making the machine a valuable asset for processors utilizing cnc milling machines and other cnc mills in high-precision environments.

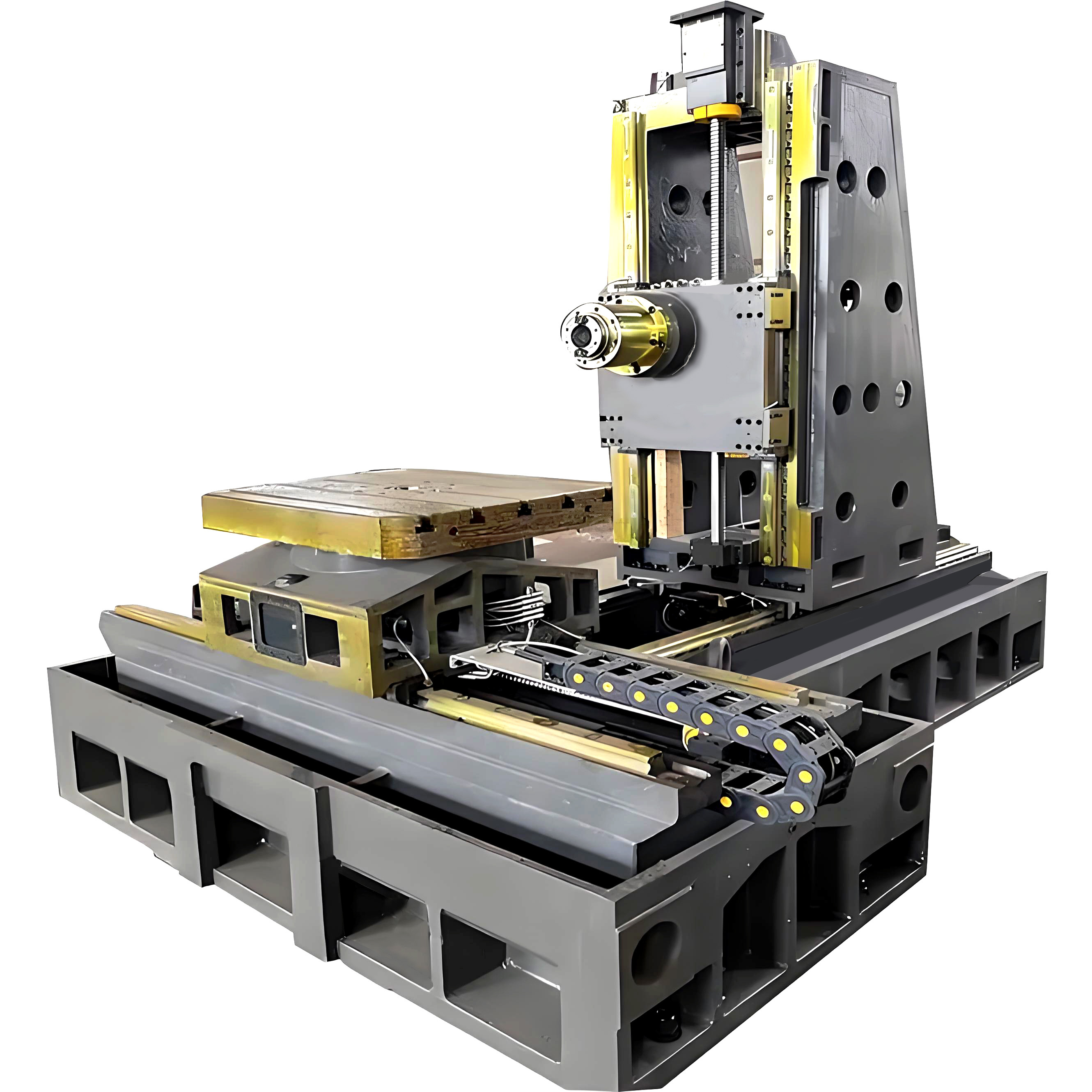

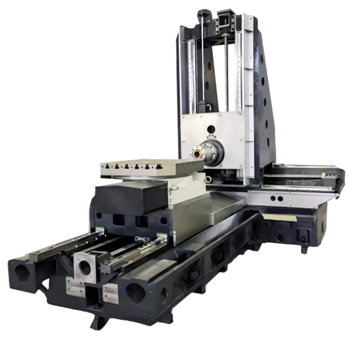

■   Machine Structure HMC series of machine tools adopts an advanced T-shaped integral bed structure, gantry-type column, and a front-hung box layout. It features strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with the main focus on low center of gravity, anti-twist, anti-rust, heavy cutting, and high material removal efficiency. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs of the castings are optimized to achieve the best bed strength. Additionally, the base and Z-axis column have been specially reinforced to make the bed structure more suitable for heavy cutting and increase the tool life.of the castings, making the bed strength optimal. Additionally, special reinforcement structures are applied to the Y-axis base and Y-axis column to make the bed structure more suitable for heavy cutting and increase the tool life.

■  Specifications

■  Machine Tool Configuration

CNC system: FANUC, Siemens,SYNTEC, KND,Mitsubishi	High-quality spindle, imported bearings	THK, PMI, HIWIN, HTPM  45、55 Precision Grade P roller-type linear guide
Standard equipped with a lift-free turntable, continuous positioning and indexing can reach 0.001°. The entire series adopts a slider direct connection structure, featuring high rigidity and high precision.	The double lead precision worm gear and worm achieve zero clearance transmission and a maintenance-free lifespan of 20,000 hours. It also features a large transmission ratio, smooth transmission, and self-locking properties, making it particularly suitable for milling operations.	Imported P4 grade precision turntable bearings are selected, featuring three rows of rollers that respectively provide axial and radial support. This results in a large clamping torque on the worktable surface and a strong anti-overturning torque.
Standard equipped with chain-typechip conveyor and small iron chip cart.		High-quality disc-type /Umbrella-type ATC Tool magazine

Use Scenarios

Industrial Prototyping and Mid-Sized Component Production

In prototype workshops or midsize batch operations, the HMC500 operates as a key horizontal machining center for precise milling of metal components up to 800 kg weight. Its 500x500 mm table handles versatile part sizes, while the 24-tool carousel supports rapid tooling changes needed for iterative design validation. The choice of advanced CNC systems ensures tight control over milling strategies and speeds, optimizing prototypes for fit and finish before mass production. This setup aligns well with practices held by manufacturers investing in cnc manufacturing capabilities internally, reducing lead times and dependency on external services.

Heavy Cutting and Multi-Stage Milling in Tooling Industry

Within toolrooms and production shops that require robust milling on hard metals, the HMC500’s gantry structure and 15 kW spindle power (BT50 option) allow heavy cutting operations with minimal deflection. Its integration of a lift-free turntable supports simultaneous positioning and milling, facilitating machining of complex parts such as fixtures and precision molds with angular features. The chip conveyor system enhances operational cleanliness essential in toolmaking environments. As a horizontally oriented cnc machining center for sale, this model complements vertical machining centers by addressing workloads demanding greater rigidity and multi-axis capability, streamlining multi-station workflow integration.

FAQ

What materials can the HMC500 horizontal machining center process?

The HMC500 is designed for precision milling of metals including aluminum and steel. Its robust gantry design and spindle power support heavy milling and finishing of mid-sized metal components, making it suitable for a range of cnc machining center for sale applications involving metal part production.

Can we customize the HMC500 with different CNC control systems?

Yes, we offer flexible CNC options including FANUC, Siemens, SYNTEC, KND, and Mitsubishi. This ensures compatibility with your existing workflows and operator expertise, allowing the HMC500 to integrate smoothly as your preferred cnc machine solution.

What support do you provide for installation and commissioning?

We assist with technical guidance during installation and commissioning to ensure optimal machine setup and performance. Our experienced team provides detailed instructions tailored for your shop environment so the HMC500 operates reliably from day one.

How do you manage tool changes and maintenance on the HMC500?

The HMC500 features a 24-tool disc-type magazine with tool weights up to 8 kg (BT40) or 15 kg (BT50), supporting efficient tooling changes during production. Routine maintenance focuses on cleaning the chain chip conveyor and verifying precision linear guides, which helps maintain the machine’s long-term precision and reliability.
