Functional Role Tailored to Heavy-Duty Precision Machining

The XT06DS-300/500 is engineered for manufacturers requiring robust heavy-cutting solutions in precision part production, specifically for disc-shaped and short shaft components. Geared toward workshops and production lines that integrate advanced machining centers, it serves users who prioritize machining stability and repeatability. This heavy-duty lathe facilitates seamless integration with complementary equipment such as surface grinding machines, ensuring comprehensive part finishing processes. The machine’s reinforcement and vibration reduction provide a reliable platform suitable for industries that demand consistent precision and extended tool life, aligning with the operational goals of precision grinding machine users.

Technical Specifications Emphasizing Rigidity and Dynamic Accuracy

Featuring a 45-degree inclined saddle and a widened, reinforced bed structure refined through finite element analysis, the XT06DS-300/500 delivers superior rigidity critical for high-precision turning. With a maximum swing diameter of 550 mm and machining lengths of 300 or 500 mm, it accommodates substantial workpieces while maintaining precision. The dual-spindle configuration supports up to 6,000 rpm spindle speeds with a powerful 7.5/11 kW motor. Integrated with options like an 8 or 12-station servo turret and programmable tailstock, the machine enhances multi-process flexibility. These technical factors position it to complement workflows involving precision surface grinding machines by ensuring minimal vibration and precise tool motion symmetry.

Industrial Applications Enhancing Manufacturing Productivity

This lathe model is suitable for sectors focused on automotive, aerospace, and heavy machinery components where complex shapes and high cutting forces are common. It fulfills production requirements for prototyping short shafts and disc elements, supporting tool life optimization through turret flexibility. Its turn-mill capabilities allow integration of milling functions, promoting process consolidation and increased throughput. Workflow designs leveraging this CNC lathe alongside precision surface grinding machines and grinding machine for sale portfolios enable manufacturers to enhance component accuracy, cycle times, and quality consistency, thereby reducing rework and increasing return on investment.

• Machine Characteristics

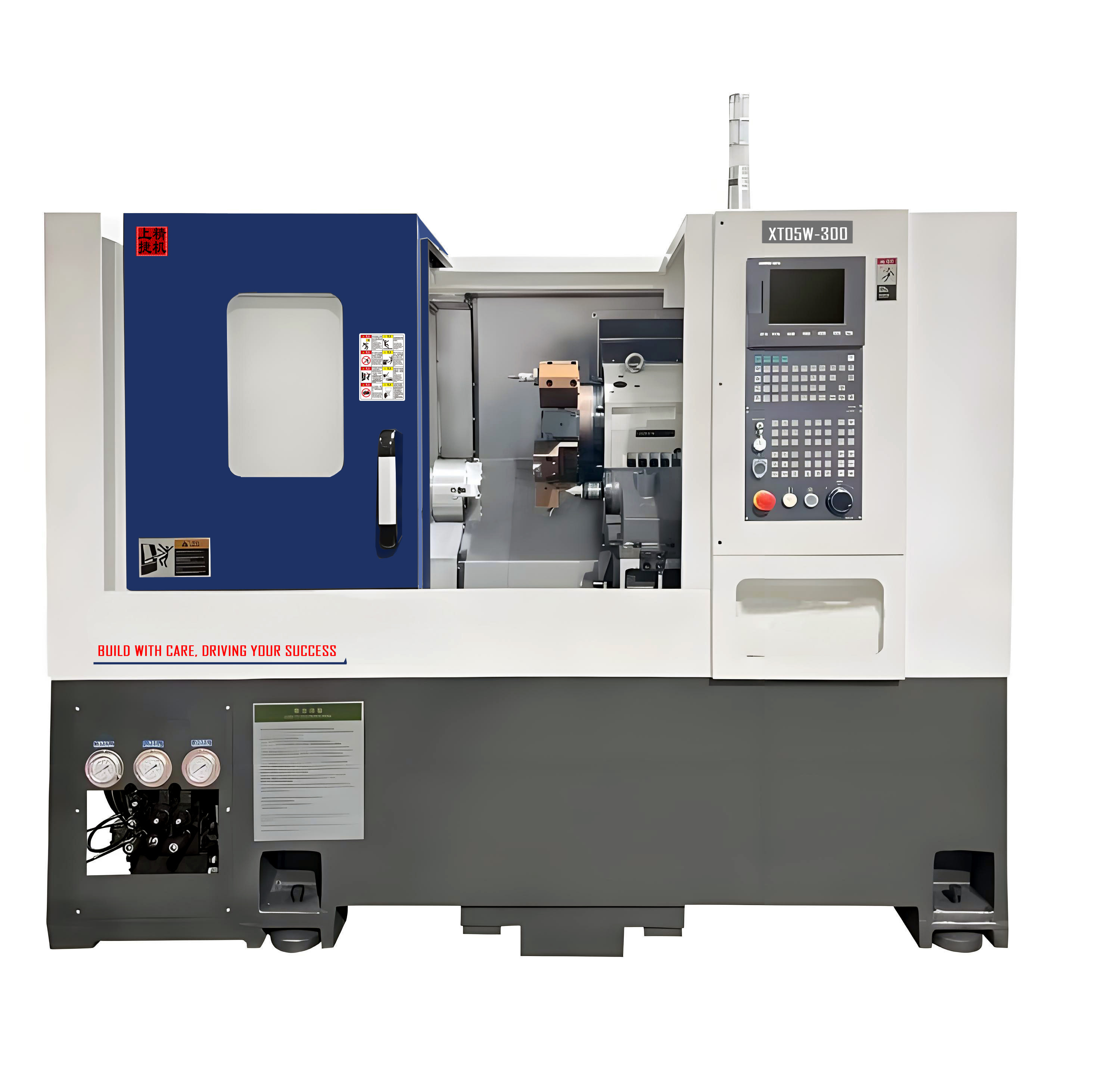

The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.

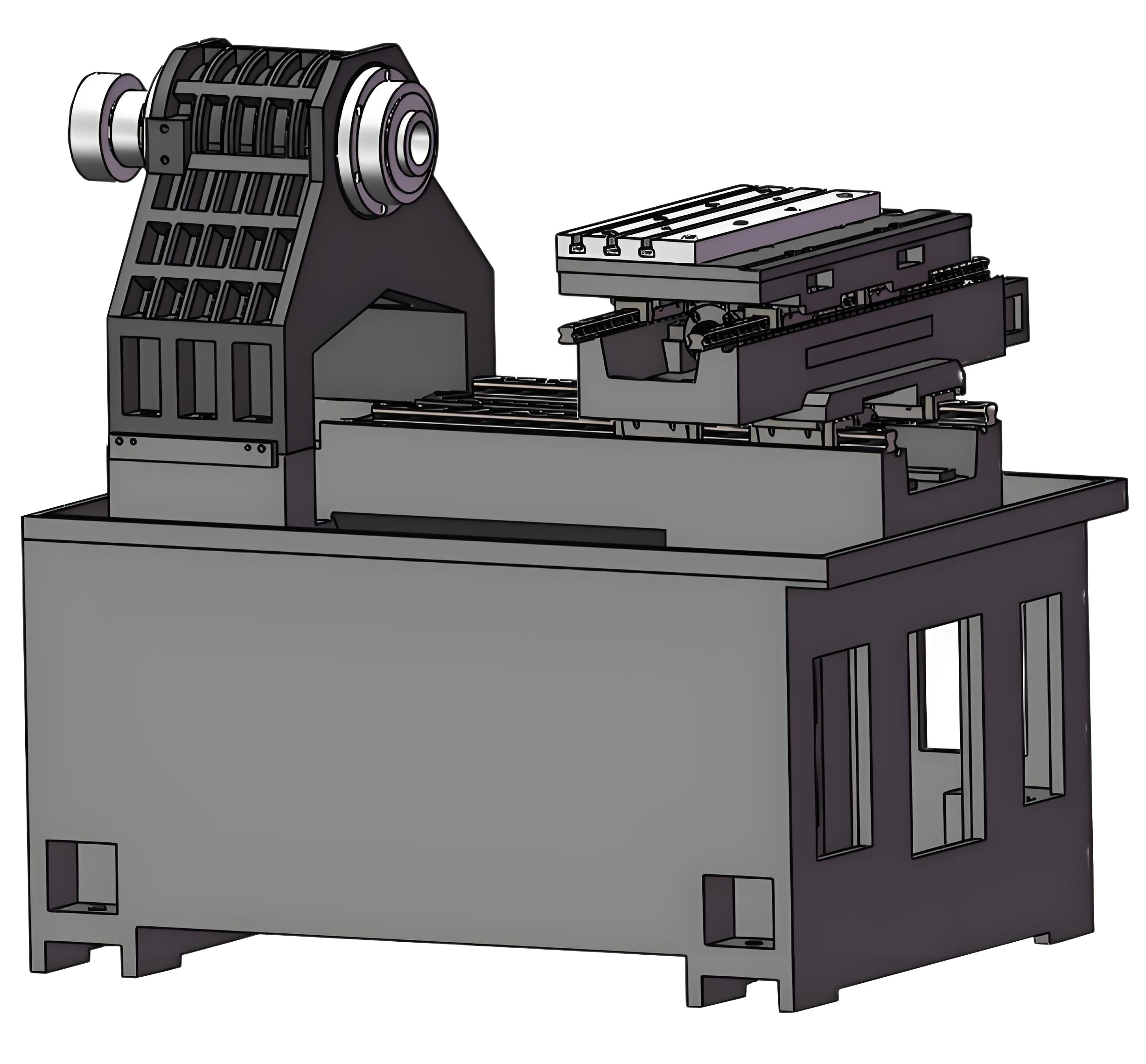

By applying finite element analysis (FEM), the shape and position of the reinforcing ribs in the castings are optimized to achieve the best bed strength, making the bed structure more suitable for heavy cutting and extending the tool's service life.

■  Specifications

Product Advantages

Design Innovations Supporting Structural Robustness

The XT06DS-300/500’s architecture emphasizes vibration minimization and machine bed reinforcement achieved via optimized ribs detailed by advanced finite element modeling. This design ensures high rigidity compatible with heavy cutting environments, directly benefiting users of complementary surface grinding machines or precision grinding machines requiring consistent base stability. Modular options like the servo turret with multiple stations and programmability support system integration, allowing adaptation to varying production requirements. The 45-degree saddle orientation provides symmetrical tool guidance, effectively suppressing backlash and improving machining precision, reinforcing its standing among advanced grinding machine manufacturers concerned with overall machining ecosystem efficacy.

Operational Performance Enhancing Usability and Efficiency

Performance-wise, the lathe offers rapid axis feeds of 30 m/min and versatile turning/milling configurations that promote efficient multi-tasking in production lines. The heavy-duty spindle motor options, paired with a wide bore and dual-spindle setup, guarantee sufficient power for continuous high-load operations, complementing workflows utilizing precision surface grinding machines downstream. Ease of setup and machining repeatability contribute to reduced cycle times and extended tool life, enhancing operational ROI. User-centric design features such as hydraulic chucking and programmable tailstock improve setup accuracy and flexibility, providing clear value to high-volume manufacturing environments employing advanced grinding machines for sale.

■  Expandable functions of machine tools

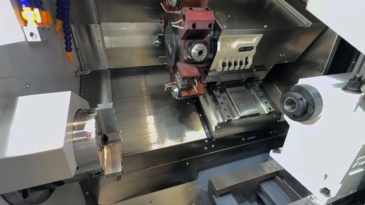

Turn-Mill    The entire XT series can be equipped with a servo power tool turret to achieve the processing capability of turning and milling compound functions.

Programmable Tailstock   The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities. This versatile solution meets complex machining demands while minimizing customers' capital expenditure on equipment.
