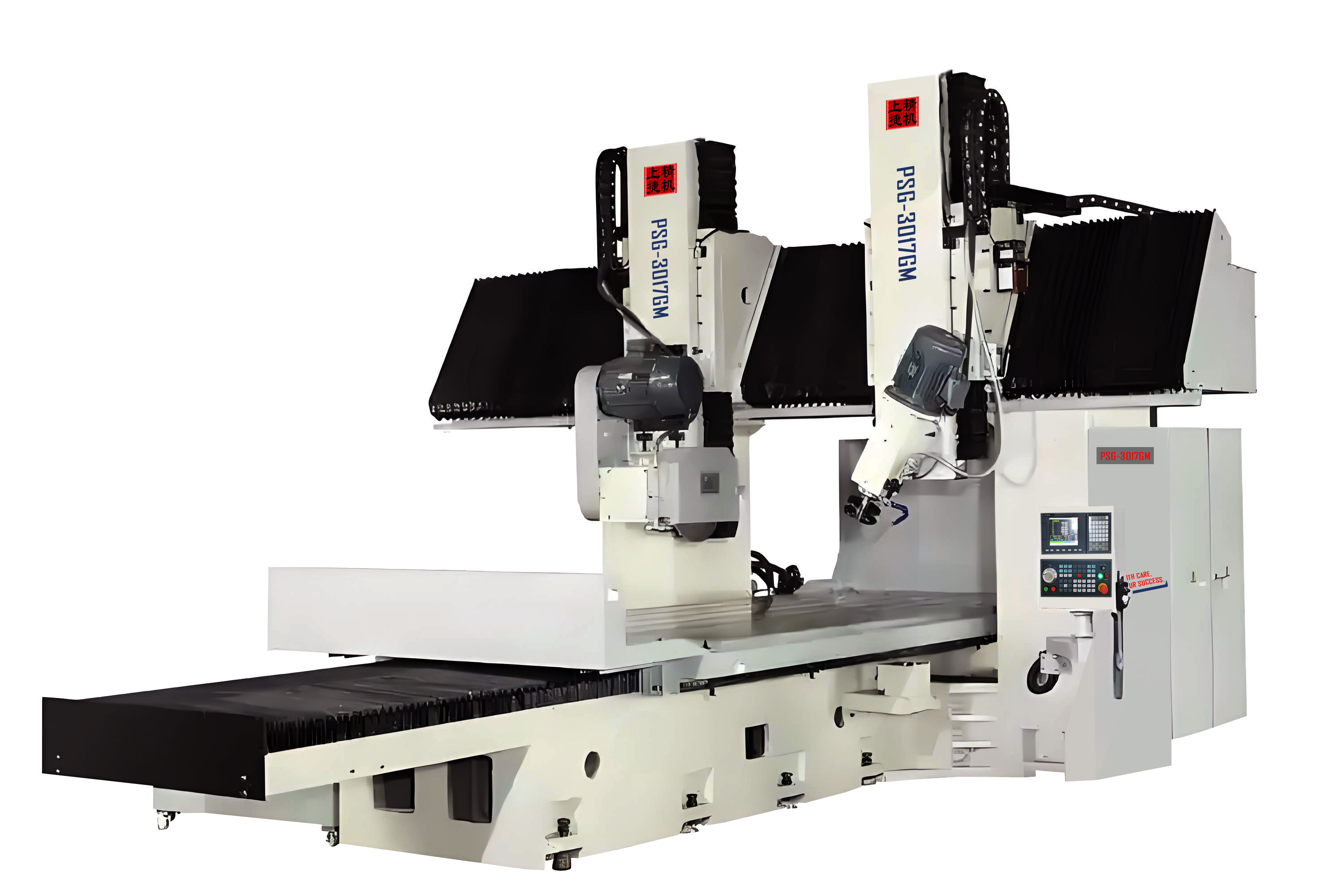

Name: PSG/GM Series - Precision Surface Grinding Machine
Brand: Hubei Shangjie Precision Machinery Manufacturing/CNC Lathe/CNC Turning
Availability: InStock
Rating: 5 (1 reviews)

Description

Machine castings are made of HT300 high-grade material and undergo vibration stress relief and secondary tempering processes to eliminate internal stress. They feature high strength, strong resistance to deformation, and excellent shock absorption capacity, ensuring that the machine tool maintains stable precision over long-term use.

■ Specifications

	PSG-2012GM	PSG-3012GM	PSG-4012GM	PSG-2017GM	PSG-3017GM	PSG-4017GM	PSG-3021GM	PSG-4021GM
工作台尺寸 mm Workbench size	2000x1000	3000x1000	4000x1000	2000x1400	3000x1400	4000x1400	3000x1600	4000x1600
主轴中心至工作台最大距离 mm Max. distance from the spindlecenter to the worktable	150-850	150-850	150-850	150-850	150-850	150-850	200-1200	200-1200
工作台最大承重 kg Max. load capacity of the workbench	2000	3000	4000	3500	5000	6500	6500	8000
工作台T型槽(尺寸*间距)Workbench T-slot(number - size x pitch)	7-22x160mm	7-22x160mm	7-22x160mm	8-22x160mm	8-22x160mm	8-22x160mm	9-22x160mm	9-22x160mm
龙门有效宽度 mm Gantry Effective Width	1200	1200	1200	1700	1700	1700	2100	2100
X轴行程 mm X-axis travel distance	2100	3100	4100	2100	3100	4100	3100	4100
Y轴行程 mm Y-axis travel distance	1300	1300	1300	1800	1800	1800	2200	2200
Z轴行程 mm Z-axis travel distance	700	700	700	700	700	700	1000	1000
X,Y,Z快移速度 X,Y,Z fast movement speed	20/25/20 m/min			20/25/20 m/min			15/20/15 m/min
主砂轮尺寸 Wheel dimension	510x100x203			510x100x203			610x100x203
侧磨头砂轮尺寸 mm Side grinding wheel size	※250x25x75			※250x25x75			※400x60x127
机床外型尺寸(长x宽x高) cm Machine size (L x W x H)	530x290x340	630x290x340	730x290x340	830x400x500	940x400x500	1100x400x500	950x450x500	1200x450x500
标准机床重量 Standard weight	13 T	16 T	21 T	18 T	21 T	24 T	28 T	31 T

	PSG-6021GM	PSG-4026GM	PSG-5026GM	PSG-6026GM	PSG-8026GM	PSG-5032GM	PSG-6032GM	PSG-8032GM
工作台尺寸 mm Workbench size	6000x1600	4000x2100	5000x2100	6000x2100	8000x2100	5000x2600	6000x2600	8000x2600
主轴中心至工作台最大距离 mm Max. distance from the spindlecenter to the worktable	200-1200	200-1200	200-1200	200-1200	200-1200	200-1300	200-1300	200-1300
工作台最大承重 kg Max. load capacity of theworkbench	12000	10000	12000	15000	18000	16000	22000	30000
工作台T型槽(尺寸*间距) Workbench T-slot(number - size x pitch)	9-22x160mm	9-22x200mm	9-22x200mm	9-22x200mm	9-22x200mm	12-28x200mm	12-28x200mm	12-28x200mm
龙门有效宽度 mm Gantry Effective Width	2100	2600	2600	2600	2600	3200	3200	3200
X轴行程 mm X-axis travel distance	6100	4100	5100	6100	8100	5100	6100	8100
Y轴行程 mm Y-axis travel distance	2200	2700	2700	2700	2700	3300	3300	3300
Z轴行程 mm Z-axis travel distance	1000	1000	1000	1000	1000	1100	1100	1100
X,Y,Z快移速度 X,Y,Z fast movement speed	15/20/15 m/min					15/20/15 m/min
主砂轮尺寸 Wheel dimension	610x100x203					610x100x203
侧磨头砂轮尺寸 mm Side grinding wheel size	※400x60x127					※400x60x127
机床外型尺寸(长x宽x高) cm Machine size (L x W x H)	1400x450x500	1200x500x500	1350x500x500	1400x500x500	1650x500x500	1350x580x530	1400x580x530	1650x580x530
标准机床重量 Standard weight	41 T	36 T	40 T	44 T	55 T	49 T	54 T	68 T

■ Machine Tool Configuration

The hydrostatic spindle has the advantages of high rotational accuracy, good rigidity, long service life and low noise. It can grind workpieces with high precision and high efficiency, and is an essential configuration for precision grinding machines.

The entire Adopting Japanese THK, German INA, Rexroth and Taiwan PMI SP grade ultra-precision linear guides.

The entire series of grinding machines adopt C3 grade high-precision ground ball screws, which operate smoothly without shock, have low wear and a long service life, effectively enhancing the working accuracy and stability of the machine tools.

The base of the electromagnetic chuck adopts steel plate milling cavity technology and all-copper coils. Compared with cast steel bases, it features a smaller volume and stronger magnetic force. The magnetic force is evenly distributed and adjustable, making it suitable for various heavy-duty and precision machining. It can quickly clamp and release workpieces, significantly enhancing production efficiency.

Unmatched Precision and Rigidity
The Precision gantry guide rail grinding machine from Shanjmc PSG/GM Series is engineered to redefine industrial grinding standards. With its robust gantry structure, featuring enlarged columns and crossbeam box support, this surface grinding machine ensures exceptional rigidity across its entire framework. Crafted from HT300 high-grade material, the machine's castings boast high strength and resistance to deformation, providing excellent shock absorption. This precision grinding machine achieves remarkable grinding accuracy within a 3-meter travel, maintaining precision within 0.008mm. The Z-axis offers a minimum feed rate of 0.001mm, making it a top choice for grinding machine manufacturers seeking reliable and consistent performance. Whether you're looking for a grinding machine for sale or a precision surface grinding machine for demanding applications, this model delivers unparalleled precision and durability.

Built for Precision and Performance
Designed for industrial applications, the Shanjmc PSG/GM Series precision surface grinding machine is equipped with advanced features that enhance operational reliability and user experience. The hydrostatic spindle offers high rotational accuracy, good rigidity, and low noise, essential for high-efficiency grinding. The machine incorporates Japanese THK, German INA, Rexroth, and Taiwan PMI SP grade ultra-precision linear guides, ensuring smooth operation and long service life. The C3 grade high-precision ground ball screws further enhance the working accuracy and stability of the machine tools. This surface grinding machine is ideal for grinding machine manufacturers who prioritize quality and performance in their equipment. With its ability to handle heavy-duty and precision machining, this precision grinding machine is a valuable asset for any industrial setting.

Scalable Design to Meet Growing Demand
The Shanjmc PSG/GM Series precision surface grinding machine is not only built for current needs but also designed to adapt to future demands. Its scalable design accommodates various workbench sizes and load capacities, making it suitable for a wide range of applications. The electromagnetic chuck base, featuring steel plate milling cavity technology and all-copper coils, provides adjustable magnetic force for quick clamping and release of workpieces, significantly enhancing production efficiency. This surface grinding machine is perfect for grinding machine manufacturers looking to expand their capabilities and meet growing market demands. Available for bulk ordering, this grinding machine for sale offers long-term value and reliability, ensuring stable precision over extended use. Whether you're upgrading your equipment or expanding your operations, this precision grinding machine is a strategic investment for sustained industrial success.

Product Advantages

1. Unmatched Precision and Rigidity
The Shanjmc PSG/GM Series precision surface grinding machine is crafted from HT300 high-grade material, ensuring exceptional rigidity and resistance to deformation. This surface grinding machine achieves grinding accuracy within 0.008mm over a 3-meter travel, making it ideal for grinding machine manufacturers seeking reliable performance. Its robust gantry structure with enlarged columns provides excellent shock absorption, ensuring stable precision over long-term use.

2. Advanced Operational Features
Equipped with a hydrostatic spindle, the Shanjmc PSG/GM Series precision grinding machine offers high rotational accuracy and low noise, essential for high-efficiency grinding. The integration of Japanese THK, German INA, Rexroth, and Taiwan PMI SP grade ultra-precision linear guides ensures smooth operation and long service life. This surface grinding machine is perfect for grinding machine manufacturers who prioritize quality and performance.

3. Scalable Design for Versatility
The Shanjmc PSG/GM Series precision surface grinding machine is designed to adapt to future demands with its scalable design, accommodating various workbench sizes and load capacities. This grinding machine for sale is suitable for a wide range of applications, making it a strategic investment for grinding machine manufacturers looking to expand their capabilities and meet growing market demands.

4. Enhanced Production Efficiency
Featuring an electromagnetic chuck base with steel plate milling cavity technology and all-copper coils, this precision grinding machine provides adjustable magnetic force for quick clamping and release of workpieces. This significantly enhances production efficiency, making the Shanjmc PSG/GM Series surface grinding machine a valuable asset for grinding machine manufacturers aiming for increased productivity.

5. Long-Term Value and Reliability
Available for bulk ordering, the Shanjmc PSG/GM Series precision surface grinding machine offers long-term value and reliability. Its durable construction ensures stable precision over extended use, making it an ideal choice for grinding machine manufacturers seeking a dependable grinding machine for sale that supports sustained industrial success.

About Us

Shanjmc is a leader in precision machinery manufacturing, dedicated to advancing industrial standards with our innovative solutions. Our PSG/GM Series precision surface grinding machines are crafted from HT300 high-grade material, ensuring high strength, resistance to deformation, and excellent shock absorption. We prioritize quality and performance, equipping our machines with advanced features like hydrostatic spindles and ultra-precision linear guides from renowned brands such as Japanese THK, German INA, and Taiwan PMI. Our scalable designs accommodate various workbench sizes and load capacities, making them ideal for diverse industrial applications. At Shanjmc, we are committed to providing reliable, high-performance equipment that meets the growing demands of grinding machine manufacturers. Our machines are available for bulk ordering, offering long-term value and stable precision over extended use. Whether you're looking to upgrade your equipment or expand your operations, Shanjmc's precision grinding machines are a strategic investment for sustained industrial success.

Contact Shanjmc today to upgrade your industrial operations with our precision surface grinding machine. Let’s achieve unmatched precision and performance!

FAQ

Who are we?
We are Hubei Shangjie Precision Machinery Manufacturing Co., Ltd., a leading manufacturer of precision surface grinding machines designed for industrial applications. Our PSG/GM Series machines are renowned for their high rigidity and precision, crafted from HT300 high-grade material to ensure stable performance over long-term use.

How can we guarantee quality?
We guarantee quality through rigorous manufacturing processes and the use of premium materials like HT300 high-grade castings. Our machines undergo vibration stress relief and secondary tempering processes to eliminate internal stress, ensuring consistent precision and durability.

What can you buy from us?
You can purchase a wide range of industrial equipment from us, including precision surface grinding machines, CNC turning centers, machining centers, and tailor-made automation solutions. Our products are designed to meet the demanding needs of professional and bulk ordering applications.

Why should you buy from us not from other suppliers?
Choosing Shanjmc means investing in unmatched precision and rigidity. Our machines feature advanced components like hydrostatic spindles and ultra-precision linear guides, ensuring high efficiency and long service life. We offer scalable designs to adapt to future demands, providing long-term value and reliability.

What services can we provide?
We offer comprehensive services including product customization, bulk ordering options, and tailor-made automation solutions. Our team is dedicated to enhancing your production efficiency and expanding your operational capabilities.

Can I customize this product for my business?
Yes, our precision surface grinding machines can be customized to meet your specific business needs. We offer scalable designs that accommodate various workbench sizes and load capacities, ensuring that our machines fit seamlessly into your production environment.

Do you offer wholesale pricing?
Absolutely, we provide competitive wholesale pricing for bulk orders. Our precision surface grinding machines are ideal for grinding machine manufacturers looking to expand their capabilities and meet growing market demands, offering long-term value and reliability.
